PARK 107M PARK 107M (2005) [13-2927-28]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PARK 107M (2005) [13-2927-28]

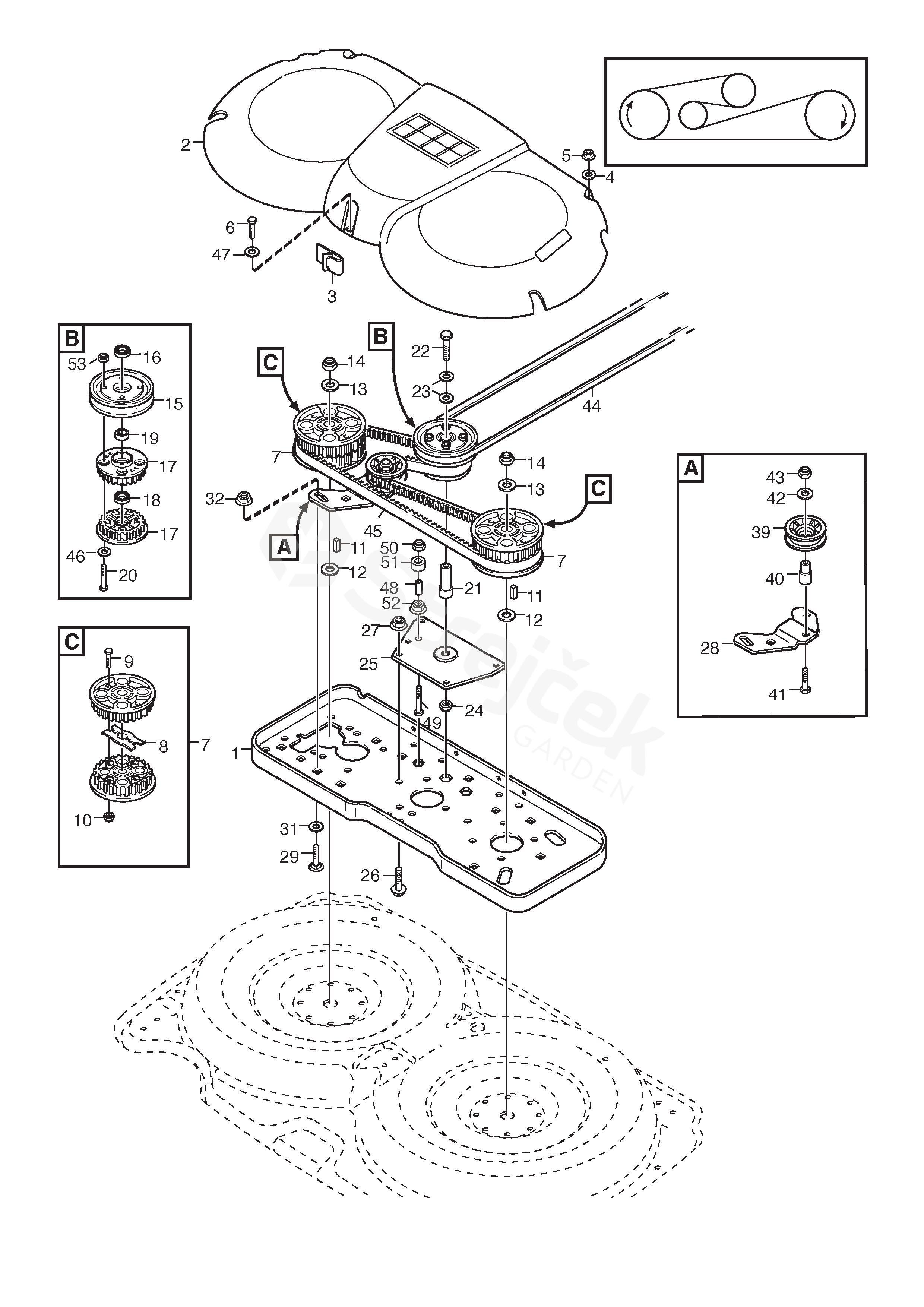

1	Transmission Plate	1134-4875-01
2	Transmission Cover (107M)	1134-4865-01
3	Belt Guide	1134-3632-01
4	Washer	9699-0028-02
5	Nut	9747-0831-02
6	Screw	9942-0612-16
7	Toothed Belt Pulley	1134-3679-01
8	Reinforcement	1134-3597-01
9	Screw	9997-0625-16
10	Lock Nut	9747-0631-02
11	Key L = 25 mm	1134-0323-01
12	Washer	9699-0104-02
13	Washer	9699-0121-02
14	Nut	9712-1231-02
15	Belt Pulley	1134-5019-01
16	Ball Bearing	9549-0019-00
17	Toothed Pulley	1134-4321-01
19	Spacer	1134-3725-01
20	Screw	9997-0660-12
21	Shaft	1134-4314-01
22	Screw	9997-1065-12
23	Washer	9699-0030-02
24	Nut	9712-1031-02
25	Plate	1134-4667-02
26	Screw	9959-0816-16
27	Nut	9739-0831-22
28	Tension Arm	1134-4885-01
29	Screw	9897-0825-16
31	Washer	9699-0036-02
39	Tension Roller	1134-4686-01
40	Shaft	1134-4316-03
41	Screw	9997-1040-12
43	Nut	1134-4775-01
44	Drive Belt Replaced by Service Code: 1134-9067-01	9585-0126-01
45	Toothed Belt	9585-0132-01
46	Washer	9699-0025-02
47	Washer	9699-0060-02
48	Spacer	1134-1565-04
49	Screw	9997-0870-16
51	Spacer	1134-3113-01
