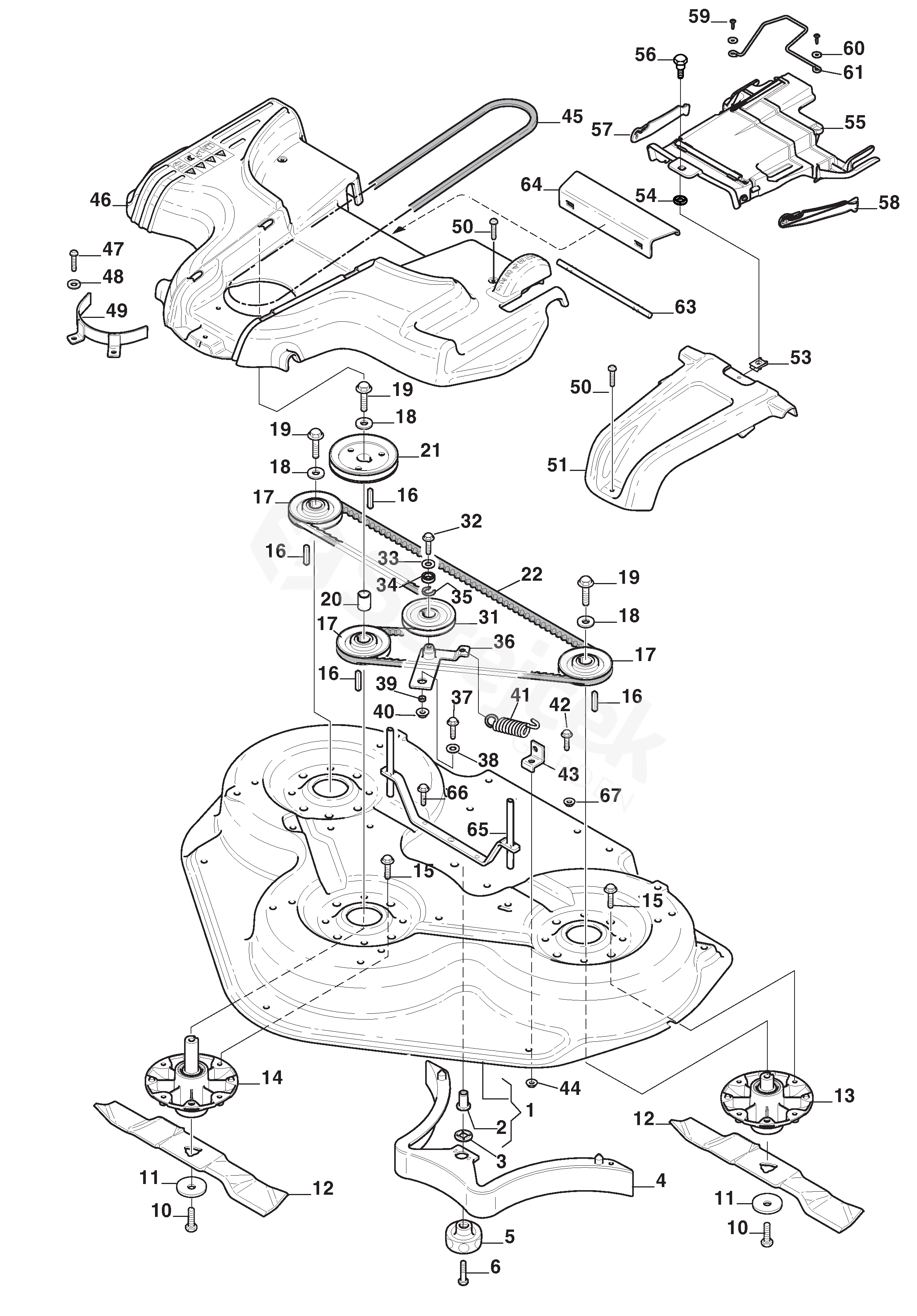

Spare parts - Partlist - Deck Park 110 Combi Pro El Deck Park 110 Combi PRO EL (2015) [13-2932-45] - Transmission and Blades

Everything for your machines

Deck Park 110 Combi Pro El Deck Park 110 Combi PRO EL (2015) [13-2932-45]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Deck Park 110 Combi PRO EL (2015) [13-2932-45]

1	Mower Deck Casing, Yellow Inkl. pos 24	1134-5901-01
2	Nut	1134-5595-01
3	Crown Fastener	112604899/0
4	Mulching Plug	1134-5966-01
5	Yellow Knob	322399804/1
6	Screw	112691115/0
10	Screw	112692395/1
11	Washer	1134-6211-01
12	Blade Bar Assy (110 Combi) Sats 3 st/kit of 3	1134-9124-01
13	Bearing Box Assy	1134-5831-01
14	Bearing Box Assy	1134-5831-02
15	Screw	9945-0825-16
16	Key 6 x 6 x 25 mm	9600-0171-01
17	Pulley Ø = 106 mm	1137-0015-01
18	Washer	1134-5406-01
19	Screw	112692395/1
20	Spacer L = 20 mm	1134-5400-03
21	Pulley Ø = 140 mm	1137-0016-01
22	V-Belt 9585-0067-00	1134-9041-01
31	Tension Roller Assy Inkl. 15,20-21,23-24	1134-7611-01
32	Screw	9945-0816-16
33	Washer	9699-0056-02
34	Bearing	9549-0061-01
35	Circlip	9651-0035-04
37	Screw	9959-0820-16
38	Washer	9699-0109-02
39	Spacer	1134-7618-01
40	Nut	112154220/0
41	Spring	1134-0327-00
42	Screw	9959-0820-16
43	Spring	1134-5415-01
44	Nut	112154220/0
45	V-Belt 9585-0201-01 2WD	1134-9151-01
46	Belt cover	1137-0267-03
47	Screw	9893-0616-16
48	Washer	9699-0060-02
49	Belt Guide	1134-6017-01
50	Screw	9893-0616-16
51	Cover-Yellow	1137-0269-03
53	Nut	1134-4620-02
54	Starlock	9675-0016-02
55	Belt cover	337060009/0
56	Screw	1134-0240-00
57	Support, Right	337785031/0
58	Support, Left	337785033/0
59	Screw	112728699/0
60	Washer	112521460/0
61	Belt Guide	137294102/0
63	Pin	1137-1090-01
64	Wear Protection	1134-6103-01
65	Bracket	1137-1103-01
66	Screw	112800815/0
67	Nut	112154220/0
