DECK PARK 110 C PRO DECK PARK 110 C PRO (2011) [13-2932-44]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

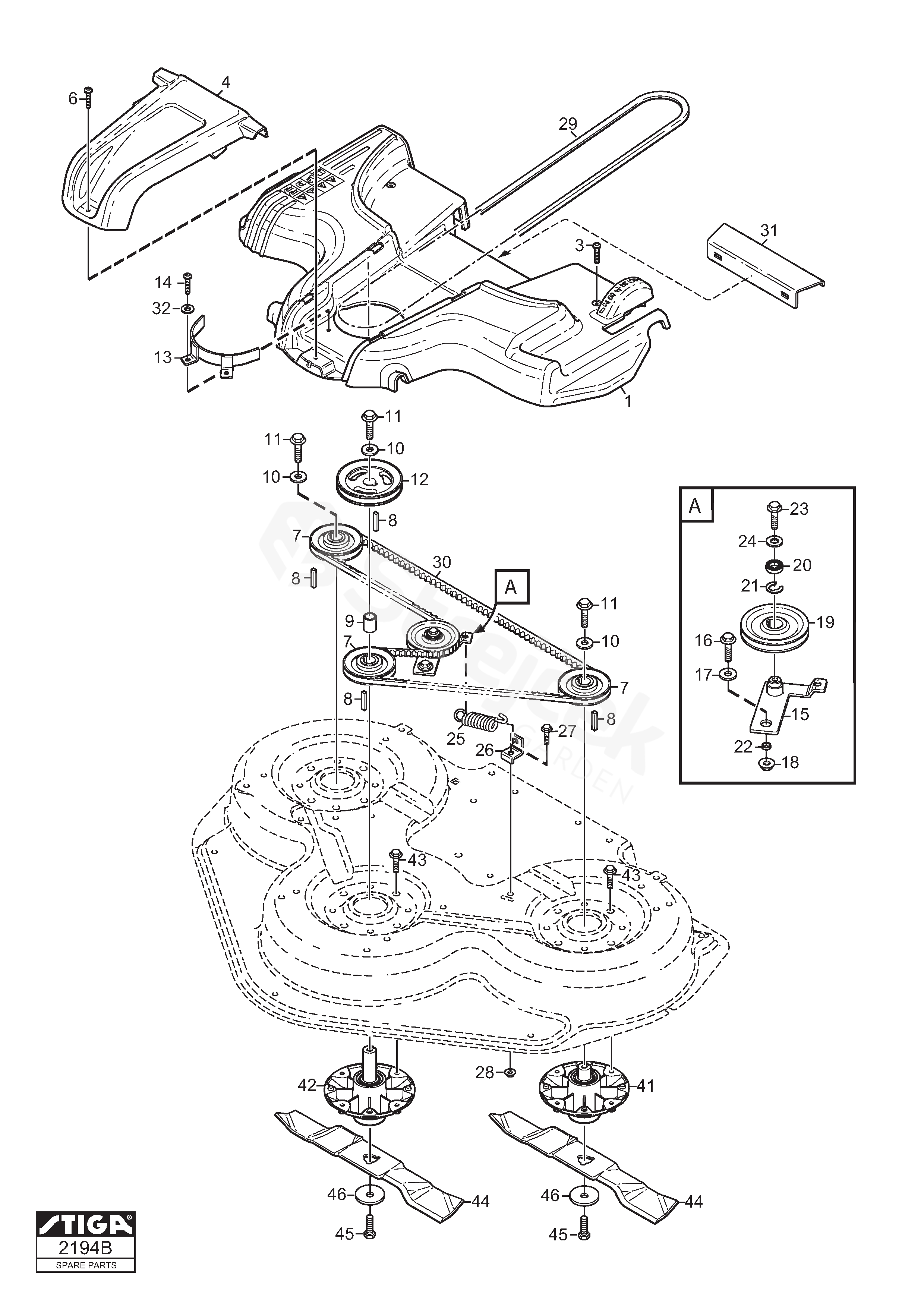

Other parts For DECK PARK 110 C PRO (2011) [13-2932-44]

1	Transmission Cover-Grey Manual	1137-0266-01
4	Cover-Yellow	1137-0269-01
7	Pulley Ï = 106 mm	1137-0015-01
8	Key 6 x 6 x 25 mm	9600-0171-01
9	Spacer L = 20 mm	1134-5400-03
10	Washer	1134-5406-01
11	Screw	9997-1060-12
12	Pulley Ï = 140 mm	1137-0016-01
13	Belt Guide	1134-6017-01
14	Screw	9893-0616-16
15	Tension Arm	1134-0325-04
16	Screw	9959-0816-16
17	Washer	9699-0109-02
18	Nut	9739-0831-22
19	Tension Roller Assy Inkl. 15,20-21,23-24	1134-7611-01
21	Circlip	9651-0035-04
22	Spacer	1134-7618-01
23	Screw	9945-0816-16
24	Washer	9699-0056-02
25	Spring	1134-0327-00
26	Spring	1134-5415-01
29	V-Belt Replaced by Service Code: 1134-9151-01	9585-0201-01
30	V-Belt 9585-0067-00	1134-9041-01
31	Wear Protection	1134-6103-01
32	Washer	9699-0060-02
41	Bearing Box Assy	1134-5831-01
42	Bearing Box Assy	1134-5831-02
43	Screw	9945-0825-16
44	Blade Bar Assy (110 Combi) Sats 3 st/kit of 3	1134-9124-01
46	Washer	1134-6211-01
