Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Front Mowers
>
PARK 121M PARK 121M (1997) [13-2915-20]
>

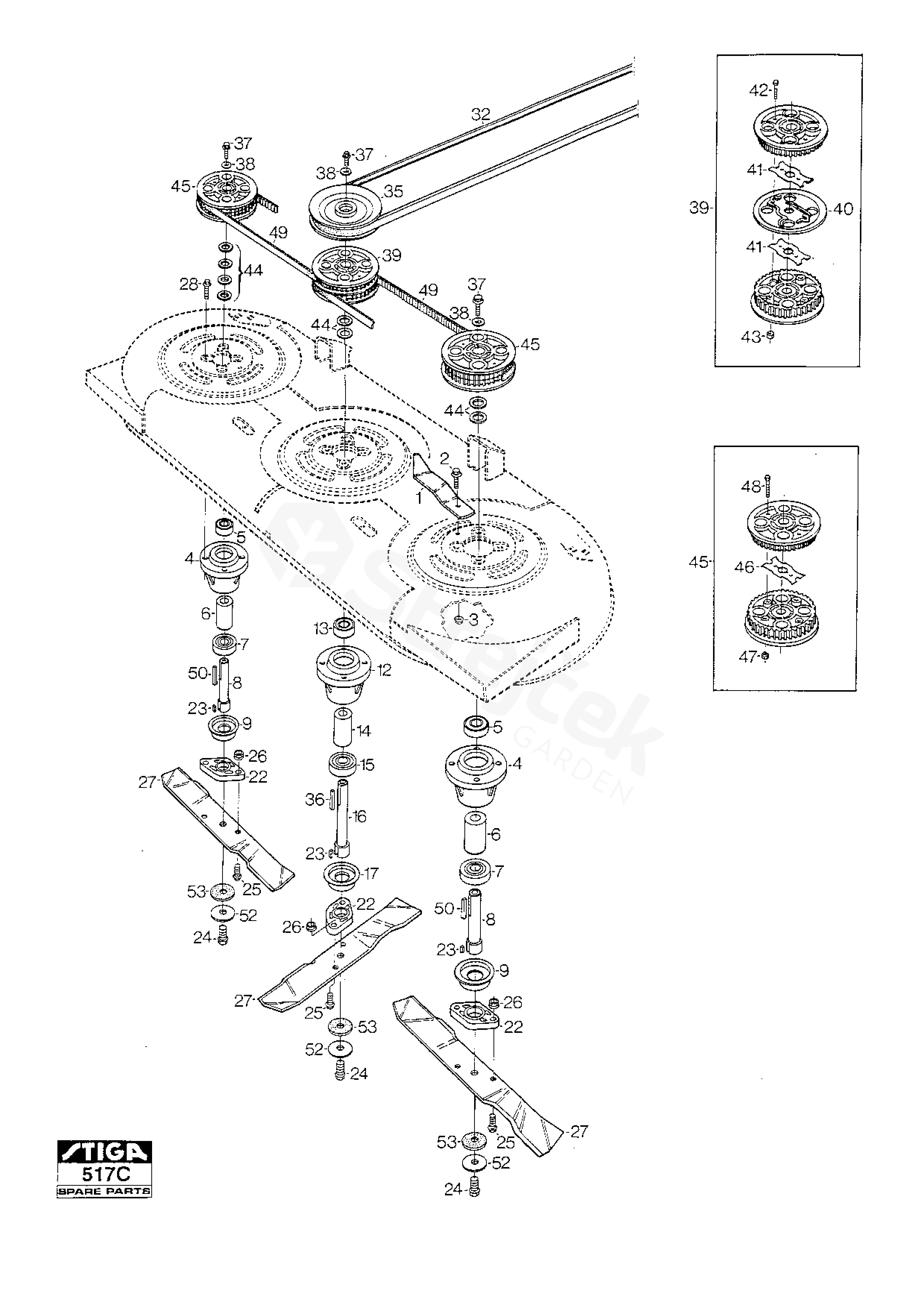

Mower Deck 121M Blades
Back to
PARK 121M
PARK 121M (1997) [13-2915-20]
Mower Deck 121M Blades
PARK 121M
PARK 121M (1997) [13-2915-20]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK 121M (1997) [13-2915-20]
1
Belt Tensioner
1134-3014-01
2
Screw
9959-0820-16
3
Nut
9739-0831-22
4
Bearing Box Assy
1134-3696-01
5
Ball Bearing
9549-0019-00
6
Spacer
1134-0051-05
7
Ball Bearing
9549-0020-00
8
Blade Shaft
1134-3695-01
9
Washer
1134-0400-01
12
Bearing Box Assy
1134-3696-02
13
Ball Bearing
9549-0019-00
14
Spacer
1134-0051-05
15
Ball Bearing
9549-0020-00
16
Blade Shaft
1134-3695-02
17
Washer
1134-0400-01
22
Blade Holder
Sats 3 st/kit of 3
1134-9000-01
23
Key
9600-0150-01
24
Screw
9991-1024-19
25
Screw
9959-0830-16
26
Nut
9739-0831-22
27
Mulching Blade
Sats 3 st/kit of 3
1134-9039-01
28
Screw
9942-0816-16
32
V-Belt
= 9585-0081-00
1134-9045-01
35
Belt Pulley
1134-3419-01
36
Key
9600-0150-03
37
Screw
9958-0820-16
38
Washer
9699-0056-02
39
Toothed Belt Pulley
1134-3679-02
40
Plate-Belt Pulley
1134-3598-01
41
Reinforcement
1134-3597-01
42
Screw
9997-0630-12
43
Lock Nut
9747-0631-02
44
Washer
9699-0104-02
45
Toothed Belt Pulley
1134-3679-01
46
Reinforcement
1134-3597-01
47
Lock Nut
9747-0631-02
48
Screw
9997-0625-16
49
Toothed Belt
9585-0085-00
50
Key
9600-0150-02
52
Washer
9699-0109-02
53
Fibre Washer
1134-3544-01
22A
Blade Holder
1134-2082-01
