DECK PARK 125 C PRO EL /2+4W DECK PARK 125 C PRO EL /2+4WD (ANSI) (2011)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

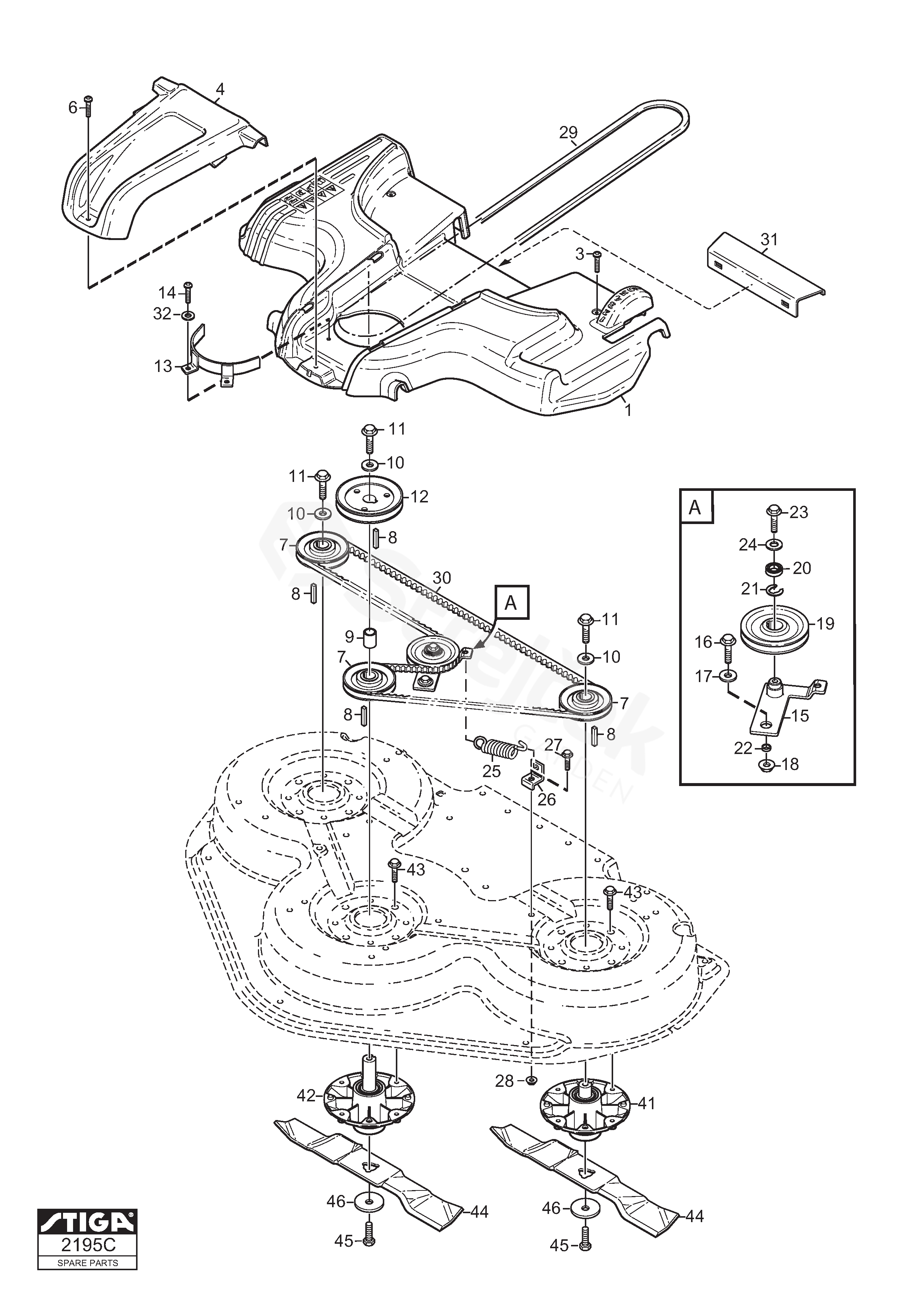

Other parts For DECK PARK 125 C PRO EL /2+4WD (ANSI) (2011)

1	Transmission Cover-Grey	1137-0267-01
4	Cover-Yellow	1137-0269-01
7	Pulley Ø = 106 mm	1137-0015-01
8	Key 6 x 6 x 25 mm	9600-0171-01
9	Spacer L = 20 mm	1134-5400-03
10	Washer	1134-5406-01
11	Screw	9997-1060-12
12	Pulley Ø = 150 mm	1137-0017-01
13	Belt Guide	1134-6017-01
14	Screw	9893-0616-16
15	Tension Arm	1134-0325-04
16	Screw	9959-0816-16
17	Washer	9699-0109-02
18	Nut	9739-0831-22
19	Tension Roller Assy Inkl. 15,20-21,23-24	1134-7611-01
20	Bearing	9549-0061-01
21	Circlip	9651-0035-04
22	Spacer	1134-7618-01
23	Screw	9945-0816-16
24	Washer	9699-0056-02
25	Spring	1134-0327-00
26	Spring	1134-5415-01
29	V-Belt Replaced by Service Code: 1134-9152-01	9585-0202-01
30	Drive Belt 9585-0142-01	1134-9087-01
31	Wear Protection	1134-6103-01
32	Washer	9699-0060-02
41	Bearing Box Assy	1134-5831-01
42	Bearing Box Assy	1134-5831-02
43	Screw	9945-0825-16
44	Blade Bar Assy (125 Combi) Sats 3 st/kit of 3	1134-9125-01
46	Washer	1134-6211-01
