STIGA
>
Front Mowers
>
Deck Park 125 Combi Pro Deck Park 125 Combi Pro (2013)
>
Transmission
Back to
Deck Park 125 Combi Pro
Deck Park 125 Combi Pro (2013)

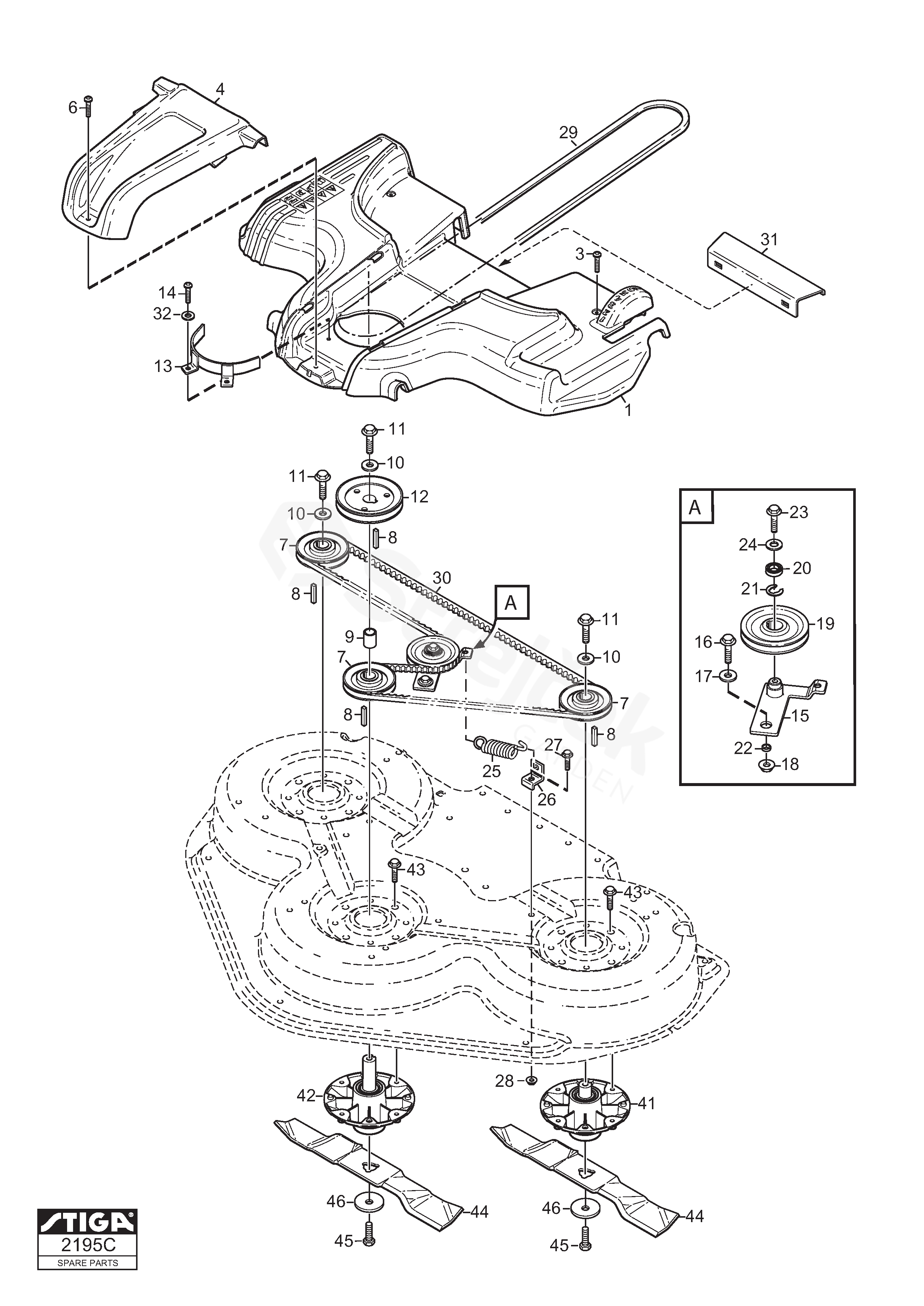

Transmission
Deck Park 125 Combi Pro
Deck Park 125 Combi Pro (2013)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Deck Park 125 Combi Pro (2013)
1
Transmission Cover-Grey
1137-0267-01
4
Cover-Yellow
1137-0269-01
7
Pulley
Ø = 106 mm
1137-0015-01
8
Key
6 x 6 x 25 mm
9600-0171-01
9
Spacer
L = 20 mm
1134-5400-03
10
Washer
1134-5406-01
11
Screw
9997-1060-12
12
Pulley
Ø = 150 mm
1137-0017-01
13
Belt Guide
1134-6017-01
14
Screw
9893-0616-16
15
Tension Arm
1134-0325-04
16
Screw
9959-0816-16
17
Washer
9699-0109-02
18
Nut
9739-0831-22
19
Tension Roller Assy
Inkl. 15,20-21,23-24
1134-7611-01
20
Bearing
9549-0061-01
21
Circlip
9651-0035-04
22
Spacer
1134-7618-01
23
Screw
9945-0816-16
24
Washer
9699-0056-02
25
Spring
1134-0327-00
26
Spring
1134-5415-01
29
Drive Belt
Replaced by Service Code: 1134-9103-01
9585-0156-01
30
Drive Belt
Replaced by Service Code: 1134-9087-01
9585-0142-00
31
Wear Protection
1134-6103-01
32
Washer
9699-0060-02
41
Bearing Box Assy
1134-5831-01
42
Bearing Box Assy
1134-5831-02
43
Screw
9945-0825-16
44
Blade Bar Assy (125 Combi)
Sats 3 st/kit of 3
1134-9125-01
46
Washer
1134-6211-01
