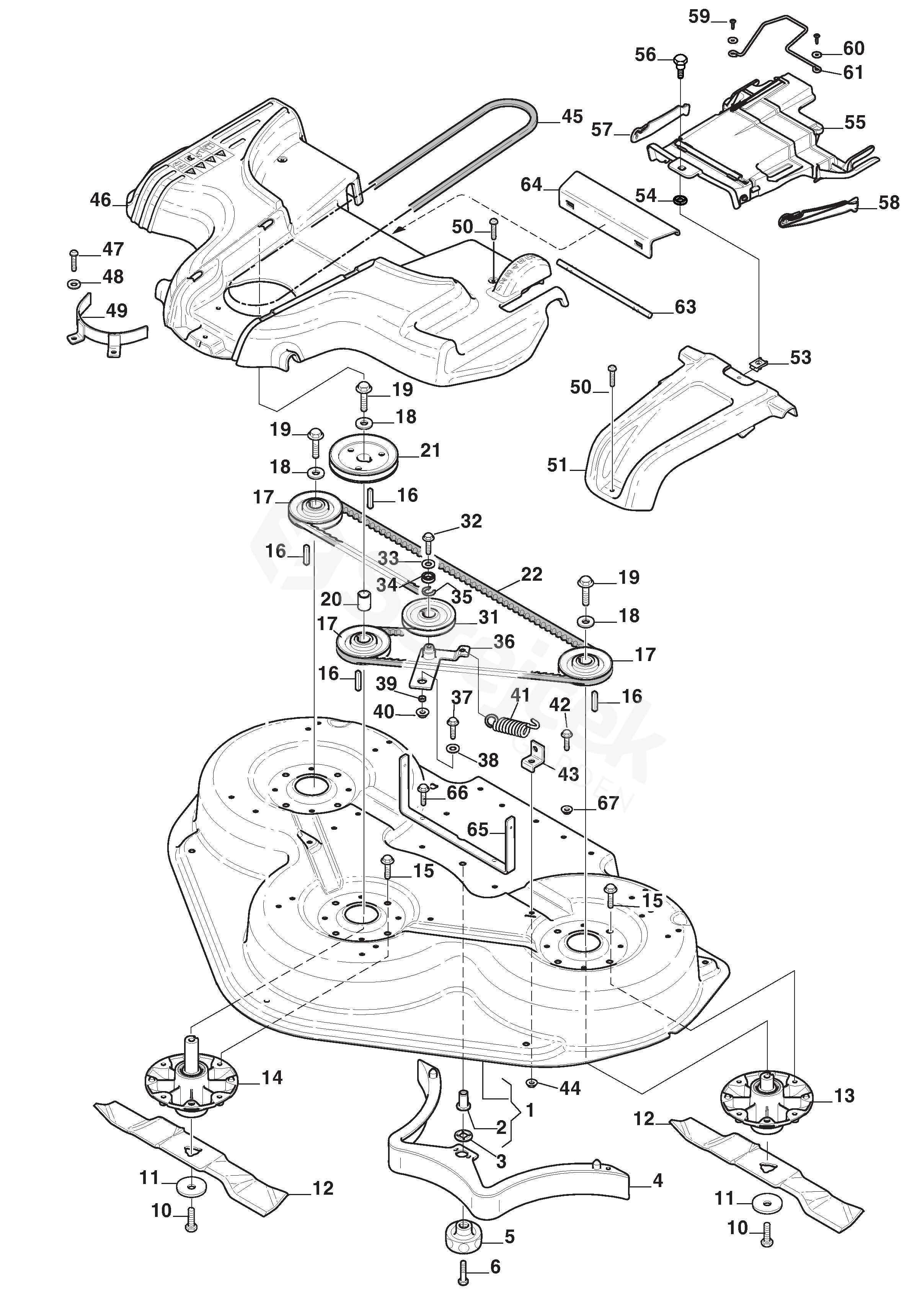

Spare parts - Partlist - Deck Park 125 Combi Pro El Deck Park 125 Combi PRO EL (2015) [2D6312521/S15] - Transmission and Blades

Everything for your machines

Deck Park 125 Combi Pro El Deck Park 125 Combi PRO EL (2015) [2D6312521/S15]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Deck Park 125 Combi PRO EL (2015) [2D6312521/S15]

1	Casing Inkl. pos 24	1134-7750-01
2	Nut	1134-5595-01
3	Crown Fastener	112604899/0
4	Mulch Plug-Black	1134-5409-02
5	Yellow Knob	322399804/1
6	Screw	112691115/0
10	Screw	112692395/1
11	Washer	1134-6211-01
12	Blade Bar Assy (125 Combi) Sats 3 st/kit of 3	1134-9125-01
13	Bearing Box Assy	1134-5831-01
14	Bearing Box Assy	1134-5831-02
15	Screw	9945-0825-16
16	Key 6 x 6 x 25 mm	9600-0171-01
17	Pulley Ø = 106 mm	1137-0015-01
18	Washer	1134-5406-01
20	Spacer L = 20 mm	1134-5400-03
21	Pulley Ø = 150 mm	1137-0017-01
22	Drive Belt 9585-0142-01	1134-9087-01
31	Tension Roller Assy Inkl. 15,20-21,23-24	1134-7611-01
32	Screw	9945-0816-16
33	Washer	9699-0056-02
34	Bearing	9549-0061-01
35	Circlip	9651-0035-04
37	Screw	9959-0820-16
38	Washer	9699-0109-02
39	Spacer	1134-7618-01
40	Nut	112154220/0
41	Spring	1134-0327-00
43	Spring	1134-5415-01
45	Drive Belt 9585-0156-01 4WD	1134-9103-01
46	Belt cover	337060013/0
47	Screw	9893-0616-16
48	Washer	9699-0060-02
49	Belt Guide	1134-6017-01
51	Cover-Yellow	1137-0269-03
53	Nut	1134-4620-02
54	Starlock	9675-0016-02
55	Belt cover	337060009/0
56	Screw	1134-0240-00
57	Support, Right	337785031/0
58	Support, Left	337785033/0
59	Screw	112728699/0
60	Washer	112521460/0
61	Belt Guide	137294102/0
63	Pin	1137-1090-01
64	Wear Protection	1134-6103-01
65	Bracket	1137-1080-01
66	Screw	112800815/0
