PARK 125 COMBI PRO PARK 125 COMBI PRO (2004) [13-2937-27]
>
Mower Deck 125 Combi Pro Transmission
Back to
PARK 125 COMBI PRO
PARK 125 COMBI PRO (2004) [13-2937-27]
Mower Deck 125 Combi Pro Transmission
PARK 125 COMBI PRO
PARK 125 COMBI PRO (2004) [13-2937-27]

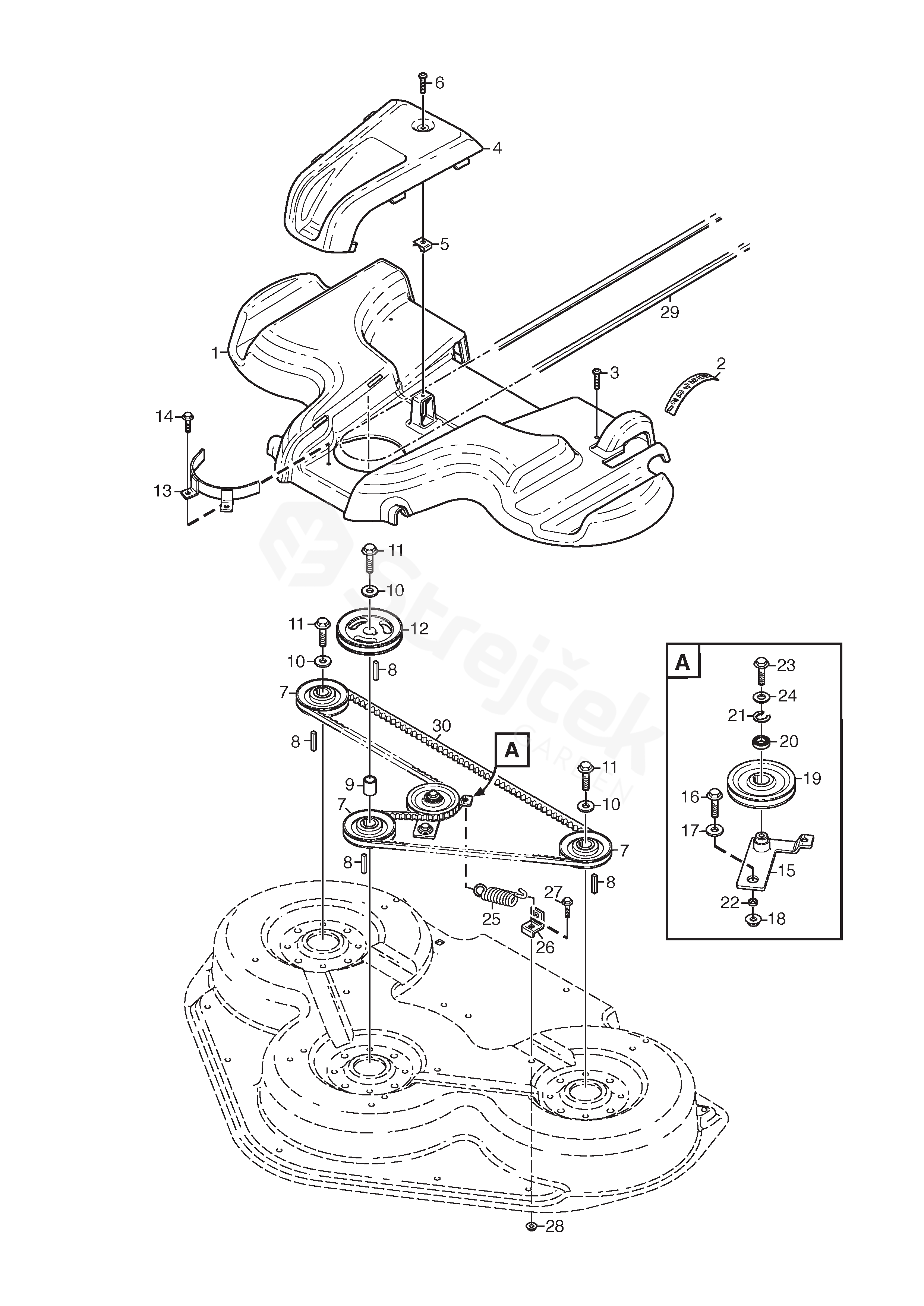

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK 125 COMBI PRO (2004) [13-2937-27]
1
Transmission Cover-El
1134-5557-01
2
Label
1134-5505-01
3
Screw
9893-0616-16
4
Cover
1134-5397-01
5
Clips
1134-4176-01
7
Belt Pulley
1134-5404-01
8
Key
6 x 6 x 25 mm
9600-0171-01
9
Spacer
L = 20 mm
1134-5400-03
10
Washer
1134-5406-01
11
Screw
9997-1060-12
12
Belt Pulley
1134-5405-01
13
Belt Guide
1134-5416-01
14
Screw
9942-0612-16
15
Tension Arm
1134-0325-04
16
Screw
9958-0820-16
17
Washer
9699-0109-02
18
Nut
9739-0831-22
19
Tensioning Roller Compl
1134-0698-00
20
Ball Bearing
9549-0017-00
21
Circlip
9651-0035-04
22
Spacer
1131-1684-01
23
Screw
9945-0816-16
24
Washer
9699-0056-02
25
Spring
1134-0327-00
26
Spring
1134-5415-01
27
Screw
9959-0816-16
29
Drive Belt
9441
1134-9088-01
30
Drive Belt
9442
1134-9087-01
