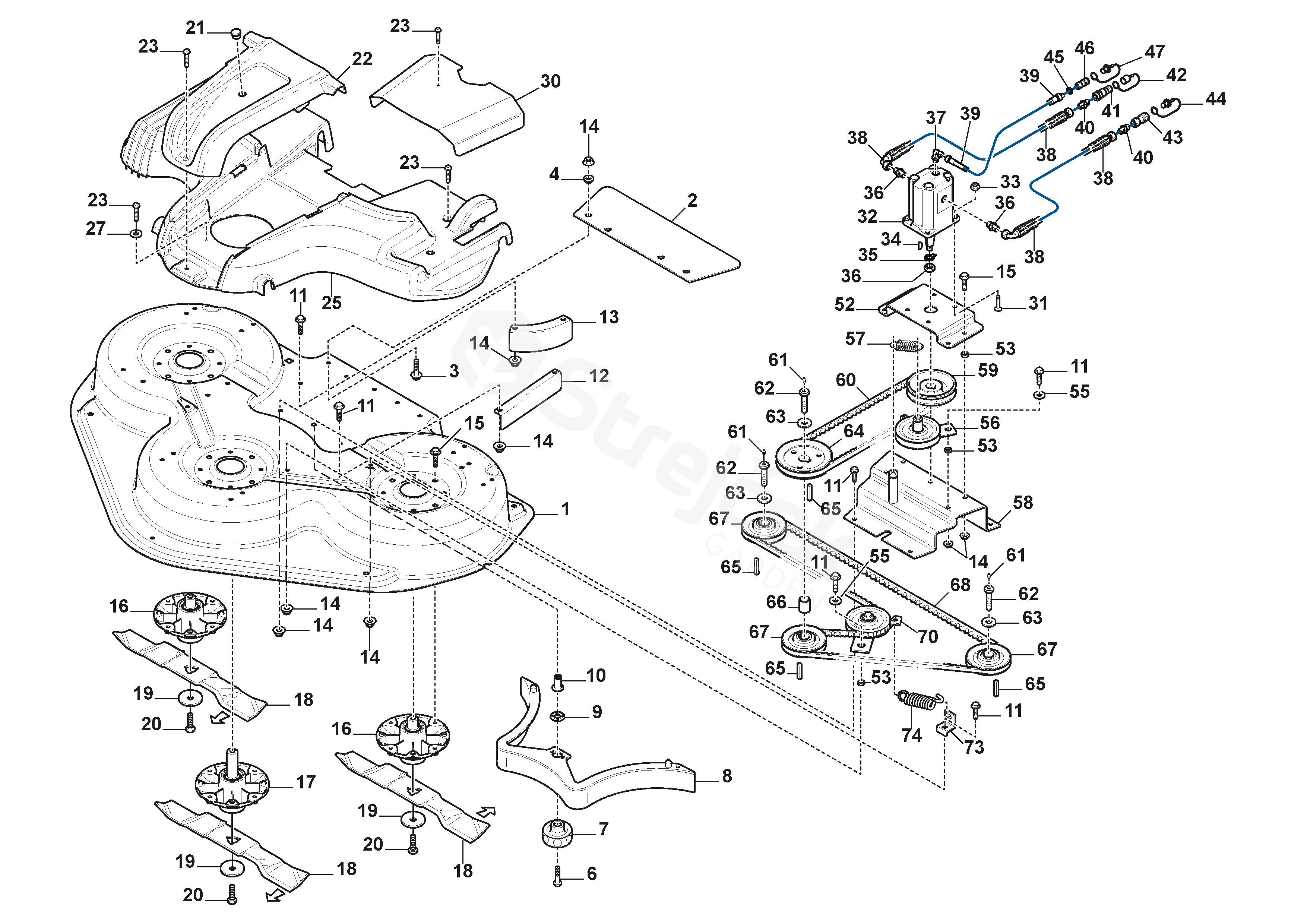

Spare parts - Partlist - DECK RM125H COMBI DECK RM125H COMBI (2016) - Transmission and Blades

Everything for your machines

DECK RM125H COMBI DECK RM125H COMBI (2016)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For DECK RM125H COMBI (2016)

1	Casing	1134-7750-01
2	Rubber flap	1134-5885-01
3	Screw	9959-0825-16
4	Flange Washer	1134-4185-01
6	Screw	112691115/0
7	Yellow Knob	322399804/1
8	Mulch Plug-Black	1134-5409-02
9	Crown Fastener	112604899/0
10	Nut	1134-5595-01
11	Screw	9959-0820-16
12	Guide Plate-Straight (Black)	1134-5553-02
13	Guide Plate-Curved (Black)	1134-5554-02
14	Nut	112154220/0
15	Screw	9945-0825-16
16	Bearing Box Assy	1137-0313-01
17	Bearing Box Assy	1137-0313-02
18	Blade Bar Assy (125 Combi)	1134-9125-01
19	Washer	1134-6211-01
20	Screw	112692395/1
21	Plastic Plug	1134-7518-01
22	Cover	1137-0270-01
23	Screw	9893-0616-16
25	Transmission Cover	1137-0268-01
27	Washer	9699-0060-02
30	Transmission Cover	1134-7870-01
31	Screw	9924-0830-16
32	Hydraulic Motor	1134-7329-02
33	Nut	112155000/0
34	Key	1139-0009-01
35	Washer	1139-0007-01
36	Nut	1139-0008-01
37	Hydraulic Angle Coupling	112000402/0
38	Hydraulic Tube W.Guard	1134-7630-01
39	Hydraulic Hose	1137-0188-02
40	Hydraulic Connector	1134-7161-01
41	Quick Connector-Male 1/2	1134-7181-01
42	Plastic Plug (Red) 1/2	1134-7184-01
43	Quick Connector-Female 1/2	1134-7182-01
44	Plastic Plug	1134-7173-01
45	Washer	1134-4948-01
46	Quick Connector-Female 1/4	1134-7172-01
47	Plastic Cap	1134-7185-01
52	Engine Bracket	1134-7869-01
53	Spacer	1134-7618-01
55	Washer	9699-0109-02
56	Tension Roller	1134-7610-01
57	Spring	1134-7619-01
58	Plate Assy	1134-7868-01
59	Belt Pulley	1134-7871-01
60	V-Belt	9585-0186-01
61	Grease Dispenser	112379511/0
62	Screw	1134-7517-01
63	Washer	1134-5406-01
64	Pulley Ø= 150 mm	1137-0017-01
65	Key 6 x 6 x 25 mm	9600-0171-01
66	Spacer L = 20 mm	1134-5400-03
67	Pulley	1137-0015-01
68	Drive Belt contain belt 9585-0142-01	1134-9087-01
70	Tension Roller Assy	1134-7611-01
73	Spring	1134-5415-01
74	Spring	1134-0327-00
