Spare parts > STIGA > Front Mowers > Deck RM155H DOD Deck RM155H DOD (2013) > Casing
Back to

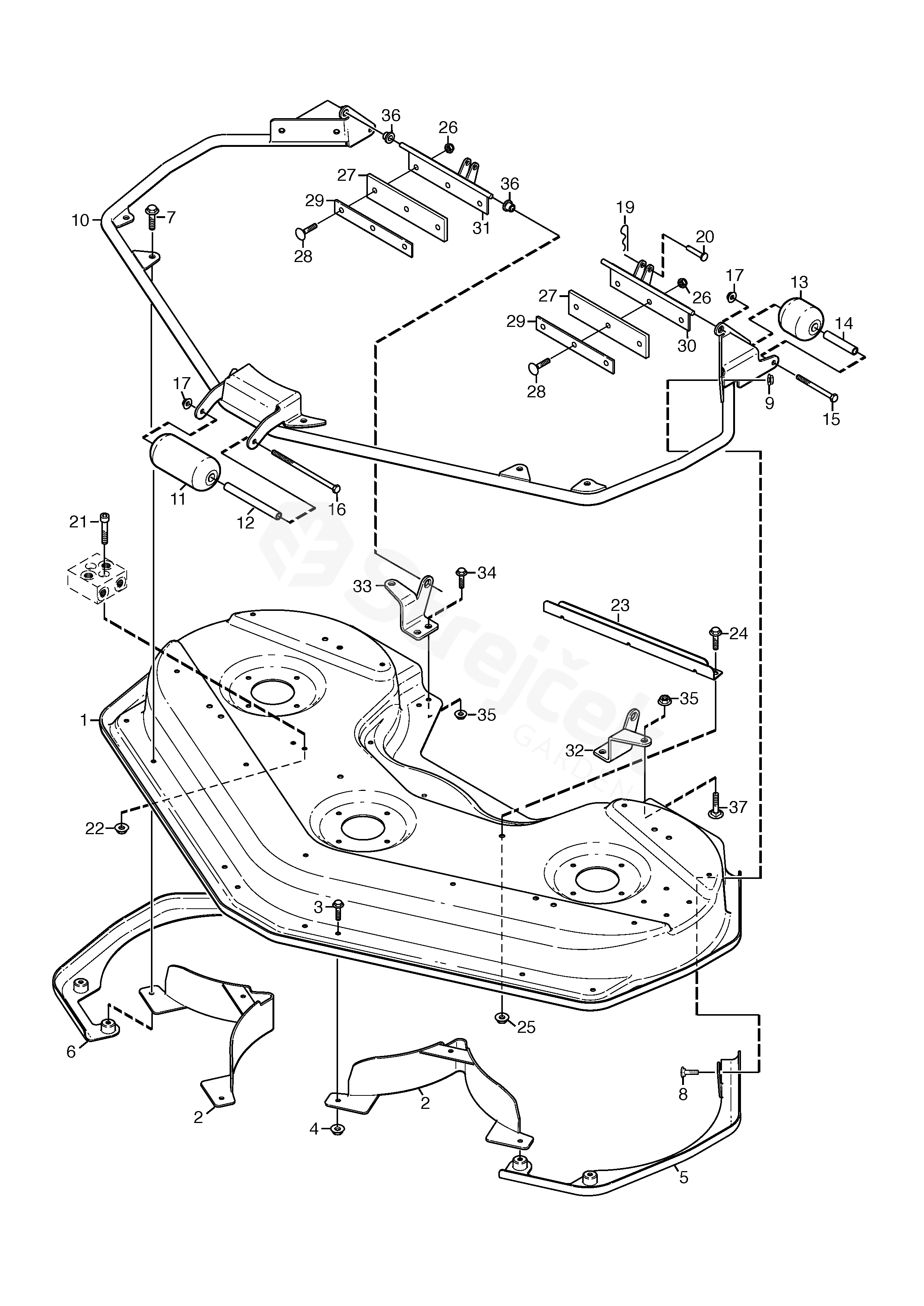

Casing
Deck RM155H DOD Deck RM155H DOD (2013)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Deck RM155H DOD (2013)
1 Mower Deck Casing 1134-6715-01
2 Guide Plate (155) 1134-7045-01
5 Wear Protection-Lh (155) 1134-6758-01
6 Wear Protection-Rh 1134-6758-02
7 Screw 9959-1025-16
8 Screw 9898-1025-16
10 Protection Frame (155) 1134-6949-01
11 Roller 1134-7341-01
12 Collar 1134-0041-09
13 Roller 1134-7341-02
14 Collar 1134-0041-08
15 Screw 9898-1011-02
16 Screw 9997-1019-02
17 Nut 9739-1031-22
19 Elastic Pin 9598-0002-02
20 Pin 1134-7400-01
21 Screw 9939-0835-16
22 Nut 9739-0831-22
23 Guide Plate 1134-7334-01
24 Screw 9959-1020-16
26 Nut 9747-0831-02
27 Rubber Guard 1134-7256-01
28 Screw 9897-0825-16
29 Plate 1134-7398-01
30 Flap-Lh (155) 1134-7251-01
31 Flap-Rh (155) 1134-7251-02
32 Bracket-Lh 1134-7254-01
33 Bracket-Rh 1134-7254-02
36 Flange Bearing 9548-0016-00
37 Screw 9897-1025-16
