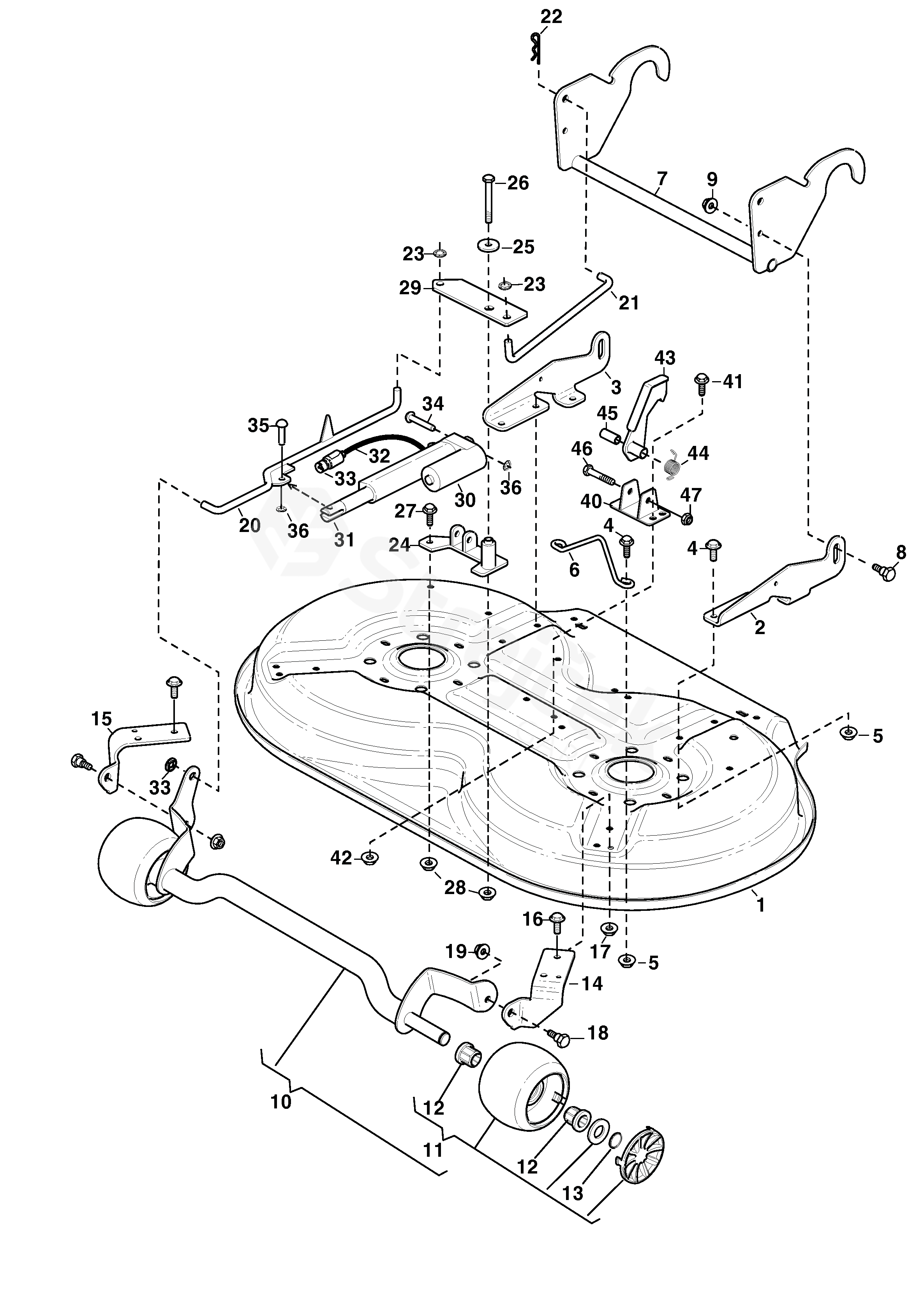

90 COMBI MULTICLIP 90 Combi Multiclip (2015)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 90 Combi Multiclip (2015)

1	Carter	1137-0962-01
2	Support, Left	1137-0969-01
3	Support, Left	1137-0969-02
4	Screw	9959-0820-16
5	Nut	112154220/0
6	Support	1137-0929-01
7	Mounting Frame Assy	1137-0974-01
8	Screw	1134-0240-00
9	Nut	112155000/0
10	Tube Assy	1137-1030-01
11	Support Wheel Kit	1134-9139-01
12	Bearing	1134-9024-01
13	Circlip	9650-0020-04
14	Support	1137-0966-01
15	Support	1137-0966-02
16	Screw	9959-0820-16
17	Nut	112154220/0
18	Screw	1134-0240-00
19	Nut	9747-0831-02
20	Rad	1137-0983-01
21	Strut	1137-0985-01
22	Split pin	9599-0054-02
23	Washer	112604903/0
24	Bracket	1137-0984-01
25	Washer	1134-5127-01
26	Screw	112793905/0
27	Screw	9959-0820-16
28	Nut	112154220/0
29	Pivot Arm	1137-0973-01
30	Actuator	1134-6417-02
31	Rod End	1134-6373-01
32	Cable	1134-6418-01
33	Male Terminal	1134-6182-01
34	Rivet	9646-0098-22
35	Rivet	9646-0105-22
36	Crown Fastener	112604899/0
40	Bracket	1137-1019-01
41	Screw	9959-0820-16
42	Nut	112154220/0
43	Fastener	1137-1022-01
44	Spring	1137-1025-01
45	Spacer	1134-1565-16
46	Screw	9997-0840-16
47	Nut	112155000/0
