Spare parts
>
STIGA
>
Front Mowers
>
Deck Villa 95 C EL Deck Villa 95 C EL (2014)
>
Transmission
Back to
Deck Villa 95 C EL
Deck Villa 95 C EL (2014)

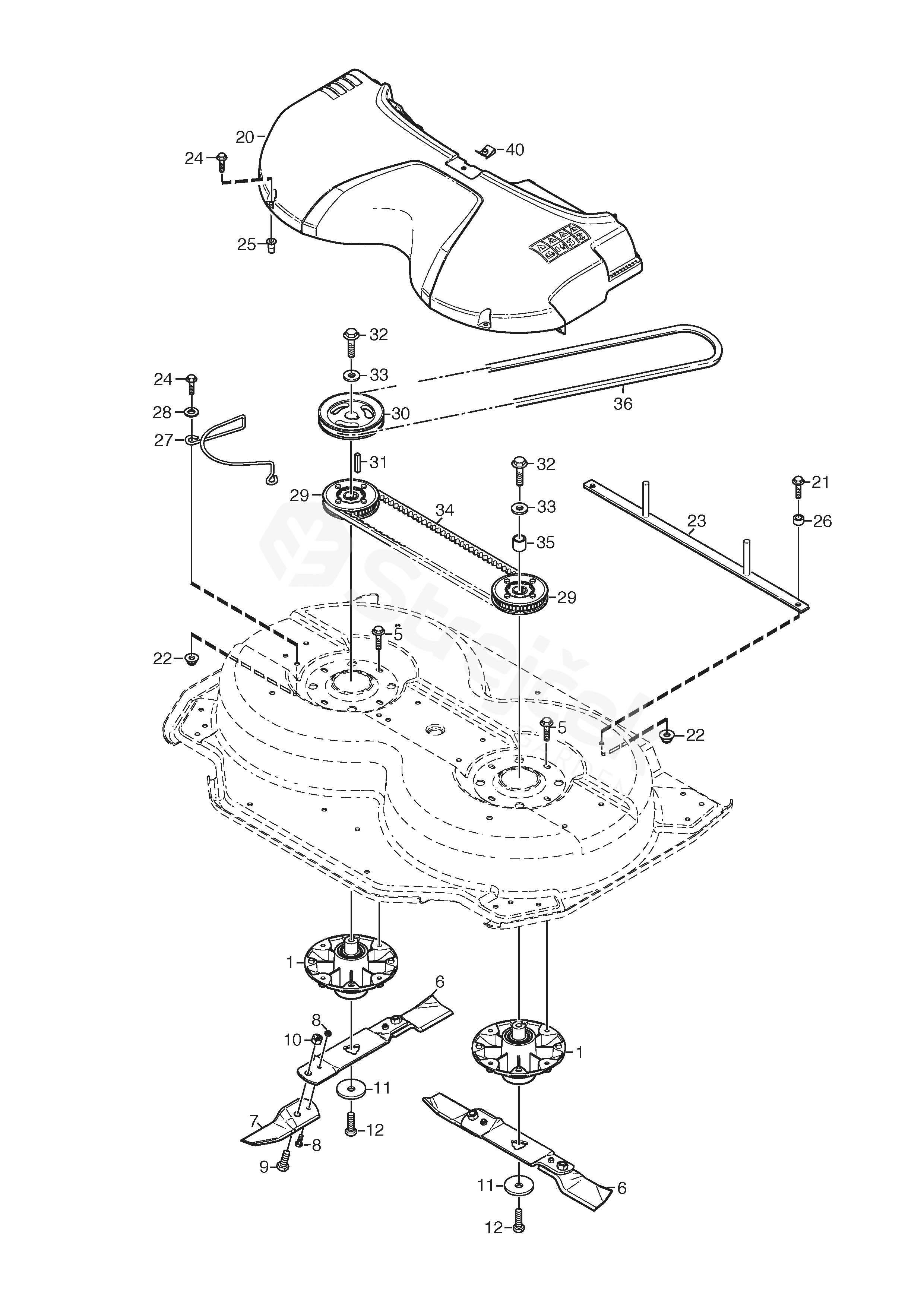

Transmission
Deck Villa 95 C EL
Deck Villa 95 C EL (2014)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Deck Villa 95 C EL (2014)
1
Bearing Box Assy
1134-5831-01
6
Blade Bar Assy (95C)
1134-9117-01
7
Blade Kit Assy
1134-9119-01
8
Shear Bolt Kit
1134-9054-01
9
Bolt
1134-6311-01
10
Nut
1134-6312-01
11
Washer
1134-6211-01
12
Screw
9997-1060-12
20
Transmission Cover-Grey
1134-6280-04
21
Shoulder screw
1134-0240-01
22
Nut
9739-0831-22
23
Bracket
1137-1082-01
24
Screw
9945-0825-16
25
Nut
1134-5595-01
27
Belt Guide
1134-6429-01
28
Washer
9699-0090-02
29
Toothed Belt Pulley
1134-9127-01
30
Belt Pulley
1134-6202-01
31
Key
9600-0168-01
33
Washer
1134-5406-01
34
Toothed Belt
9585-0162-01
35
Spacer
1134-5400-04
36
V-Belt
1134-9068-01
