DECK VILLA 95 COMBI EL Deck Villa 95 Combi EL (2018)
>
Transmission and Blades
Back to
DECK VILLA 95 COMBI EL
Deck Villa 95 Combi EL (2018)

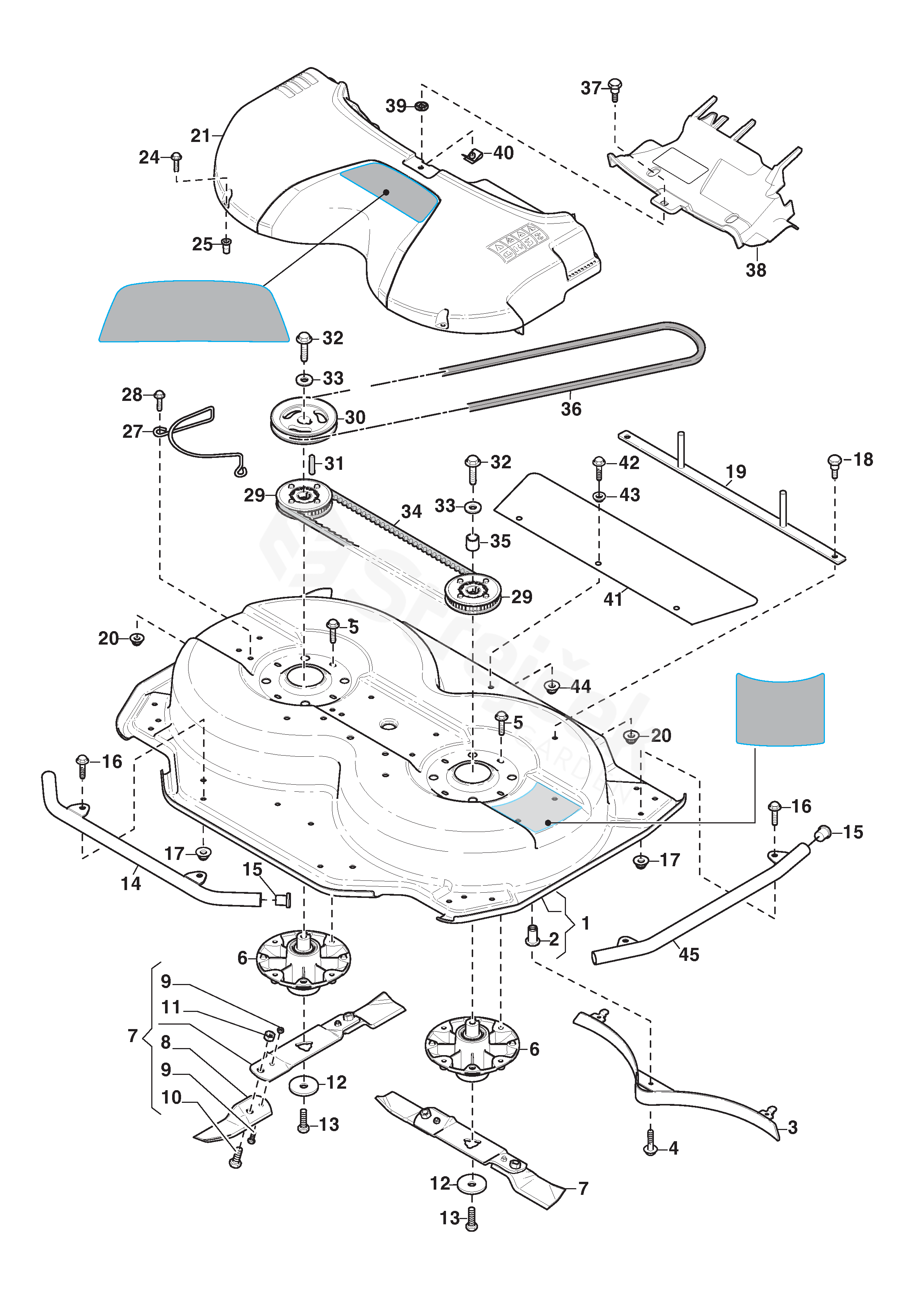

Transmission and Blades
DECK VILLA 95 COMBI EL
Deck Villa 95 Combi EL (2018)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Deck Villa 95 Combi EL (2018)
1
Casing-Yellow 95C
387561501/1
2
Nut
1134-5595-01
3
Mulch Plug 95C
1134-6229-01
6
Shaft Flange Assy
387203000/0
7
Blade Bar Assy (95C)
Sats 2 st/kit of 2
1134-9117-01
8
Blade Kit Assy
2 knivar/2 blade tips
1134-9119-01
9
Shear Bolt Kit
1134-9054-01
10
Bolt
7/16” UNF
1134-6311-01
11
Nut
7/16” UNF
1134-6312-01
12
Washer
1134-6211-01
13
Screw
112692395/2
14
Front Guard Tube-Grey
387869259/0
15
End Plug, Grey
9403-0025-80
16
Screw
112800815/0
17
Nut
112154220/0
18
Shoulder screw
1134-0240-01
19
Bracket
387033103/0
21
Belt cover
337060031/0
24
Screw
9945-0825-16
27
Belt Guide
1134-6429-01
28
Screw
9959-0820-16
29
Toothed Pulley Assy
1134-6287-01
30
Pulley
Ø = 161 mm
1137-0011-01
31
Key
9600-0168-01
33
Washer
1134-5406-01
34
Toothed Belt
Contains 135061512/0
1134-9183-02
35
Spacer
1134-5400-04
36
V-Belt
Contains 9585-0127-01
1134-9068-01
37
Screw
1134-0240-00
38
Belt cover
337600003/1
39
Starlock
9675-0016-02
40
Nut
1134-4620-02
41
Rubber Guard
1134-6281-02
43
Flange Washer
1134-4185-01
45
Side Guard Tube-Grey 95C
387869261/0
