Flail mower, complete, Park 2+4 WD
Flail mower, complete, Park 2+4 WD (2019)
Lawn rake
Flail mower, complete, Park 2+4 WD
Flail mower, complete, Park 2+4 WD (2019)

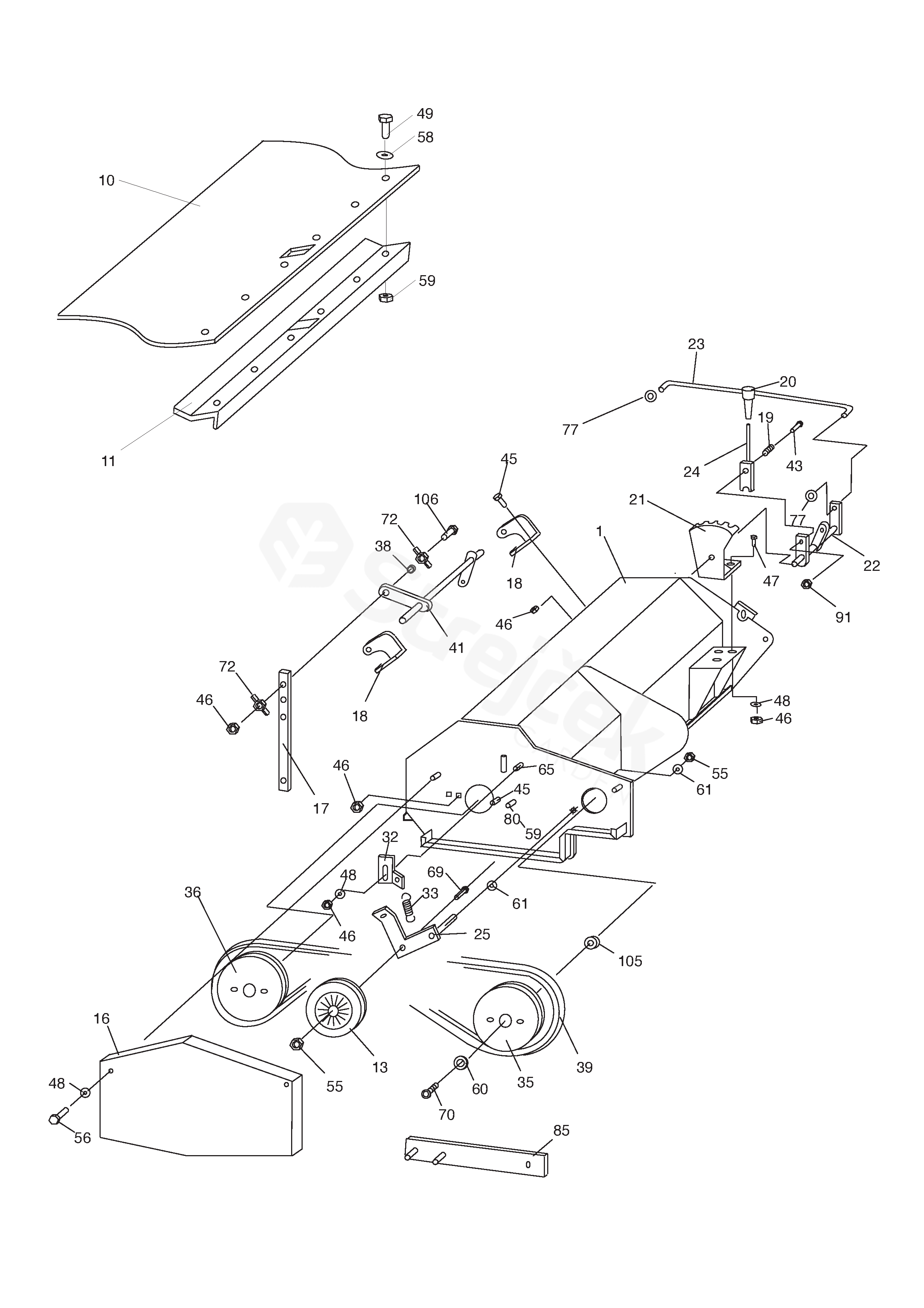

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Flail mower, complete, Park 2+4 WD (2019)
1
Frame
1319-1904-01
10
Rubber Guard
1319-1710-01
11
Rubber Guard Holder
1319-1711-01
13
Tension Roller
1319-1874-01
16
Belt Guard
1319-1905-01
17
Lift Plate
1319-1765-01
18
Side Plate-Left
1319-1715-01
19
Brake Spring
1134-1023-00
20
Lever Handle
1134-3193-01
21
Height Adjusting Plate
1134-3128-01
22
Lift shaft
1319-1770-01
23
Lift Plate
1319-1737-01
24
Lever, Height Adjustment
1319-1769-01
25
Tension Arm
1319-1719-01
32
Tightener
1319-1872-01
33
Spring
1482-0160-01
35
Belt Pulley
1319-1857-01
36
Belt Pulley
1319-1727-01
38
Collar
1319-1504-01
39
Drive Belt
= 9585-0138-01
1134-9078-01
41
Lift Rod
1319-1730-01
43
Screw
9997-0865-12
45
Screw
9997-0816-16
46
Nut
9747-0831-02
47
Screw
9997-0820-16
48
Washer
9699-0028-02
49
Screw
9997-0616-16
55
Lock Nut
9747-1031-02
56
Screw
9997-0812-16
58
Washer
9699-0085-02
59
Lock Nut
9747-0631-02
60
Washer
1319-1879-01
61
Washer
9699-0035-02
65
Screw
9898-0816-16
69
Screw
1319-1886-01
70
Screw
1319-1883-01
72
Wing Nut
1134-3259-01
77
Locking washer
9675-0012-02
80
Screw
9997-0612-16
85
Pin Wrench
1319-1775-01
91
Nut
9799-0831-02
105
Collar
1319-1887-01
106
Screw
9997-0830-16
