Spare parts > STIGA > Front Mowers > GRADER BLADE GRADER BLADE (2008) > Grader blade
Back to

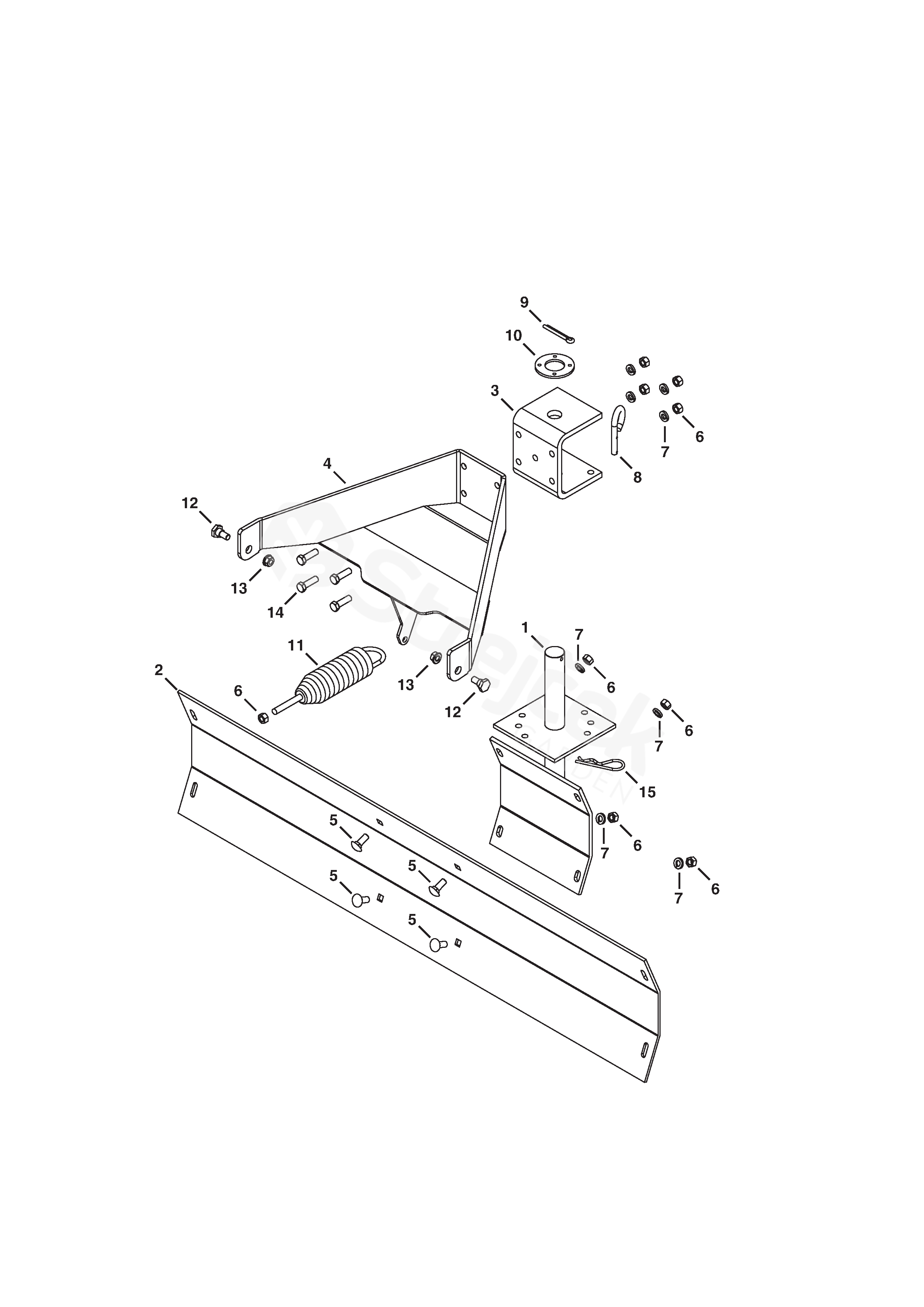

Grader blade
GRADER BLADE GRADER BLADE (2008)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For GRADER BLADE (2008)
1 Pivot bracket 1319-2808-01
2 Blade 1319-2757-01
3 Clevis Bracket 1319-2756-01
4 Adapter Bracket 1319-2818-01
5 Screw 9899-3725-16
6 Nut 9795-3731-02
7 Washer 9683-0035-02
8 Pivot Lock Pin 1319-2784-01
9 Cotter Pin 1319-2798-01
10 Washer 1319-2748-01
11 Spring 1319-2780-01
12 Shoulder Bolt 1319-2802-01
13 Nut 1132-0695-01
14 Screw 9988-3732-12
15 Spring Pin 9598-0003-02
