STIGA
>
Front Mowers
>
Grass adn leaf collector 42" Grass adn leaf collector 42" (2013)
>
Lawn Sweeper 42"
Back to
Grass adn leaf collector 42"
Grass adn leaf collector 42" (2013)
Lawn Sweeper 42"
Grass adn leaf collector 42"
Grass adn leaf collector 42" (2013)

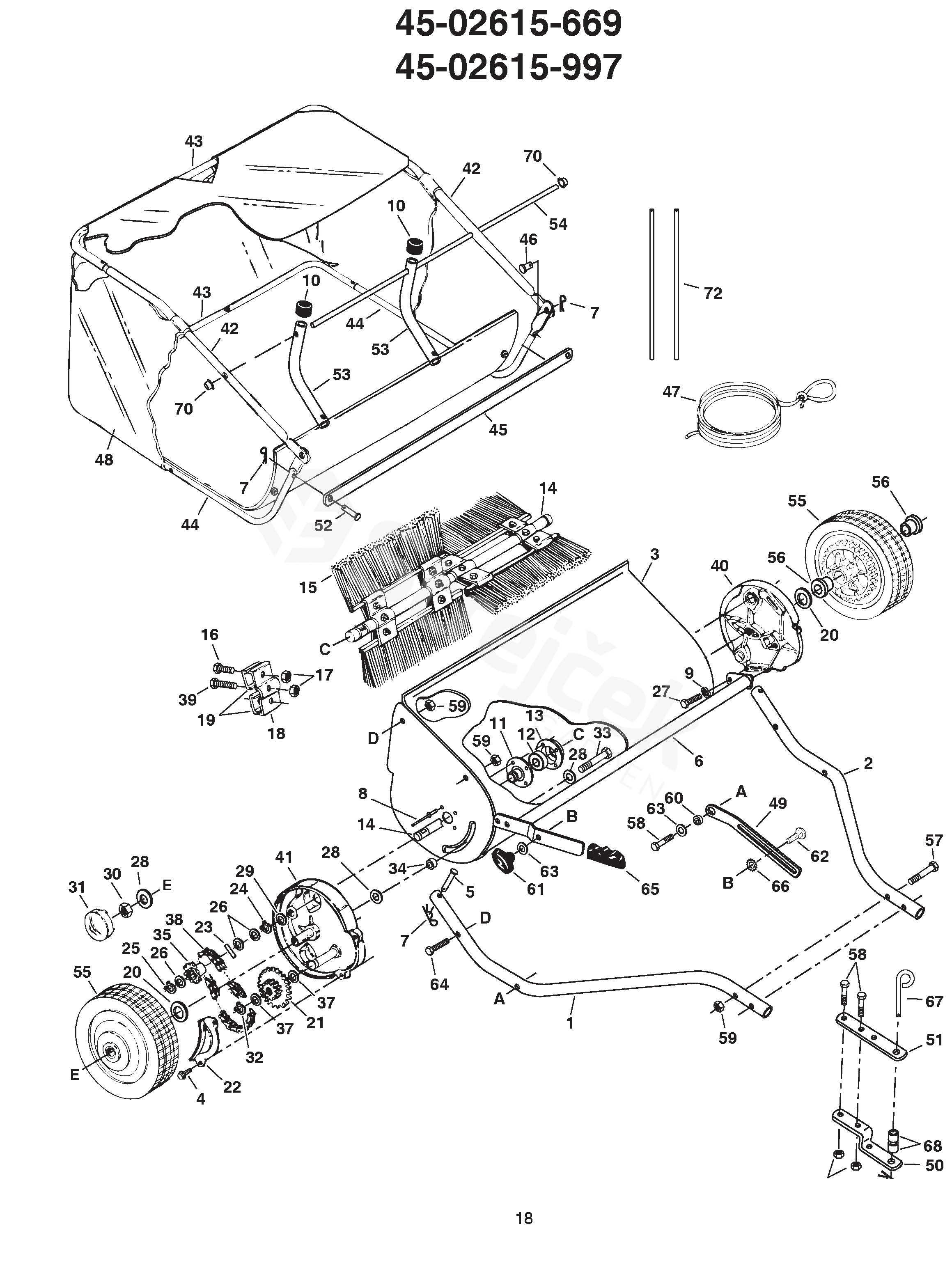

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Grass adn leaf collector 42" (2013)
1
Bushing
1319-2677-01
2
Screw
1319-2678-01
3
Housing Assy
1319-2842-01
4
Screw
1319-2678-01
5
Clevis Pin
1319-2634-01
6
Height Adjustment Tube
1319-2843-01
7
Elastic Pin
9598-0002-02
8
Pop Rivet
1319-2600-01
9
Washer
9683-0030-02
10
Vinyl Cap
1319-2619-01
11
Bushing
1319-2582-01
12
Ball Bearing
1319-2618-01
13
Bearing Retainer
1319-2593-01
14
Brush Shaft 42
1319-2838-01
15
Brush 42
1319-2630-01
16
Screw
9988-3519-16
17
Nut
9743-3521-32
18
Brush Retainer,Double
1319-2515-01
19
Brush Retainer,Single
1319-2516-01
20
Flat washer
1319-2562-01
21
Gear Sprocket Sub
1319-2583-01
22
Dust Cover
1319-2513-01
23
Dowel Pin-Drive
1319-2659-01
24
Retainer ring
9650-0019-04
25
S.P.
1319-2597-0
26
Washer
1319-2839-01
27
Screw
9988-3619-16
28
Flat washer
1319-2590-01
29
S.P.
1319-2951-01
30
Nut
9743-5221-01
31
Hub Cap
1319-2595-01
32
Retaining Ring (E-Type)
1319-2836-01
33
Hex Bolt
1319-2545-01
34
Spacer
1319-2511-01
35
Ratchet Sprocket, L.H.
Not.ill
1319-2539-01
37
Washer
1319-2565-01
38
Roller Chain
1319-2566-01
39
Screw
9899-3525-16
40
Wheel Drive Assy Lh
1319-2840-01
41
Wheel Drive Assy Rh
1319-2841-01
42
Upper Tube
1319-2870-01
43
Framr Rear
1319-2728-01
44
Lower Frame Front
1319-2729-01
45
Bag Frame Strap
1319-2610-01
46
Clevis Pin
1319-2664-01
47
Hopper Rope
1319-2536-01
48
Hopper Bag
1319-2871-01
49
Height Adjustment Strap
1319-2682-01
50
Hitch Bracket
1319-2606-01
51
Hitch Bracket (Straight)
1319-2613-01
52
Elastic Pin
9598-0002-02
53
Tube
1319-2872-01
54
Pivot rod
1319-2632-01
55
Wheel
1319-2580-01
56
Bearing
1319-2581-01
57
Screw
9988-3676-12
58
Screw
9988-3657-12
59
Nut
9743-3621-32
60
Spacer
1319-2837-01
61
Wing Knob
1319-2535-01
62
Screw
9899-3625-16
63
Washer
9699-0028-02
64
Screw
9988-3645-16
65
Grip
1319-2551-01
66
Washer
9678-0030-02
67
Hitch Pin
1319-2507-01
68
Hitch Adj.Tube
1319-2509-01
69
Elastic Pin
9598-0002-02
70
Nut
9743-3623-32
72
Hopper Support Rod
1319-2547-01
