STIGA
>
Front Mowers
>
Lawn sweeper 42" Lawn sweeper 42" (2009)
>
Lawn sweeper
Back to
Lawn sweeper 42"
Lawn sweeper 42" (2009)
Lawn sweeper
Lawn sweeper 42"
Lawn sweeper 42" (2009)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For

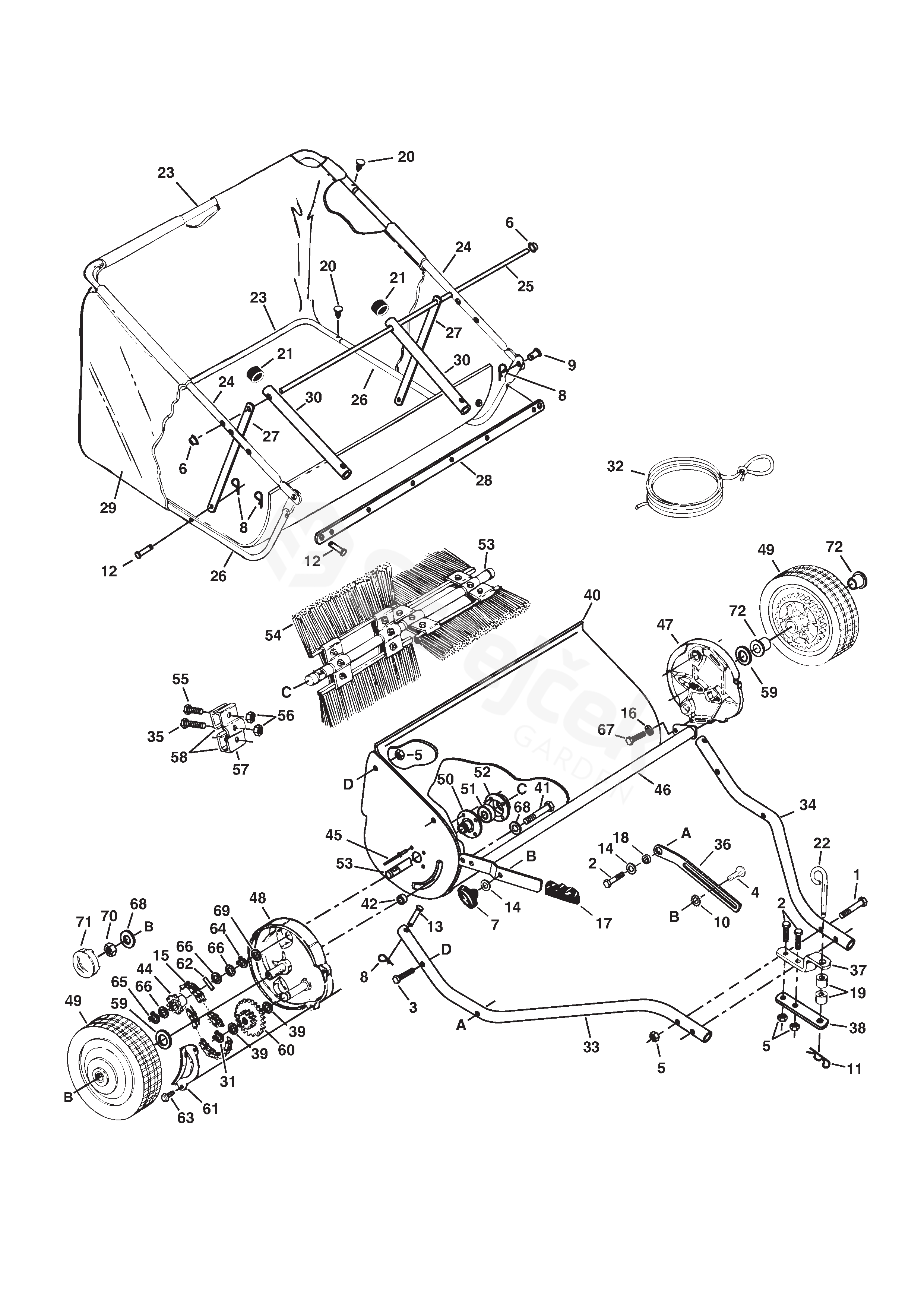

Lawn sweeper 42" (2009)
1
Screw
9988-3676-12
2
Screw
9988-3657-12
3
Screw
9988-3645-16
4
Screw
9899-3625-16
5
Nut
9743-3621-32
6
Nut
1319-2620-01
7
Wing Knob
1319-2535-01
8
Elastic Pin
9598-0002-02
9
Clevis Pin
1319-2664-01
10
Crown Fastener
9678-0010-02
11
Elastic Pin
9598-0002-02
12
Clevis Pin
1319-2663-01
13
Clevis Pin
1319-2634-01
14
Washer
9699-0028-02
15
Roller Chain
1319-2566-01
16
Washer
9683-0030-02
17
Grip
1319-2551-01
18
Spacer
1319-2837-01
19
Hitch Adj.Tube
1319-2509-01
20
Plastic Plug
1319-2666-01
21
Vinyl Cap
1319-2619-01
22
Hitch Pin
1319-2507-01
23
Framr Rear
1319-2728-01
24
Upper Frame Front
1319-2730-01
25
Pivot rod
1319-2632-01
26
Lower Frame Front
1319-2729-01
27
Bag Support Strap
1319-2726-01
28
Bag Frame Strap
1319-2610-01
29
Hopper Bag
1319-2671-01
30
Bag Arm Tube
1319-2631-01
31
Retaining Ring (E-Type)
1319-2836-01
32
Hopper Rope
1319-2536-01
33
Hitch Tube R.H.
1319-2627-01
34
Hitch Tube L.H.
1319-2628-01
35
Screw
9988-3525-16
36
Height Adjustment Strap
1319-2682-01
37
Hitch Bracket
1319-2606-01
38
Hitch Bracket (Straight)
1319-2613-01
39
Washer
1319-2565-01
40
Housing Assy
1319-2842-01
41
Hex Bolt
1319-2545-01
42
Spacer
1319-2511-01
44
Ratchet Sprocket, R.H.
1319-2540-01
45
Pop Rivet
1319-2600-01
46
Height Adjustment Tube
1319-2843-01
47
Wheel Drive Assy Lh
1319-2840-01
48
Wheel Drive Assy Rh
1319-2841-01
49
Wheel & Tire
1319-2727-01
50
Bushing
1319-2582-01
51
Ball Bearing
1319-2618-01
52
Bearing Retainer
1319-2593-01
53
Brush Shaft 42
1319-2838-01
54
Brush 42
1319-2630-01
55
Screw
9988-3519-16
56
Nut
9743-3521-32
57
Brush Retainer,Double
1319-2515-01
58
Brush Retainer,Single
1319-2516-01
59
Flat washer
1319-2562-01
60
Gear Sprocket Sub
1319-2583-01
61
Dust Cover
1319-2513-01
62
Dowel Pin-Drive
1319-2659-01
63
Screw
1319-2678-01
64
Retainer ring
9650-0019-04
65
E-ring
1319-2597-01
66
Washer
1319-2839-01
67
Screw
9988-3619-16
68
Flat washer
1319-2590-01
69
Flat washer
1319-2591-01
70
Nut
9743-5221-32
71
Hub Cap
1319-2595-01
72
Bearing
1319-2581-01
