Spare parts > STIGA > Front Mowers > MOSSRIVARE PARK MOSSRIVARE PARK (2002) > Flail Mower Lawn Rake
Back to

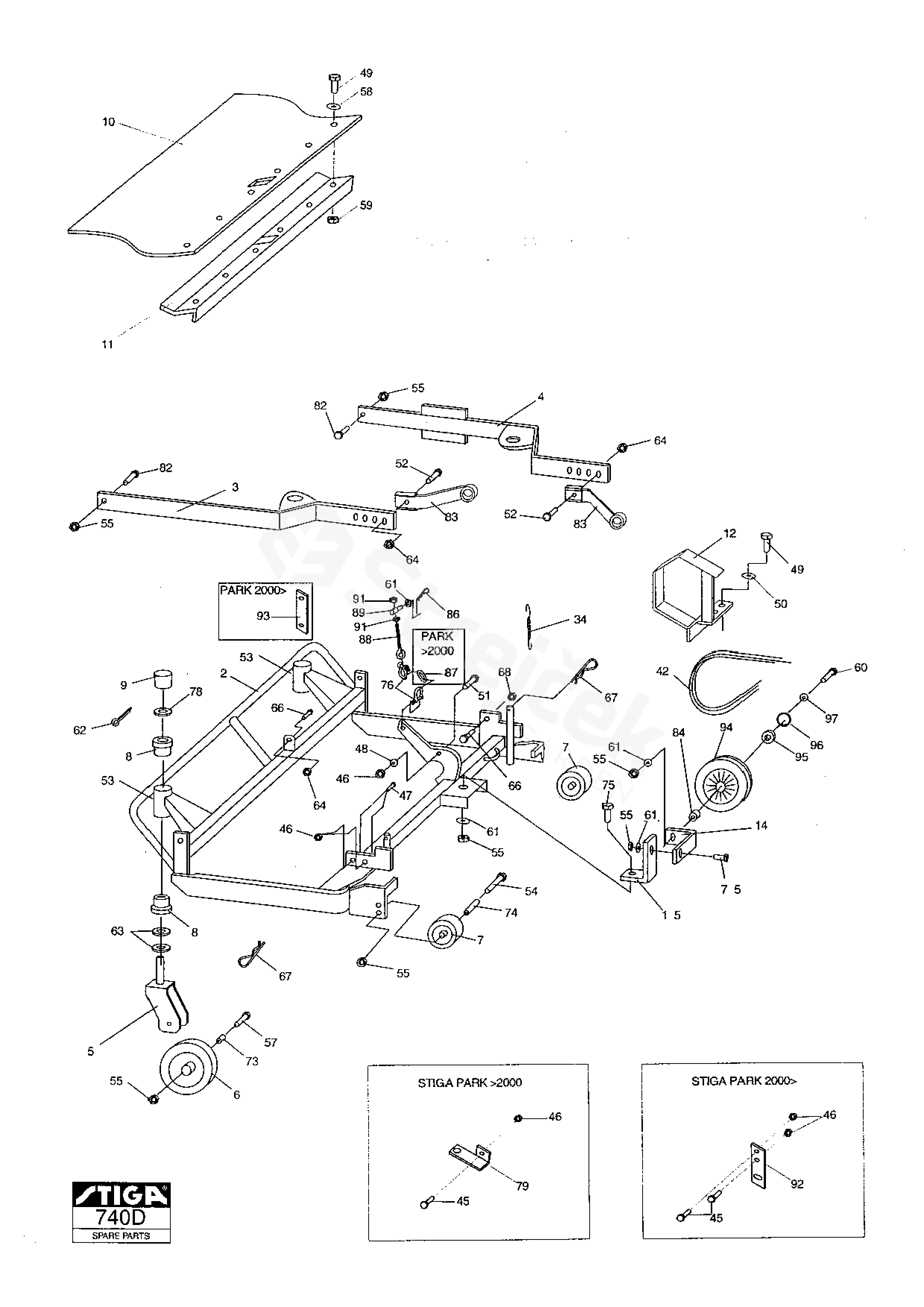

Flail Mower Lawn Rake
MOSSRIVARE PARK MOSSRIVARE PARK (2002)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MOSSRIVARE PARK (2002)
2 Frame 1319-1762-01
3 Side Plate-Left 1319-1763-01
4 Side Plate-Right 1319-1764-01
5 Wheel Fork 1319-1708-01
6 Support Wheel 1134-3520-01
7 Casing Wheel 1134-0305-00
8 Bearing
Sats 4 st/kit of 4 		1134-9024-01
9 Dust Cap 1319-1709-01
10 Rubber Guard 1319-1710-01
11 Rubber Guard Holder 1319-1711-01
12 Belt Guard 1319-1712-01
14 Support 1319-1518-01
15 Support 1319-1517-01
34 Spring 1111-1842-01
42 V-Belt
= 9585-0123-00 		1134-9056-01
45 Screw 9997-0816-16
46 Nut 9747-0831-02
47 Screw 9997-0820-16
48 Washer 9699-0028-02
49 Screw 9997-0620-16
50 Washer 9699-0025-02
51 Screw 9997-0825-16
52 Screw 9997-1035-16
53 Grease Dispenser 9501-0500-00
54 Screw 9997-1060-12
55 Lock Nut 9747-1031-02
57 Screw 9997-1080-12
58 Washer 9699-0085-02
59 Lock Nut 9747-0631-02
60 Screw 9997-1050-16
61 Washer 9699-0035-02
62 Split pin 9599-0085-02
63 Washer 9699-0042-02
64 Nut 9739-1031-22
66 Screw 1134-0240-00
67 Spring Pin 9598-0003-02
68 Nut 9747-0831-02
73 Collar 1319-1735-01
74 Bearing Socket 1134-0366-00
75 Screw 9997-1025-16
76 Lift link 1134-2629-01
78 Washer 9699-0042-02
79 Spring Attachment
- 1999 		1319-1616-01
82 Screw 9997-1025-16
83 Attachment For Accessories 1134-3710-01
84 Collar 1319-1519-01
86 Spring Pin 9598-0003-02
87 Link
- 1999 		1134-2630-01
88 Eye-Bolt 9405-0031-00
89 Key 1134-0576-00
91 Nut 9799-0831-02
92 Holder
2000 - 		1319-1780-01
93 Link
2000 - 		1319-1779-01
94 Pulley
Aluminium 		1319-1522-01
95 Ball Bearing 9549-0047-00
96 Circlip 1319-1553-01
97 Washer 1319-1798-01
