Spare parts > STIGA > Front Mowers > ROAD KIT RIGHT FOR CABIN TITAN ROAD KIT RIGHT FOR CABIN TITAN (2010) > Road kit
Back to
Road kit

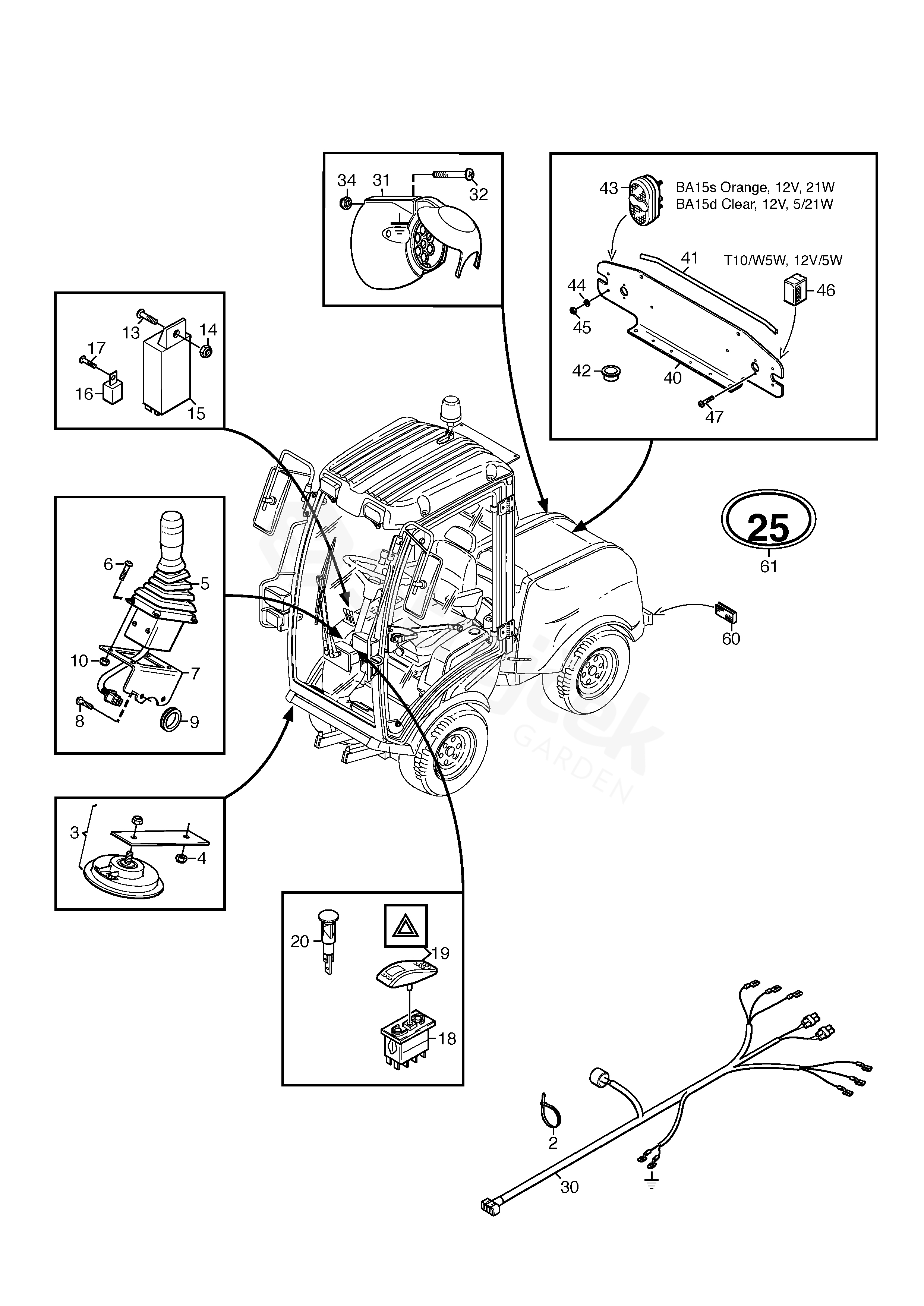

ROAD KIT RIGHT FOR CABIN TITAN ROAD KIT RIGHT FOR CABIN TITAN (2010)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ROAD KIT RIGHT FOR CABIN TITAN (2010)
2 Cable Holder 9579-0003-00
3 Horn 082-564-01
4 Nut 9739-0631-22
5 Light Control Switch 9400-0336-01
6 Screw 084-395-01
7 Bracket 1134-7409-01
8 Screw 9893-0616-16
9 Grommet 9400-0340-01
10 Nut 9747-0531-02
13 Screw 9941-0512-16
14 Nut 9739-0531-22
15 Flashing Relay 9400-0337-01
16 Relay 1134-2871-01
17 Screw 9893-0616-16
18 Switch
Hazard/varn.blinkers 		9400-0345-01
19 Switch Cover-Warning
Hazard/varn.blinkers 		9400-0343-02
20 Control Lamp
Hazard/varn.blinkers 		9400-0320-03
30 Harness Assy-Rear (Road-Kit)
Pos 42 incl. 		1134-7733-01
31 Socket 9400-0347-01
32 Screw 9947-0540-19
34 Nut 9747-0531-02
40 Lamp Holder Plate 1134-7615-01
41 Edge Protection List 082-292-01
42 Grommet 9400-0341-01
43 Rear Lamp-Lh 9400-0331-01
44 Washer 9683-0015-02
45 Nut 9799-0531-02
46 Reg. Plate Lamp 9400-0332-01
47 Screw 9847-7816-16
60 Reflex 9410-0101-01
61 Label 9402-3784-01
