Spare parts > STIGA > Front Mowers > Sand Spreader Sand Spreader (1998) > Chassis
Back to

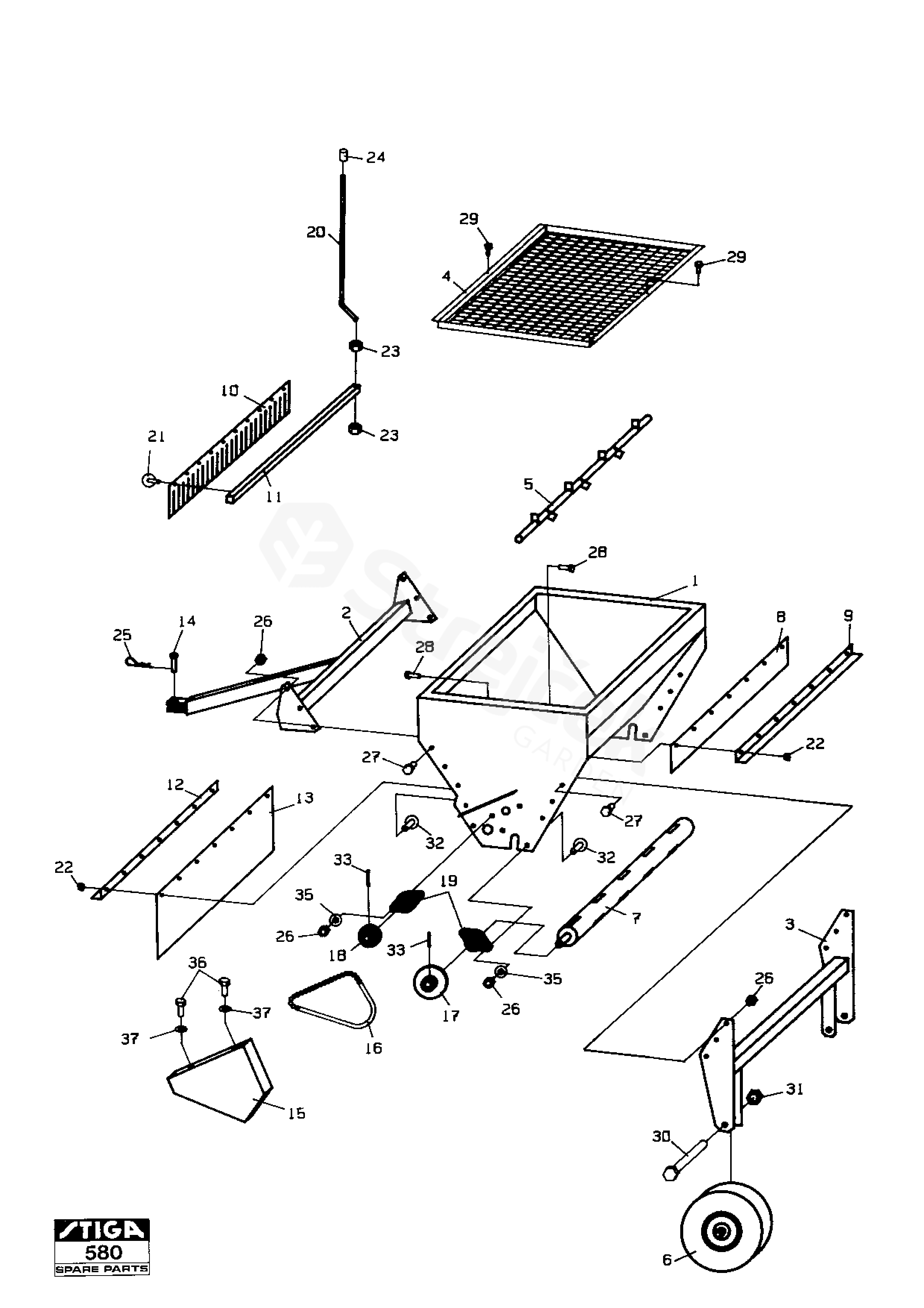

Chassis
Sand Spreader Sand Spreader (1998)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Sand Spreader (1998)
1 Container 1319-1666-01
2 Towing Bar 1319-1667-01
3 Wheel Support 1319-1668-01
4 Guard 1319-1669-01
5 Shaft 1319-1670-01
6 Pivot Wheel 1319-1606-01
7 Shaft 1319-1671-01
8 Rubber 1319-1672-01
9 Support Plate 1319-1673-01
10 Spring Blade 1319-1674-01
11 Tube 1319-1675-01
12 Support Plate 1319-1676-01
13 Rubber 1319-1677-01
14 Hitch Pin 1319-1678-01
15 Chain Guard 1319-1679-01
16 Drive Chain 1319-1680-01
17 Chain Wheel
24T 		1319-1681-01
18 Chain Wheel
15T 		1319-1682-01
19 Flange Bearing 1319-1665-01
20 Control Shaft 1319-1683-01
21 Pop Rivet 1319-1693-01
22 Lock Nut 9747-0631-02
23 Lock Nut 9747-1031-02
24 Plastic Plug 1319-1691-01
25 Spring Pin 1319-1692-01
26 Nut 9747-0831-02
27 Screw 9997-0816-16
28 Screw 9997-0820-16
29 Screw 9849-8013-16
30 Screw 1319-1694-01
31 Nut 9747-1231-02
32 Screw 9898-0830-16
33 Locating Pin 9595-0270-00
35 Washer 9699-0028-02
36 Screw 9997-0612-16
37 Washer 9699-0085-02
