Spare parts > STIGA > Front Mowers > SNÄBLAD TRAC SNÄBLAD TRAC (1989) > Blade-Trac
Back to

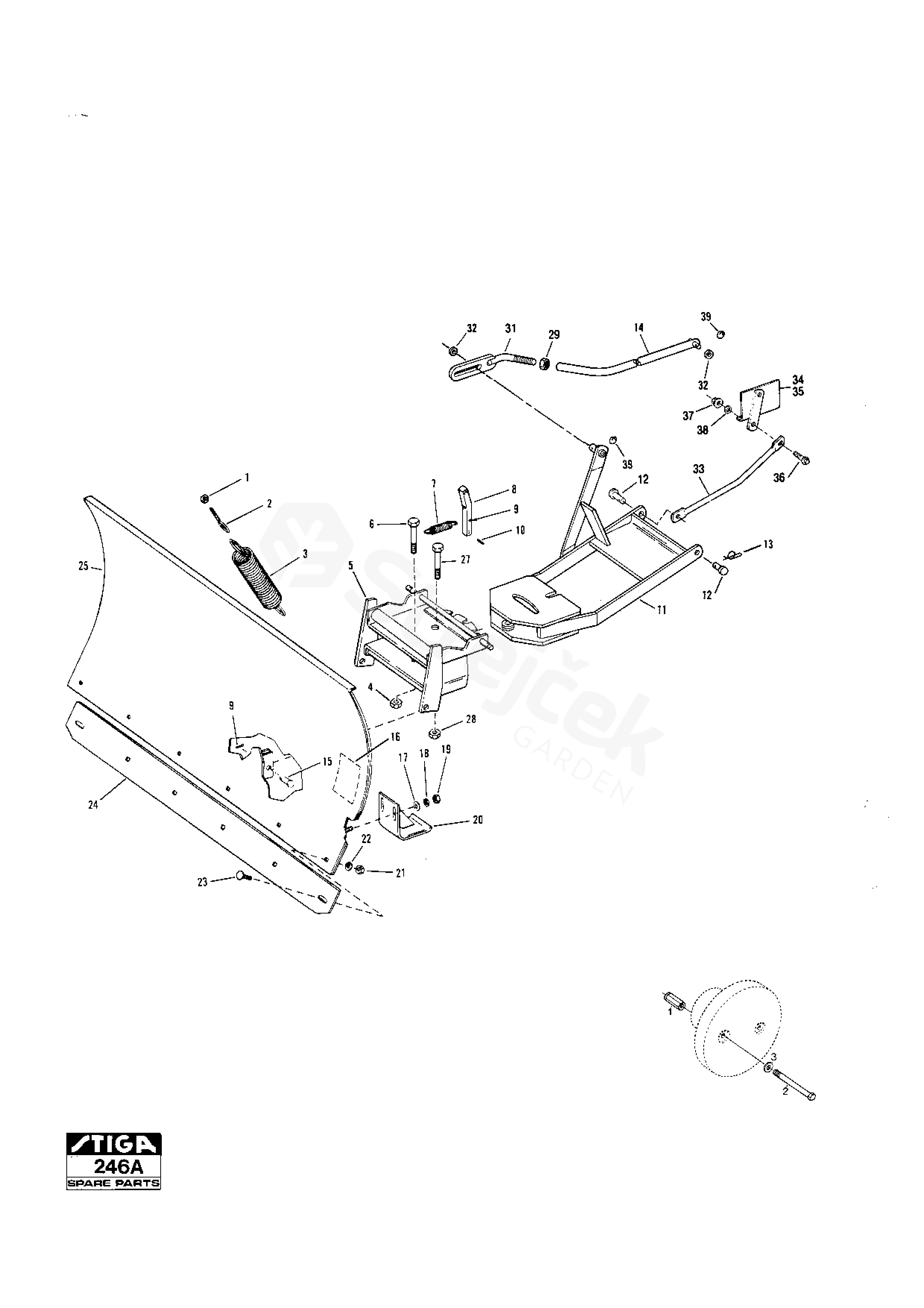

Blade-Trac
SNÄBLAD TRAC SNÄBLAD TRAC (1989)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SNÄBLAD TRAC (1989)
1 Nut 9743-3621-32
2 Eye Bolt 1132-0054-01
3 Spring 1132-0057-01
4 Nut 9743-4121-12
5 Pivot plate 1132-0127-01
6 Screw 9988-4183-12
7 Spring 1132-0038-01
8 Latch pin 1132-0056-01
9 Cotter Pin 1811-0121-01
10 Roll pin 1132-0046-01
11 Hitch 1132-0340-01
12 Clevis pin 1132-0092-01
13 Cotter ring 1132-0525-01
14 Lift tube 1132-0432-01
15 Clevis Pin 1132-0050-01
16 Label 1811-0465-01
17 Washer 9699-0029-02
18 Washer 9683-0035-02
19 Nut 9795-3731-02
20 Shoe 1132-0061-01
21 Nut 9795-3631-02
22 Washer 9683-0030-02
23 Screw 9899-3625-16
24 Scraper Blade 1132-0496-01
25 Blade 1132-0107-01
27 Screw 9988-3770-12
28 Nut 9743-3721-32
29 Nut 9743-5721-32
31 Lift Rod 1132-0433-01
32 Washer 9699-0038-02
33 Support strut 1132-0429-01
34 Bracket attachm-R.H. 1132-0427-01
35 Bracket attachm-L.H. 1132-0428-01
36 Screw 1132-0693-01
37 Nut 1132-0695-01
39 Cotter ring 1132-0524-01
A1 Nut 1134-2531-01
A2 Screw 9997-1012-02
A3 Washer 9699-0035-02
