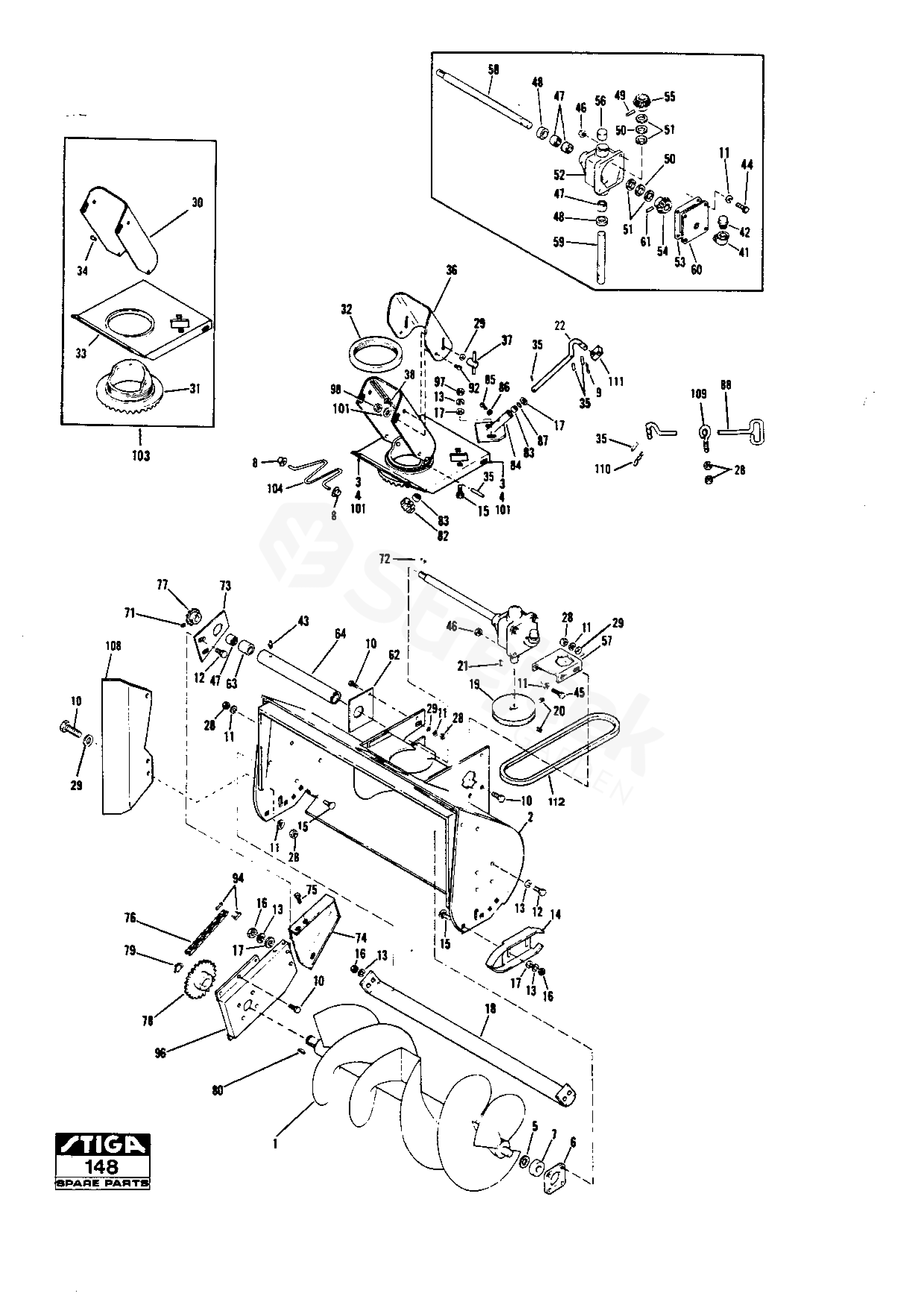

SNÖSLUNGA PARK SNÖSLUNGA PARK (1989)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SNÖSLUNGA PARK (1989)

1	Auger	1811-0233-01
2	Rotor housing	1811-0459-01
3	Screw	9988-3513-16
4	Washer	9683-0025-02
5	Washer	1811-0200-01
6	Bearing	1811-0216-01
7	Ball Bearing	1811-0167-01
8	Grip Ring	1812-1143-01
9	Cotter Pin	1811-0120-01
10	Screw	9988-3619-16
11	Washer	9683-0030-02
12	Screw	9988-3716-16
13	Washer	9683-0035-02
14	Skid	1811-0220-01
15	Screw	9899-3725-16
16	Nut	9743-3721-32
17	Washer	9699-0029-02
18	Scraper Blade	1811-0234-01
19	Pulley	1811-0268-01
20	Screw	9913-3609-15
21	Key	9600-0050-00
22	Chute pinion shaft	1811-0737-01
28	Nut	9795-3631-02
29	Washer	9699-0028-02
30	Electric Motor	1811-0501-01
31	Bracket-chute	1811-0509-01
32	Seal Ring	1811-0230-01
33	Duct	1811-0685-01
34	Rivet	1811-0499-01
35	Roll pin	1811-0143-01
36	Chute Deflector	1811-0245-01
37	Nut	1811-0218-01
38	Bolt	1811-0164-01
41	Tube	1811-0130-01
42	Vented cap	1811-0528-01
43	Grease Fitting	1811-0190-01
44	Screw	9988-3625-16
45	Screw	9988-3632-12
46	Nut	9743-3621-32
47	Needle Bearing	1811-0144-01
48	Ring	1811-0154-01
49	Roll pin	1811-0149-01
50	Bearing	1811-0159-01
51	Thrust race	1811-0160-01
52	Gear Case	1811-0229-01
53	Gasket	1811-0209-01
54	Pinion 23T	1811-0210-01
55	Pinion 16T	1811-0211-01
56	Needle Bearing	1811-0212-01
57	Gear case support	1811-0236-01
58	Drive Shaft	1811-0237-01
59	Pulley shaft	1811-0238-01
60	Cover-Gear Box	1811-0240-01
61	Roll pin	1811-0153-01
62	Bracket	1811-0221-01
63	Cage	1811-0532-01
64	Tube	1811-0239-01
71	Screw	9913-3609-15
72	Woodruff Key	1811-0118-01
73	Bracket	1811-0241-01
74	Chain Protection	1811-0243-01
75	Screw	1811-0165-01
76	Chain	1811-0242-01
77	Pinion 11T	1811-0215-01
78	Sprocket 28T	1811-0214-01
79	Retainer ring	9650-0019-04
80	Key	1811-0199-01
82	Pinion	1811-0217-01
83	Bushing	1811-0158-01
84	Bracket	1811-0231-01
85	Screw	1811-0125-01
86	Nut	9795-3531-02
87	Washer	1811-0201-01
88	Chute crank	1811-0738-01
92	Screw	9988-3513-16
94	Chain Lock	1811-0146-01
96	Chain Protection	1811-0222-01
97	Nut	9795-3731-02
98	Nut	9743-3521-32
101	Washer	9699-0026-02
103	Chute Kompl	1811-0244-01
104	Chute guard	1811-0275-01
108	Housing extension	1811-0442-01
109	Eye Bolt	1132-0054-01
110	Spring Pin	1811-0526-01
111	Nut	1811-0219-01
112	V-Belt	9585-0005-02
