Spare parts > STIGA > Front Mowers > SNOW BLADE SNOW BLADE (2013) [13-3917-61] > Snow blade
Back to

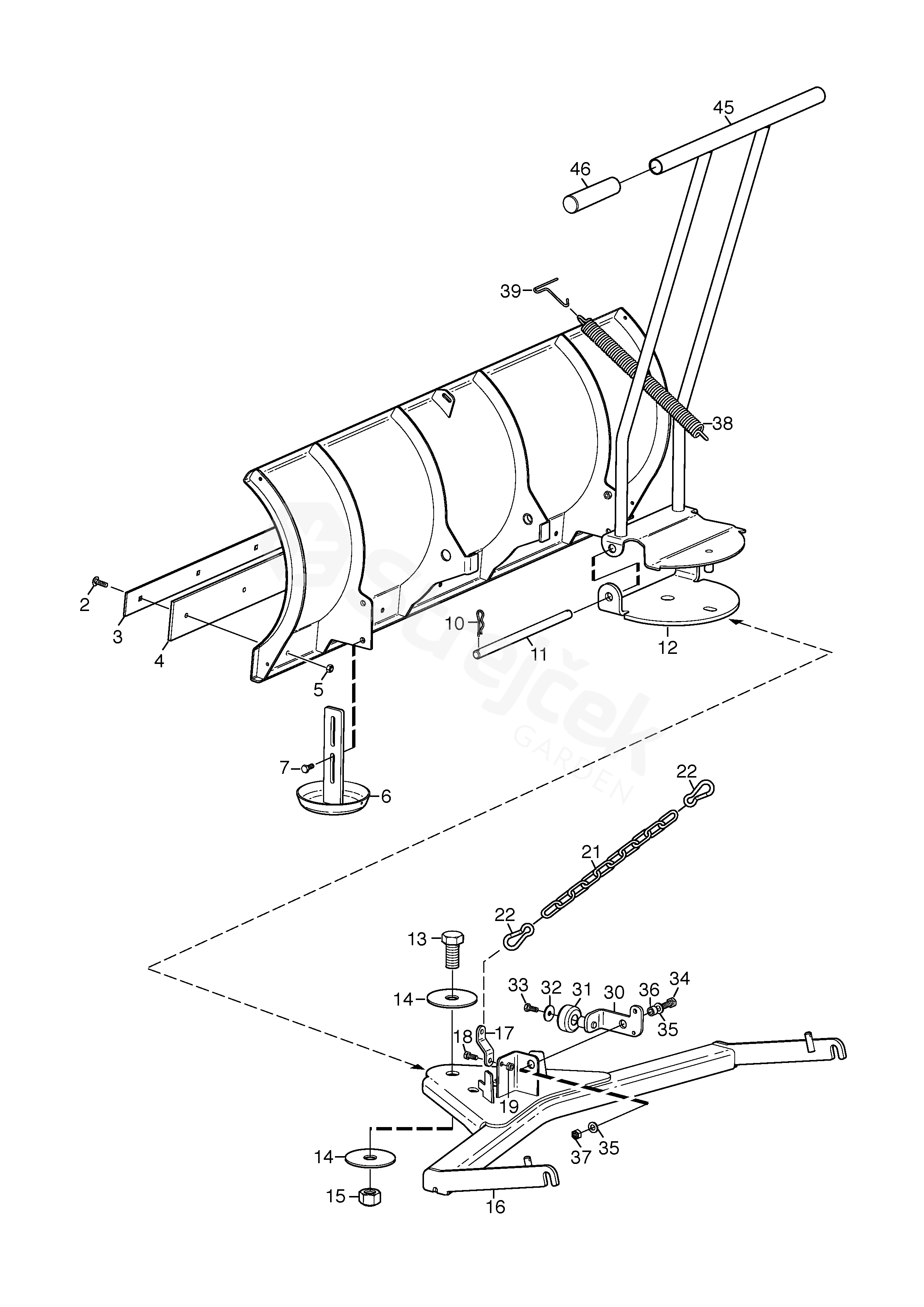

Snow blade
SNOW BLADE SNOW BLADE (2013) [13-3917-61]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SNOW BLADE (2013) [13-3917-61]
2 Screw 9897-0825-16
3 Strip Plate 1319-0652-01
4 Steel Scraper Bar 1319-0651-01
5 Nut 9747-0831-02
6 Glide shoe 1319-0663-01
7 Screw 9959-0820-16
10 Cotter Pin 9598-0001-02
11 Shaft 1319-0658-01
12 Mounting plate 1319-0661-01
13 Screw
M24x50 		1319-0665-01
14 Washer 1319-0660-01
15 Nut
M24 		1319-0666-01
16 Mounting Frame 1319-0657-01
17 Bracket F Lift Chain 1319-0653-01
18 Screw 9959-0820-16
19 Nut 9747-0831-02
21 Chain W Snap Hooks
Pos 22 incl. 		1319-0662-01
22 Snap Hook 1134-5528-01
30 Lever 1319-0654-01
31 Wheel 1319-0655-01
32 Washer 9699-0122-02
33 Screw 9959-0820-16
34 Screw 9997-1030-16
35 Washer 9699-0035-02
36 Collar 1319-0656-01
37 Lock Nut 9747-1031-02
38 Spring 1319-0667-01
39 Hook 1319-0664-01
45 Control Lever 1319-0659-01
46 Handle Grip 1319-0641-01
