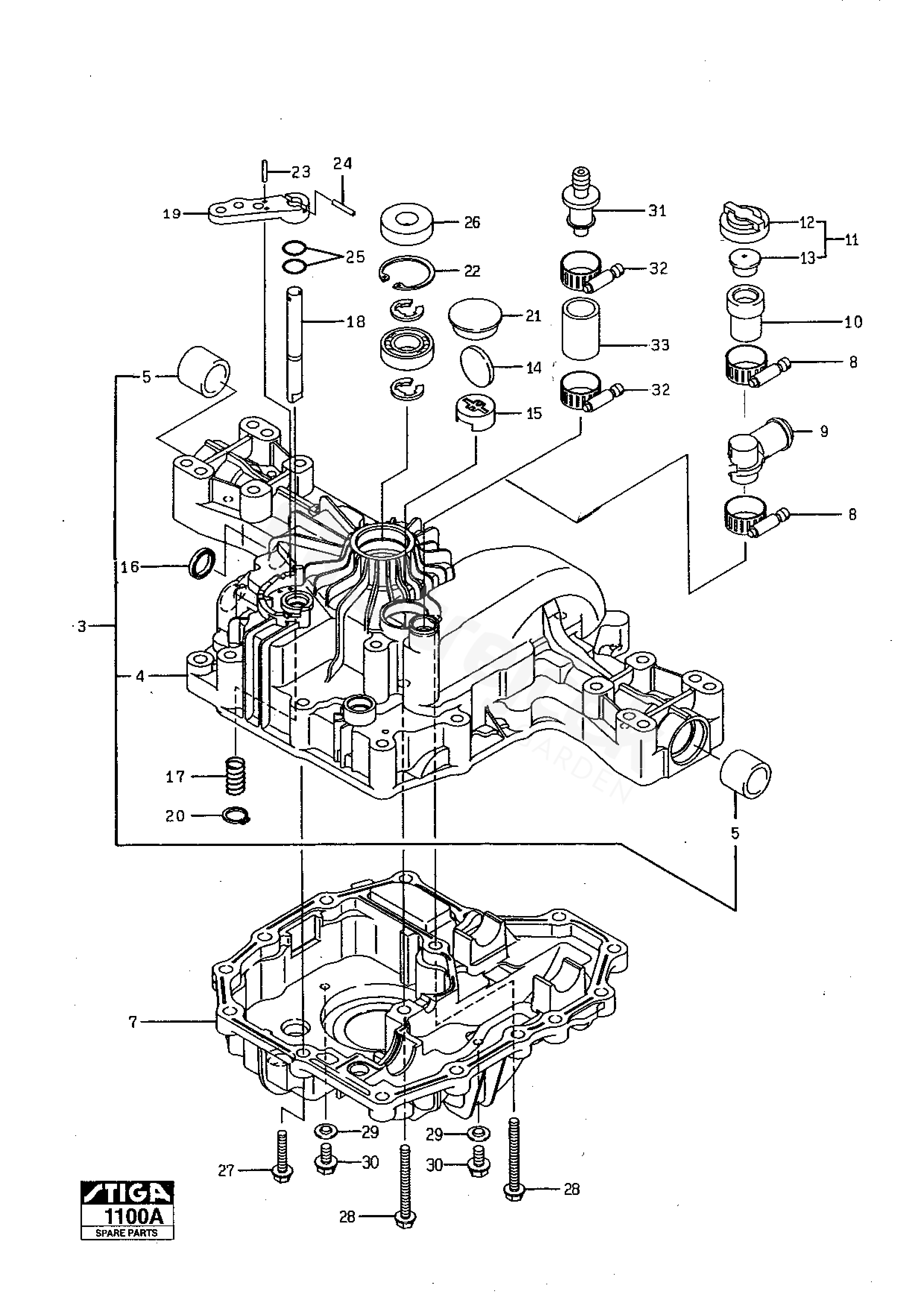

Spare parts > STIGA > Front Mowers > TRANSAXL TRANSAXLE (Villa) > Transmission
Back to
Transmission
TRANSAXL TRANSAXLE (Villa)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TRANSAXLE (Villa)
3 Upper Housing Cmp
Inkl. pos 4 - 5 _ K46AG 		1139-1302-01
7 Lower Housing
K46AG 		1139-1321-01
8 Mini Clamp
K46AG 		1139-1300-01
9 Connector
K46AG 		1139-1299-01
10 Breather Collar
K46AG 		1139-1238-01
11 Vent valve assy
Inkl. pos 12 - 13 _ K46AG 		1139-1100-01
14 Magnet
K46AG 		1139-1150-01
15 Magnet Holder
K46AG 		1139-1240-01
16 Seal Ring
K46AG 		1139-1303-01
17 Spring
K46AG 		1139-1028-01
18 By-Pass Shaft
K46AG 		1139-1251-01
19 By-Pass Lever
K46AG 		1139-1189-01
20 Ring
K46AG 		1139-1161-01
21 Bore Plug
K46AG 		1139-1275-01
22 Snap Ring
K46AG 		1139-1104-01
23 Pin
K46AG 		1139-1279-01
24 Pin
K46AG 		1139-1280-01
25 O-Ring
K46AG 		1139-1117-01
26 Seal 15*35*7
K46AG 		1139-1119-01
27 Screw
K46AG 		1139-0244-01
28 Screw
K46AG 		1139-1295-01
29 Washer
K46AG 		1139-1103-01
30 Bolt
K46AG 		1139-1123-01
31 Adaptor
K46G 		1139-1306-01
32 Mini Clamp
K46G 		1139-1300-01
33 Tube
K46G 		1139-1301-01
