STIGA
>
Front Mowers
>
UPPTAGANDE SOP PARK UPPTAGANDE SOP PARK (2000)
>

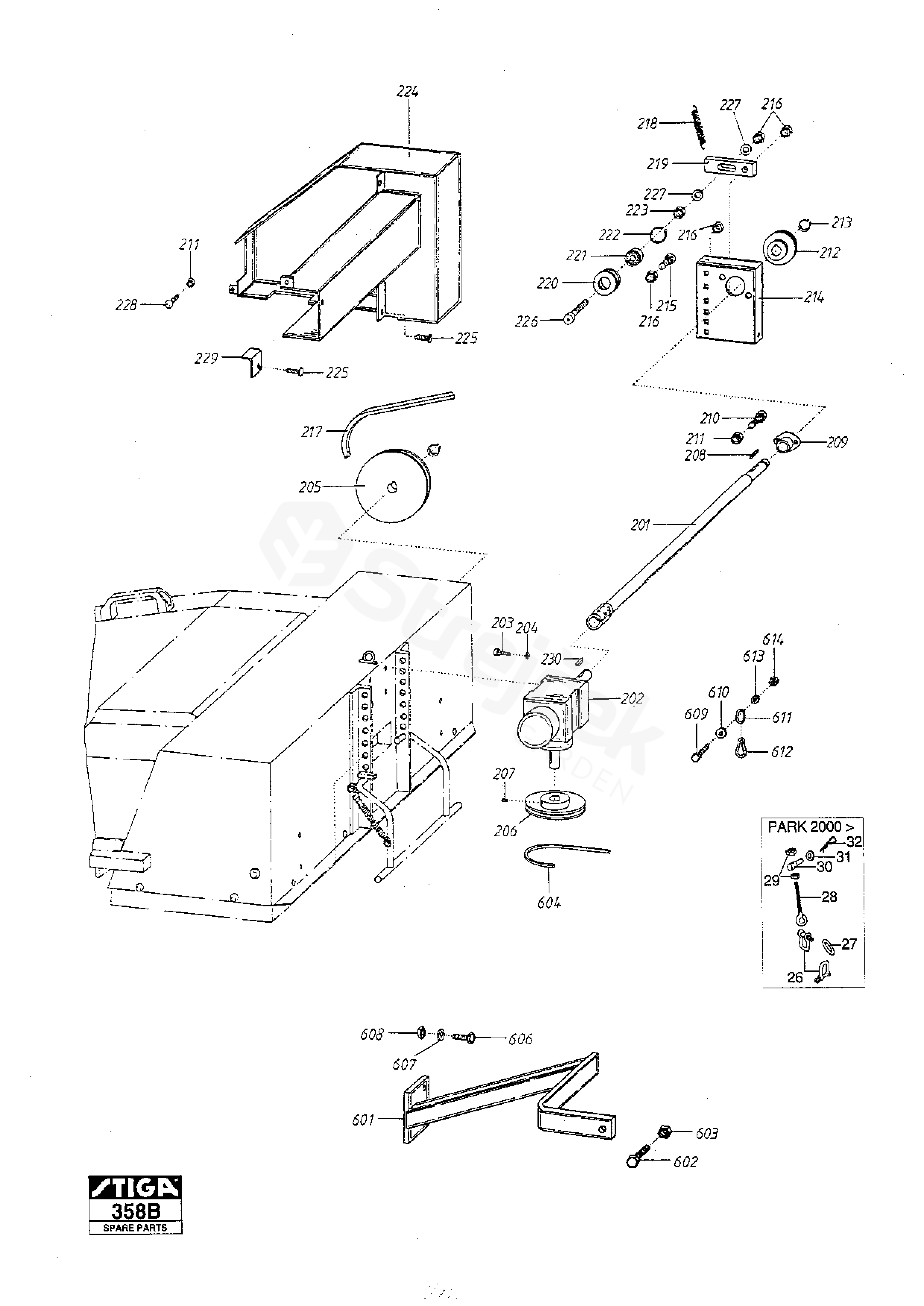

Collecting Sweeper Transmission
Back to
UPPTAGANDE SOP PARK
UPPTAGANDE SOP PARK (2000)
Collecting Sweeper Transmission
UPPTAGANDE SOP PARK
UPPTAGANDE SOP PARK (2000)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
UPPTAGANDE SOP PARK (2000)
26
Lift link
1134-2629-01
27
Link
1134-2630-01
28
Eye-Bolt
9405-0031-00
29
Nut
9747-0831-02
30
Key
1134-0576-00
31
Washer
9699-0035-02
32
Spring Pin
9598-0003-02
201
Drive Shaft
1319-1034-01
202
Right angle drive
1319-1045-01
203
Screw
9939-0820-16
204
Washer
9683-0030-02
205
Double Belt Pulley
1319-1030-01
206
Belt Pulley
1319-1033-01
207
Screw
9915-0610-15
208
Key
9600-0170-00
209
Flange Bearing
1319-1004-01
210
Screw
9997-0616-16
211
Lock Nut
9747-0631-02
212
Belt Pulley
1319-1021-01
213
CLock ring
9650-0015-04
214
Bearing Plate
1319-1037-01
215
Screw
9898-0820-16
216
Nut
9747-0831-02
217
V-Belt
9585-0035-00
218
Spring
1319-1009-01
219
Tensioning arm
1319-1022-01
220
Tension Roller
1319-1023-01
221
Ball Bearing
9549-0046-00
222
Locking ring
1319-1003-01
223
Nut
9799-0831-02
224
Belt Guard
1319-1024-01
225
Screw
9847-8216-16
226
Screw
9939-0825-16
227
Washer
9699-0056-02
228
Screw
9898-0620-16
229
Angle Bracket
1319-1048-01
230
Key
1319-1042-01
601
Push Arm L.H.
Ej ill/not ill.
1319-1049-01
602
Screw
9997-1030-16
603
Nut
9799-1031-02
604
V-Belt
9585-0070-00
606
Screw
9997-1030-16
607
Washer
9699-0035-02
608
Lock Nut
9747-1031-02
609
Screw
9997-0825-16
610
Washer
9699-0056-02
611
Chain Link
1319-1046-01
612
Hook
1319-1044-01
613
Washer
9699-0056-02
614
Nut
9747-0831-02
