Spare parts > STIGA > Lawn Tractor > GARDEN COMPACT EV GARDEN COMPACT EV (2009) [2T0314781/09] > Engine - ST.
Back to

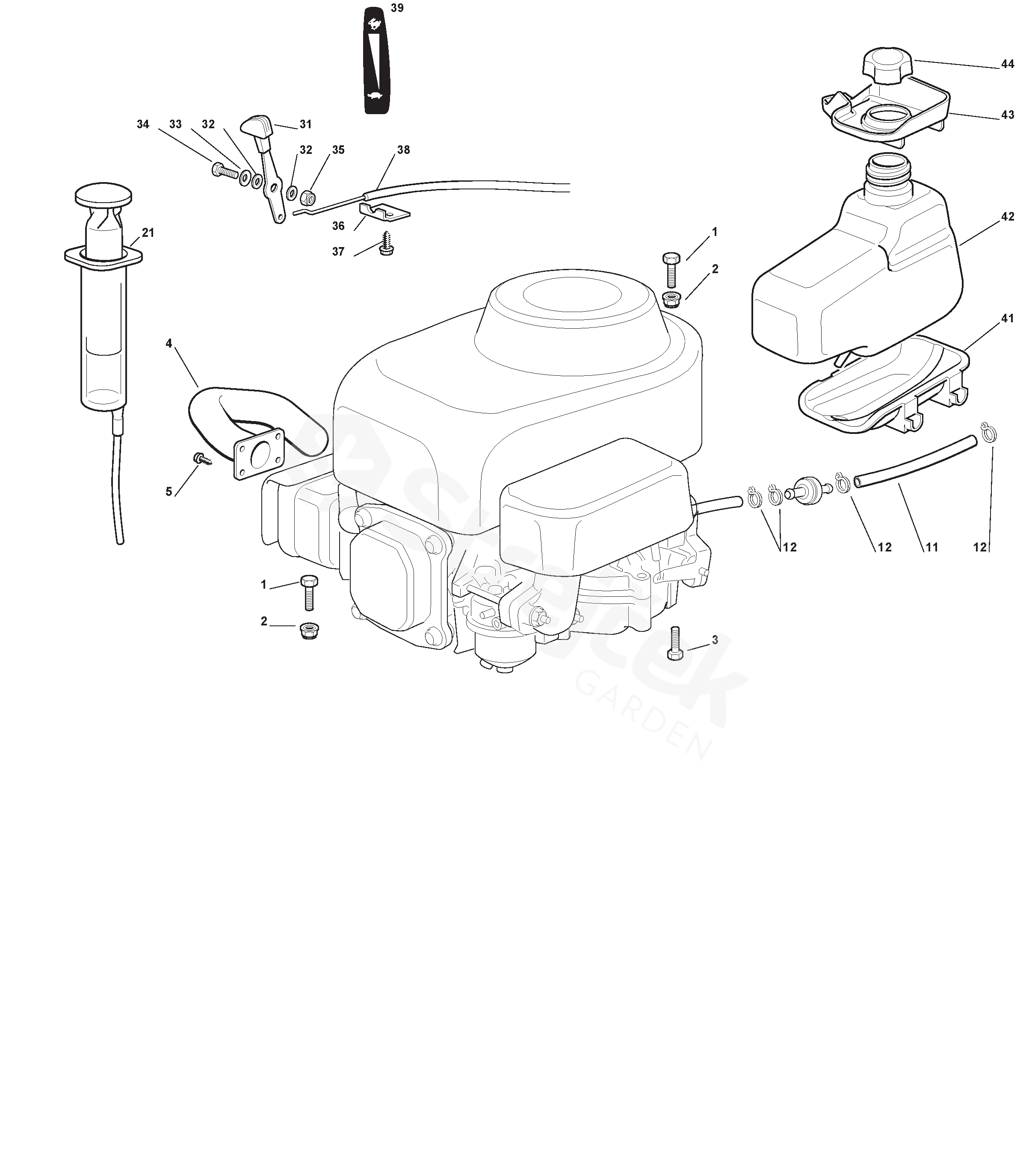

Engine - ST.
GARDEN COMPACT EV GARDEN COMPACT EV (2009) [2T0314781/09]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For GARDEN COMPACT EV (2009) [2T0314781/09]
1 Screw 112691115/0
2 Nut 112154210/0
3 Screw 112691100/0
4 Exhaust Pipe El 63 Enduro 6Hp 318738201/0
5 Screw
To 31-August-2010 		112691115/0
11 Connecting Tube 325869035/1
12 Fair Led 118375051/1
21 Oil Emptying Syringe 118718000/0
31 Throttle Lever
From 01-September-2010 		384317094/0
32 Washer 112523040/0
33 Spring washer 112530060/0
34 Screw 112791500/0
35 Nut 112154510/0
36 Plate 322981467/0
37 Screw 112735105/0
38 Throttle Cable 184000253/1
39 Label 114358717/0
41 Support 127787057/0
42 Fuel Tank 127733002/1
43 Plastic Petrol Protection 127600113/0
44 Fuel Cap 127790000/1
