Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Lawn Tractor
>
GARDEN COMPACT EV GARDEN COMPACT EV (2009) [2T0314781/09]
>
Engine - ST. WBE0704
Back to
GARDEN COMPACT EV
GARDEN COMPACT EV (2009) [2T0314781/09]

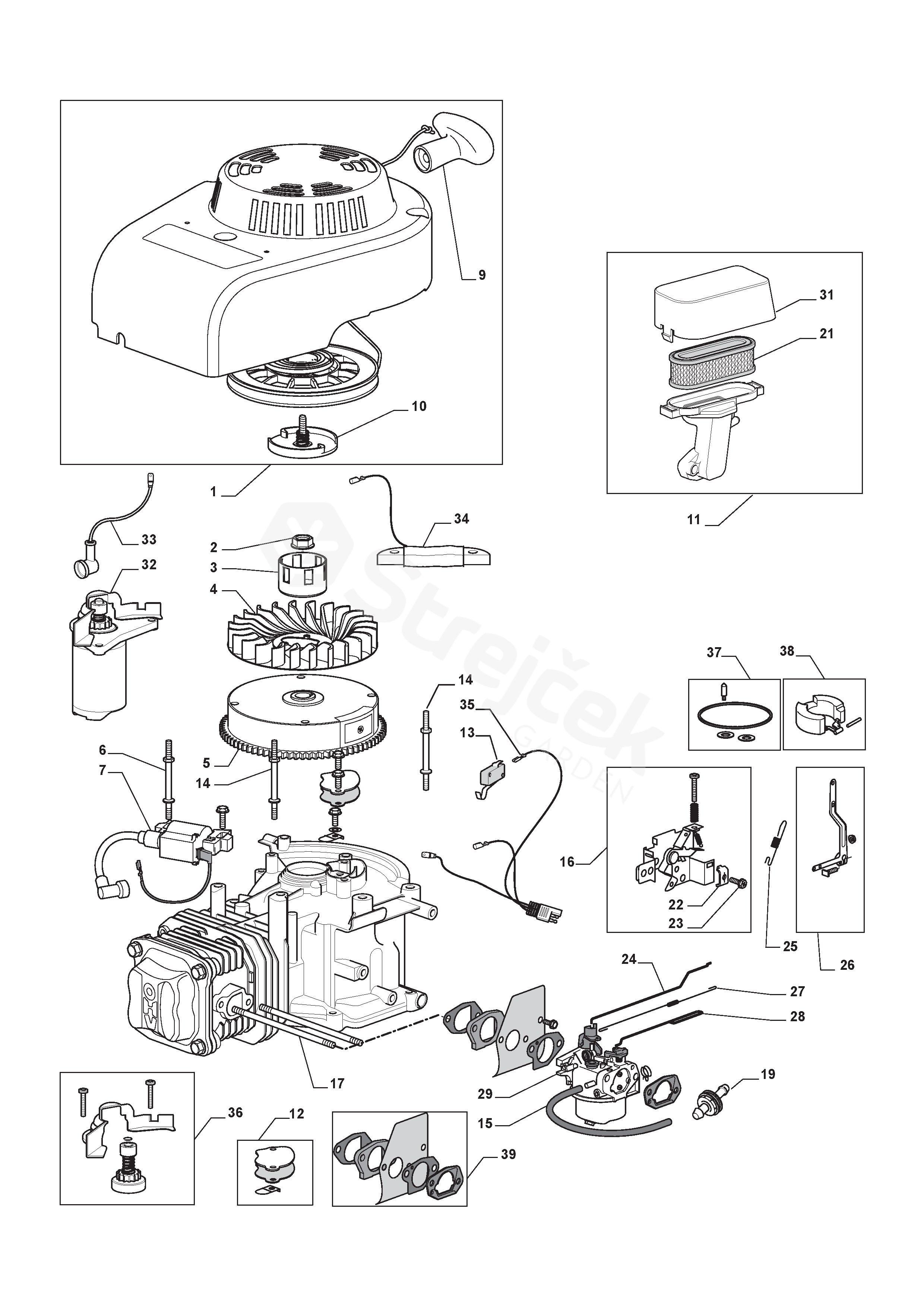

Engine - ST. WBE0704
GARDEN COMPACT EV
GARDEN COMPACT EV (2009) [2T0314781/09]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
GARDEN COMPACT EV (2009) [2T0314781/09]
1
Starter Assy
118550277/0
2
Nut
118550336/0
3
Starter Cup
118550335/0
4
Flywheel Fan
118550254/0
5
Flywheel Ass.Y
118550418/0
6
Stud Bolt
118550301/0
7
Electronic Coil
118550417/0
9
Starter Handle
118550274/0
10
Starter Pawl Set
118550275/0
11
Air Cleaner Assy
118550423/0
12
Gasket Assy
118550305/0
13
Micro
118550399/0
14
Stud Bolt
118550302/0
15
Fuel Pipe
118550428/0
16
Remote Control Assy
118550398/0
17
Stud Bolt
118550412/0
19
Fuel Filter
118550427/0
21
Air Filter
118550421/0
22
Casing Clamp
118550337/0
23
Screw
118550338/0
24
Governor Link
118550424/0
25
Spring
118550261/0
26
Arm Governor Assy
118550267/0
27
Spring
118550263/0
28
Choke Control Rod
118550265/0
29
Carburetor
118550252/0
31
Air Cleaner Cover
118550422/0
32
Start Motor Assy
118550401/0
33
Switch Wires
118550395/0
34
Coil Assy, Charge
118550420/0
35
Switch Wires
118550419/0
36
Kit Repair
118550402/0
37
Kit Repair, Carburettor
118550388/0
38
Kit Repair
118550389/0
39
Gasket Carburettor Assy
118550249/0
