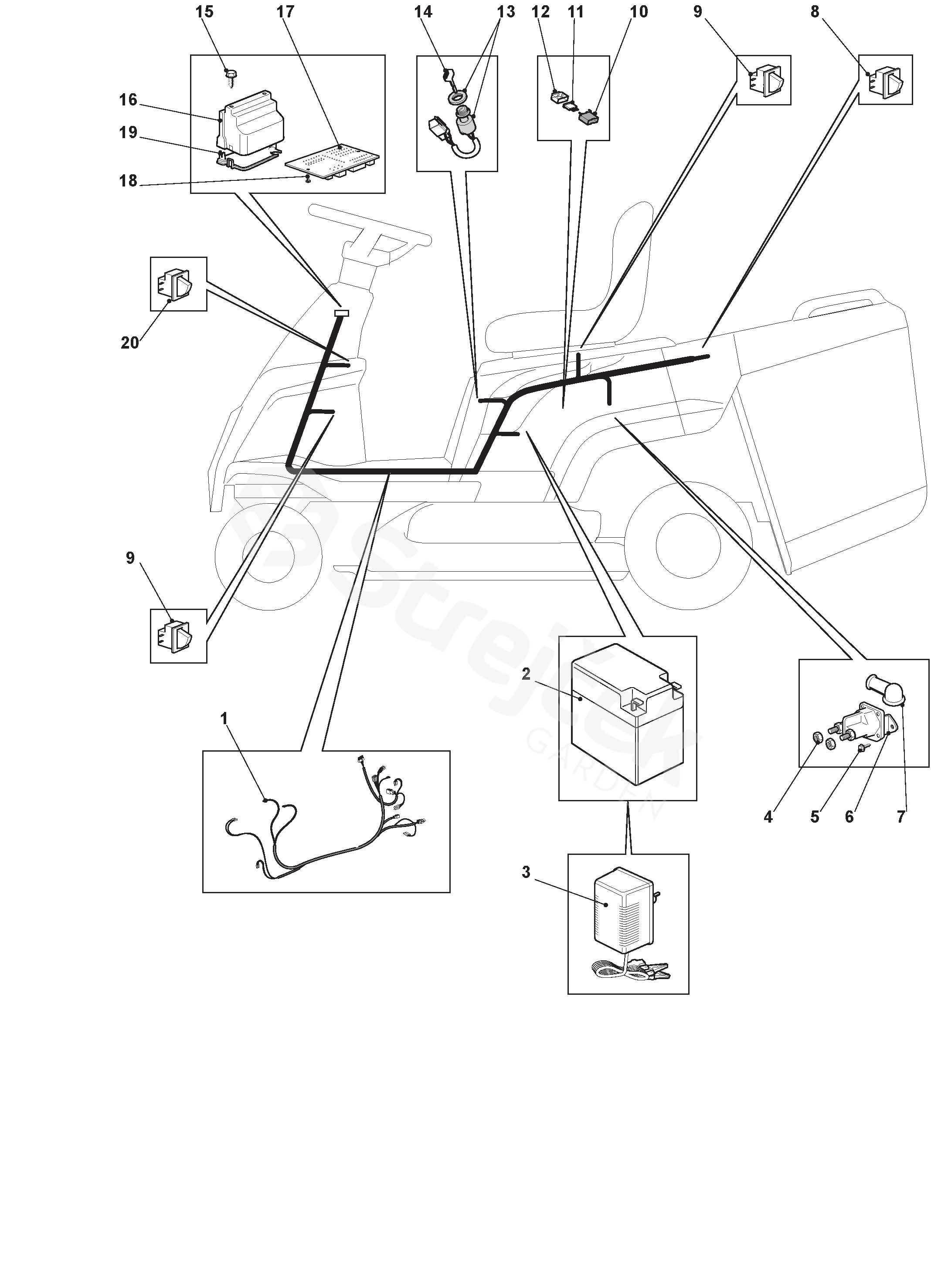

Spare parts > STIGA > Lawn Tractor > COMBI 1066 F COMBI 1066 F (2018) > Electrical Parts
Back to
Electrical Parts
COMBI 1066 F COMBI 1066 F (2018)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For COMBI 1066 F (2018)
1 Cables Ass.Y - ISO
From 01-January-2020 		184040139/0
2 Battery
To 31-August-2015 		118120012/0
3 Battery Charger 12V 1A - CE Plugg
CE plug - 12V 1A 		182180090/0
4 Nut 112360352/0
5 Screw 112735110/0
6 Starter Relay 118736113/0
7 Protection
From 01-September-2017 		118564861/1
8 Microswitch
From 01-January-2020 		119410618/0
9 Microswitch
From 01-May-2019 		119410613/0
10 Fuse carrier 133500007/0
11 Fuse 10 A 133340040/0
12 Cover 133215000/0
13 Starting Switch 118450075/1
14 Starting Key 118210023/0
15 Screw
From 01-September-2013 		112728711/0
16 Electronis Card Upper Protecti 127600119/0
17 Electronic Card
From 01-September-2015 		127722359/1
18 Screw 112729601/1
19 Electronic Card Lower Protection 127600118/0
20 Microswitch 119410614/0
