Spare parts > STIGA > Lawn Tractor > GARDEN COMBI HST GARDEN COMBI HST (2013) [2T0220281/13] > Transmission
Back to

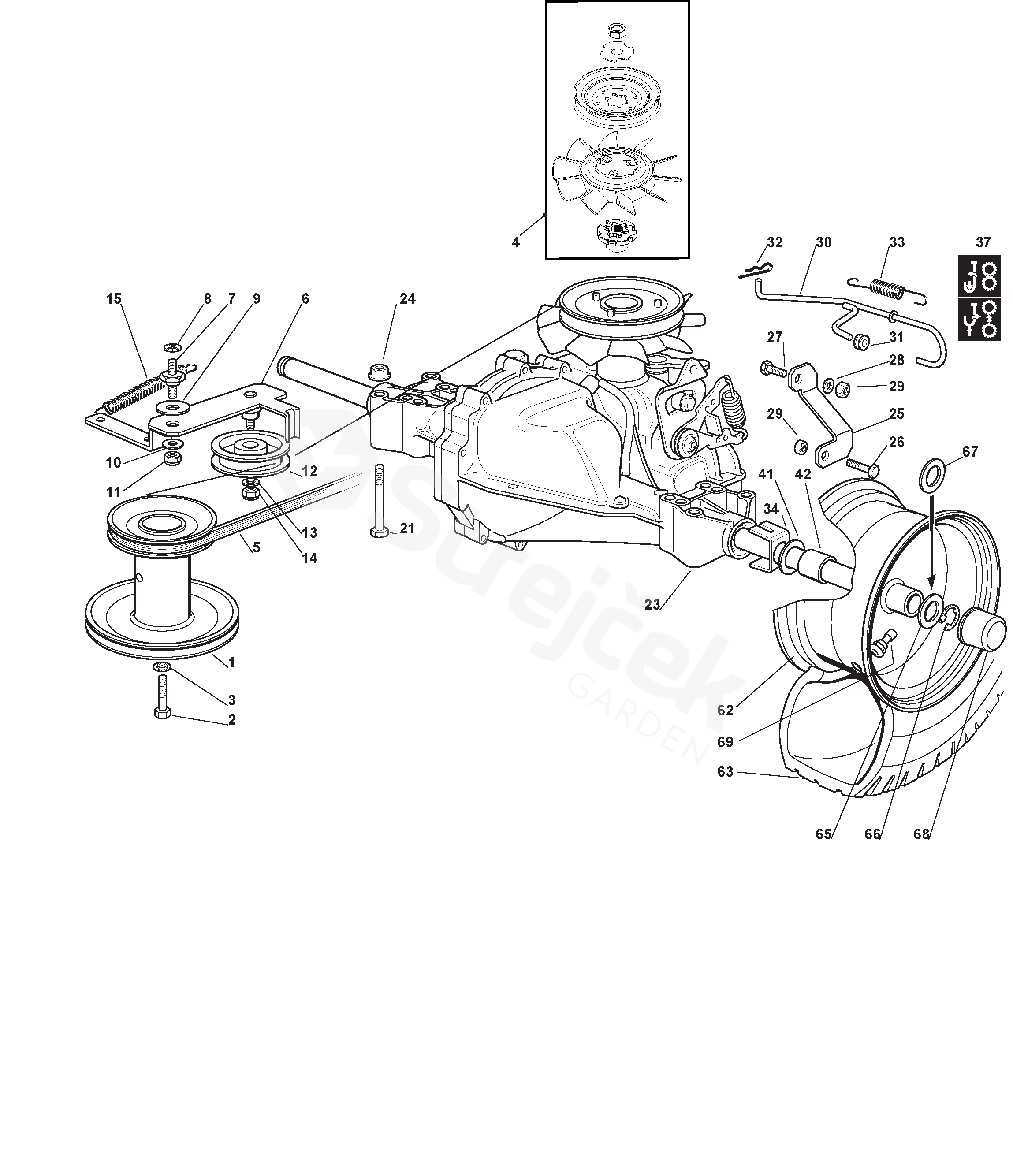

Transmission
GARDEN COMBI HST GARDEN COMBI HST (2013) [2T0220281/13]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For GARDEN COMBI HST (2013) [2T0220281/13]
1 Pulley 127604005/0
2 Screw 112737310/0
3 Washer 112543000/0
4 Fan Kit 1139-2202-01
5 Belt 135061407/0
6 Lever 384317067/1
7 Fulcrum Pin 127510096/0
8 Washer 112540260/0
9 Antifriction Washer 322672151/0
10 Antifriction Washer 325670011/0
11 Nut 112155010/0
12 Pulley 125601554/0
13 Washer 112523060/0
14 Nut 112155000/0
15 Spring 122446402/1
21 Screw 112691800/0
23 Rear Axle (Hydro-Gear T2-Bdbe-2X1A-16X1) 118400976/2
24 Nut 112154210/0
25 Support 327787075/0
26 Screw 112691400/0
27 Screw 112793102/0
28 Washer 112521350/0
30 Rod 384002087/0
31 Fairlead 118564512/0
32 Cotter Pin 124487997/0
33 Spring 125430213/0
34 Washer 327670058/0
37 Label 114365167/0
41 Washer 125670006/0
42 Spacer 127160059/0
62 Rimm 184044013/0
63 Tyre 15x6.00x6 CARLISLE 127590051/0
65 Washer 125670005/2
66 Benzing Ring 112001010/0
68 Hub Cover 122110230/0
69 Valve 125950000/0
