Spare parts > STIGA > Lawn Tractor > SCOOP SCOOP (1999) [13-2020-22] > Cutting Plate
Back to

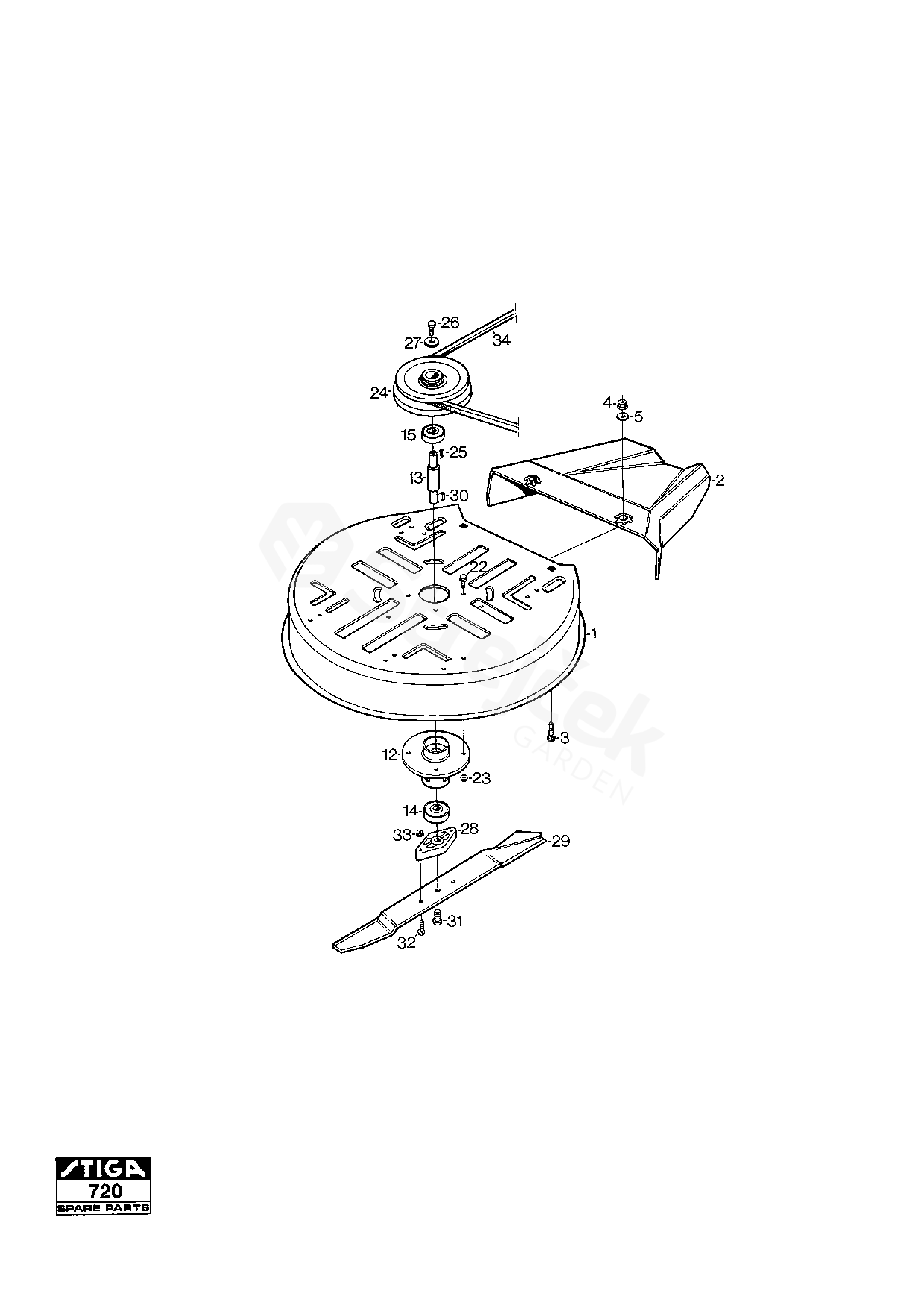

Cutting Plate
SCOOP SCOOP (1999) [13-2020-22]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SCOOP (1999) [13-2020-22]
1 Mower Deck (65B) Black 1134-3125-02
2 Discharge shield 1134-3153-01
3 Screw 9898-0820-16
4 Nut 9747-0831-02
12 Bearing Box Assy. 1134-2147-01
13 Blade Shaft 1134-2083-01
14 Ball Bearing 9549-0014-00
15 Ball Bearing 9549-0027-00
22 Screw 9959-0820-16
23 Nut 9739-0831-22
24 Belt Pulley
D = 184 mm 		1134-3183-01
25 Key 1134-0323-00
26 Screw 9991-1024-19
27 Washer 9699-0030-02
28 Blade Holder 1134-2082-01
29 Bearing 1134-2061-01
32 Screw 9959-0830-16
34 Belt
Replaced by Service Code: 1134-9033-01 		9585-0076-00
