Spare parts > STIGA > Lawn Tractor > SCOOP 972 MULTICLIP SCOOP 972 MULTICLIP (1999) > Cutting Plate
Back to

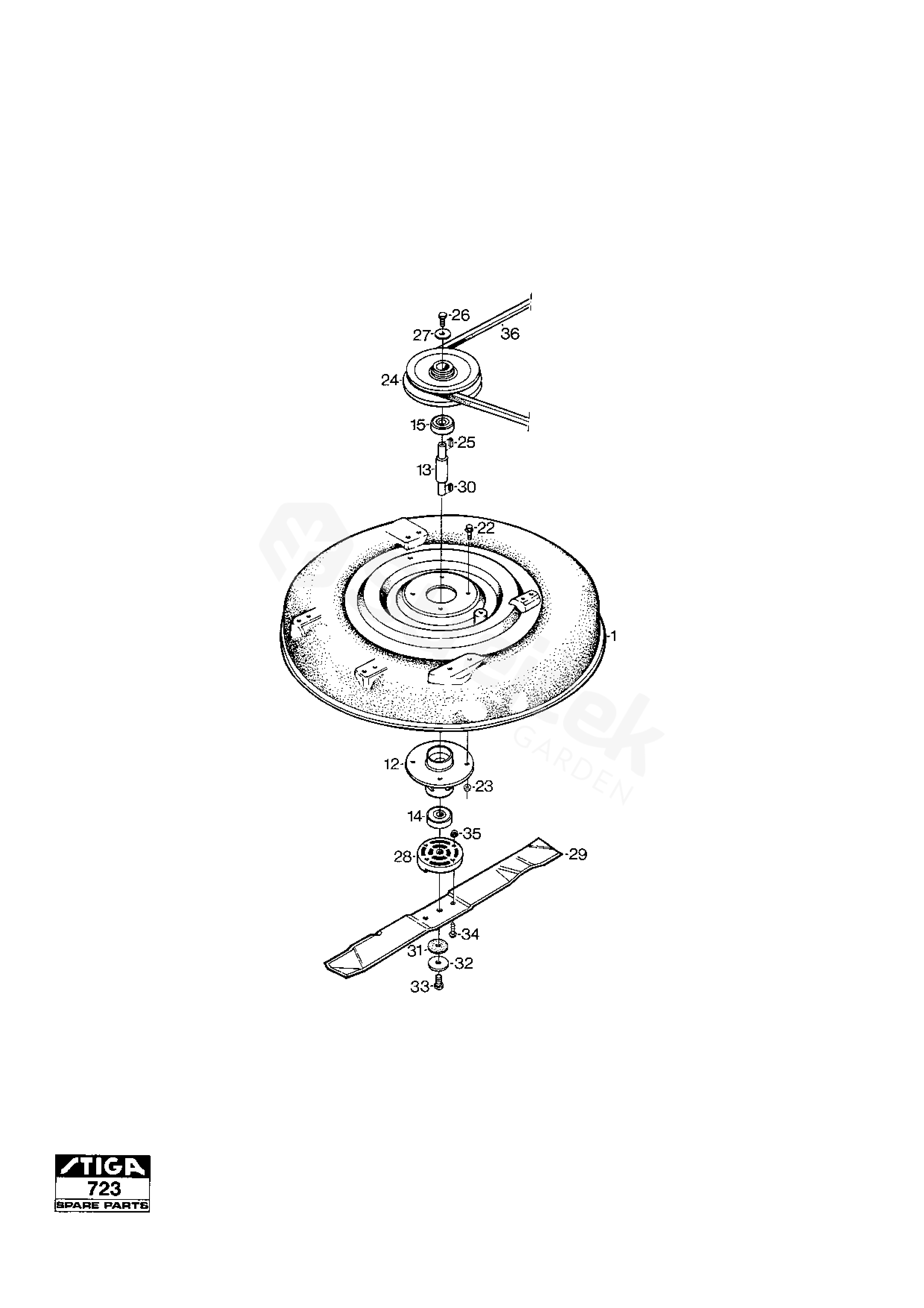

Cutting Plate
SCOOP 972 MULTICLIP SCOOP 972 MULTICLIP (1999)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SCOOP 972 MULTICLIP (1999)
1 Casing-Mower Deck Yellow 1134-3742-01
12 Bearing Box Assy. 1134-2147-01
13 Blade Shaft 1134-2083-01
14 Ball Bearing 9549-0014-00
15 Ball Bearing 9549-0027-00
22 Screw 9959-0820-16
23 Nut 9739-0831-22
24 Belt Pulley
D = 184 mm 		1134-3183-01
25 Key 1134-0323-00
26 Screw 9991-1024-19
27 Washer 9699-0030-02
28 Blade Holder 1134-3744-01
29 Blade 1134-3743-01
31 Fibre Washer 1134-3544-01
32 Washer 9699-0109-02
34 Screw 9997-0835-12
36 V-Belt
Replaced by Service Code: 1134-9048-01 		9585-0122-00
