STIGA
>
Lawn Tractor
>
ESTATE 4092 H ESTATE 4092 H (2018) [2T0430481/ST1]
>

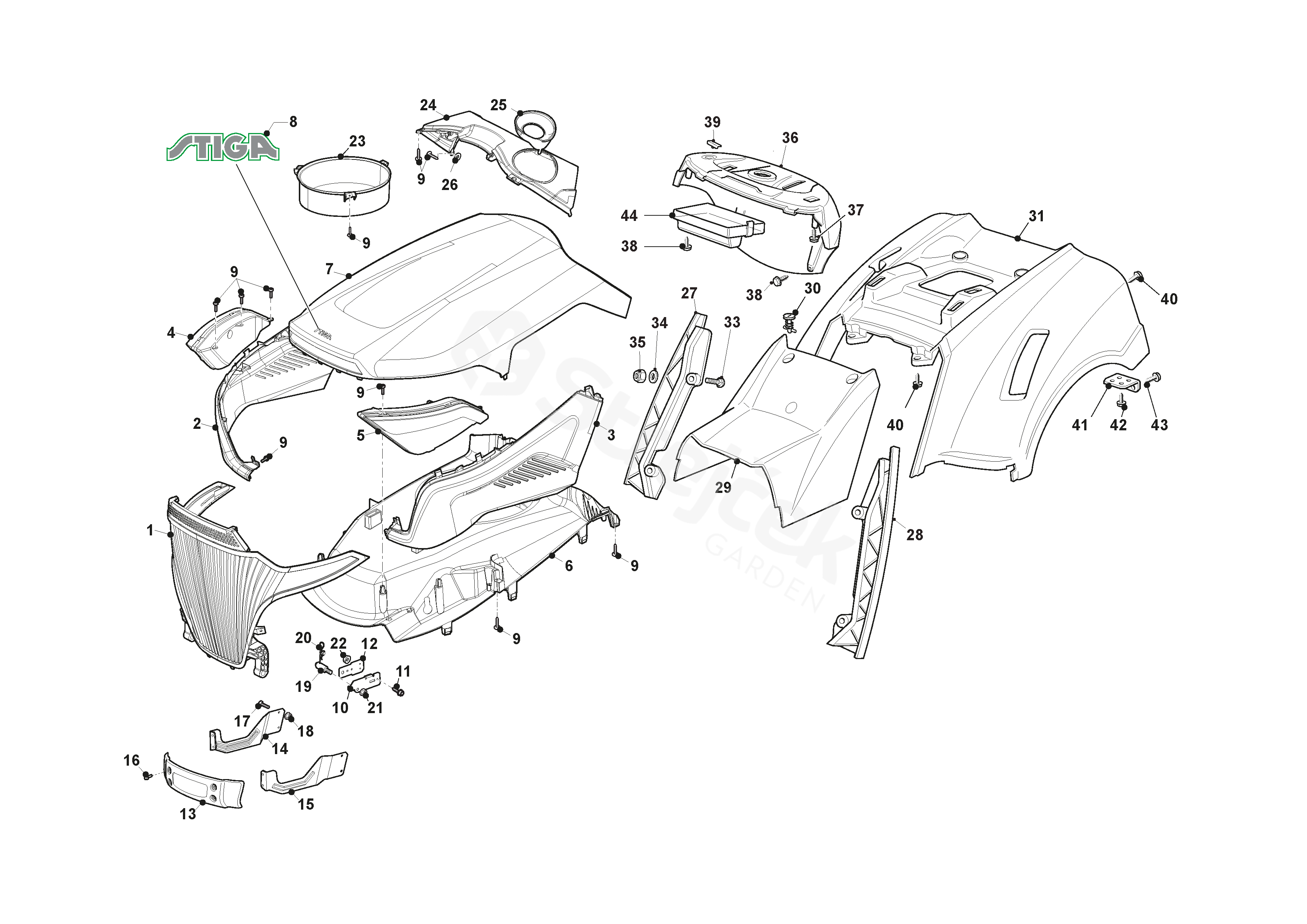

Body
Back to
ESTATE 4092 H
ESTATE 4092 H (2018) [2T0430481/ST1]
Body
ESTATE 4092 H
ESTATE 4092 H (2018) [2T0430481/ST1]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
ESTATE 4092 H (2018) [2T0430481/ST1]
1
Frontal Bonnet
325076981/0
2
Right Bonnet Side
325207270/0
3
Left Bonnet Side
325207271/0
4
Right Led Light
382185508/0
5
Left Led Light
382185509/0
6
Air Conveyor, Yellow
325108100/1
7
Upper Engine Hood, Yellow
325076978/0
8
Label
114367495/1
9
Screw
112728698/0
10
Mobile Bonnet Fulcrum Bracket
325774689/1
11
Screw
From 01-September-2018
112735599/0
12
Fixed Bonnet Fulcrum Bracket
325774691/2
13
Bumper
382263503/0
14
Right Support
382785259/0
15
Left Support
382785261/0
16
Screw
127943051/0
17
Screw
112800815/0
18
Nut
112155000/0
19
Pin
125510068/0
20
Cotter Pin
124487998/0
21
Nut
112154220/0
22
Nut
112154510/0
23
Conveyor
L=60
325108101/0
24
Extension Dashboard w/Hole
325598056/1
25
Cover Tank
325207272/0
26
Washer
112523030/0
27
Right Dashboard Support
325599019/0
28
Left Dashboard Support
325599020/0
29
Central Cover, Yellow
325110365/0
30
Stake
125580020/2
31
Yellow Wheels Cover
325110323/0
33
Screw
112815210/0
34
Washer
112521330/0
35
Nut
112154510/0
36
Dashboard
Grey NCS8000N
325120273/0
37
Screw
112728440/0
38
Screw
112735402/0
39
Grommet
125260000/0
40
Screw
112735402/0
41
Bracket
325755041/0
42
Screw
112728686/0
43
Screw
112735110/0
44
Card Protection
325600074/0
