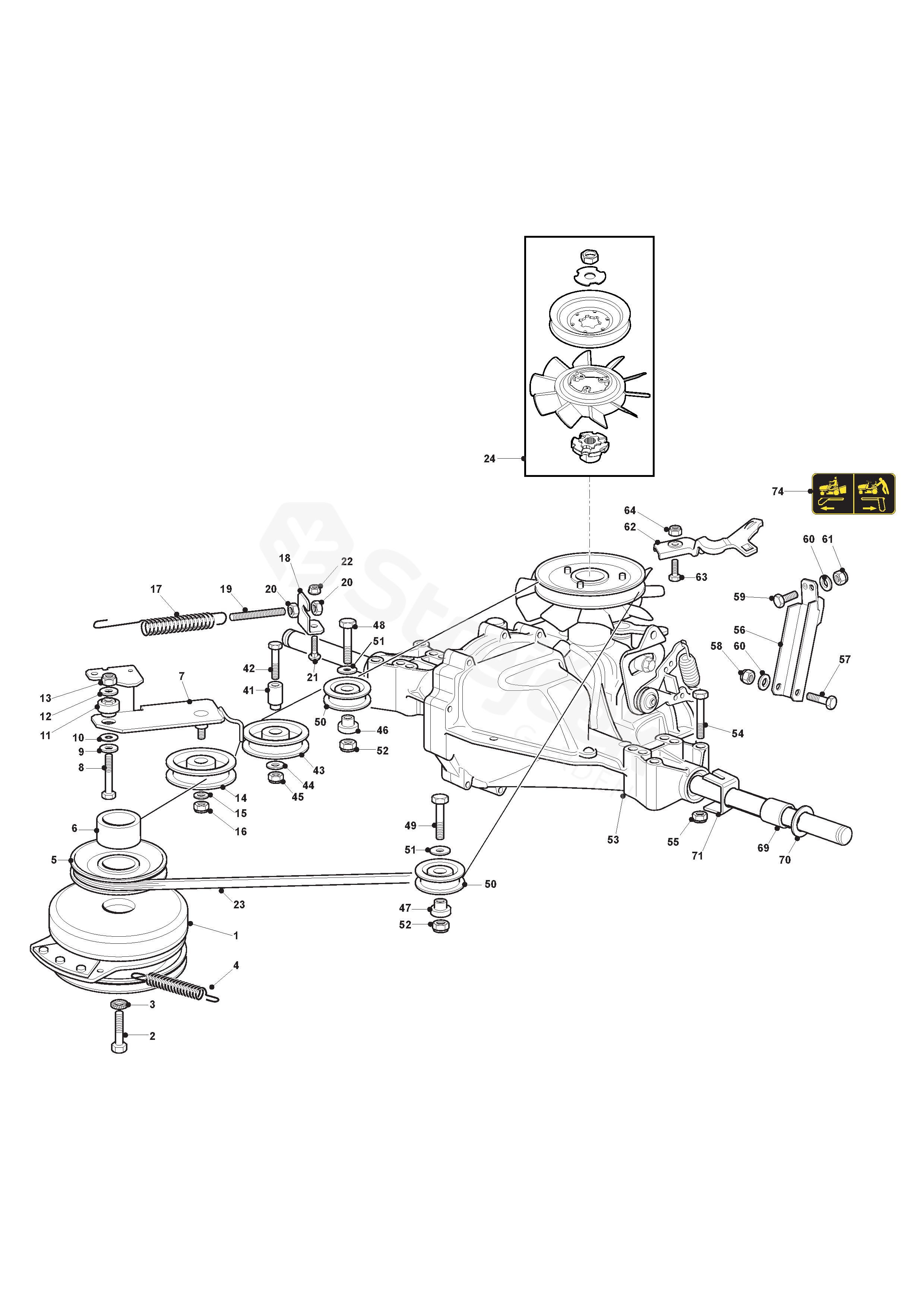

Spare parts - Partlist - ESTATE 5092 HW ESTATE 5092 HW (2020) - Hydrogear Transmission with Electromagnetic Clutch

Everything for your machines

ESTATE 5092 HW ESTATE 5092 HW (2020)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ESTATE 5092 HW (2020)

1	Electromagnetic Clutch	118399063/0
2	Screw	112737320/0
3	Washer	112543000/0
4	Tension Spring	122430216/0
5	Pulley	125601577/0
6	Spacer	125160021/0
7	Lever	382318217/1
8	Screw	112691115/0
9	Washer	112523060/0
10	Antifriction Washer	327670055/0
11	Pin	125510087/0
12	Washer	112523060/0
13	Nut	112155000/0
14	Pulley	125601554/0
15	Washer	112523060/0
16	Nut	112155000/0
17	Spring	125430260/1
18	Bracket	325755049/0
19	Tie Rod	125840005/0
20	Nut	112293200/0
21	Screw	9897-0820-16
22	Nut	112293201/0
23	Belt	135062019/0
24	Fan Kit	118802723/0
41	Pin	125160080/0
42	Screw	112691800/0
43	Pulley	325601599/0
44	Washer	112523060/0
45	Nut	112155000/0
46	Spacer	127160064/0
47	Spacer	127160064/0
48	Screw	112691115/0
49	Screw	112691115/0
50	Pulley	382601522/0
51	Washer	112523070/0
52	Nut	112155000/0
53	Rear Axle (Hydro-Gear T2-Adbf-2X3C-17X1)	118400919/2
54	Screw	112691600/0
55	Nut	112154210/0
56	Support	382785199/0
57	Screw	112691700/0
58	Nut	112155000/0
59	Screw	112793701/0
60	Washer	112523060/0
61	Nut	112155000/0
62	Lever	325318253/0
63	Screw	112791213/1
64	Nut	112154210/0
69	Spacer	125160058/0
70	Washer	125670005/2
71	Washer supplied with the transmission	325670025/0
74	Label	114361451/0
