Spare parts > STIGA > Lawn Tractor > ESTATE COLLECTOR ESTATE COLLECTOR (2009) [2T2242761/09] > Transmission
Back to

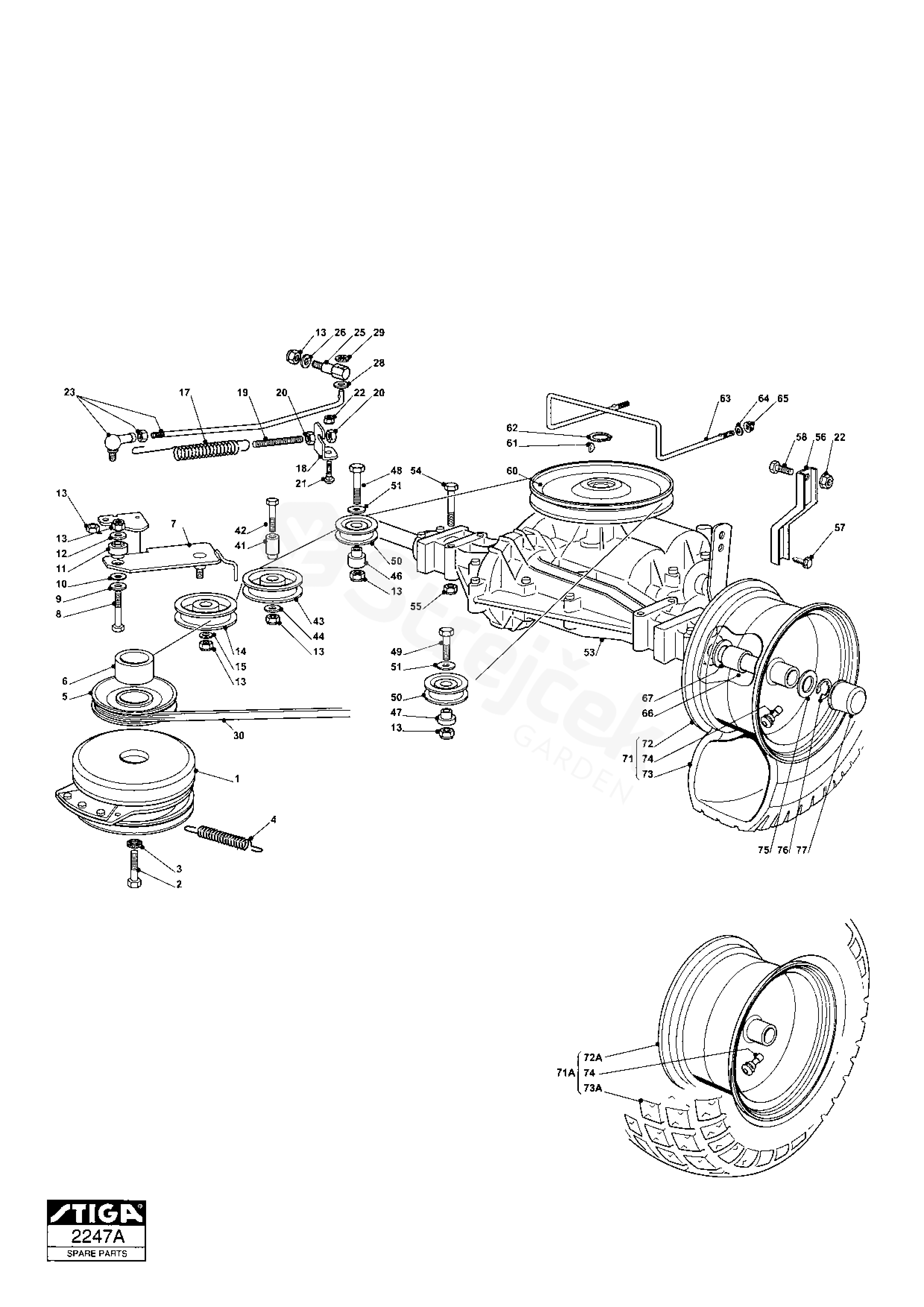

Transmission
ESTATE COLLECTOR ESTATE COLLECTOR (2009) [2T2242761/09]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ESTATE COLLECTOR (2009) [2T2242761/09]
1 Electromagnetic Clutch
T224 2761 T224 4724 		118399063/0
2 Screw
T224 2761 T224 4724 		112737320/0
3 Washer
T224 2761 T224 4724 		112543000/0
4 Tension Spring
T224 2761 T224 4724 		122430216/0
5 Pulley
T224 2761 T224 4724 		125601567/0
6 Spacer
T224 2761 T224 4724 		125160021/0
7 Lever
T224 2761 T224 4724 		382318217/0
8 Screw
T224 2761 T224 4724 		112691115/0
9 Washer
T224 2761 T224 4724 		112523060/0
10 Antifriction Washer
T224 2761 T224 4724 		327670055/0
11 Pin
T224 2761 T224 4724 		125510087/0
12 Washer
T224 2761 T224 4724 		112523060/0
13 Nut
T224 2761 T224 4724 		112155000/0
14 Pulley
T224 2761 T224 4724 		125601554/0
15 Washer
T224 2761 T224 4724 		112523060/0
17 Spring
T224 2761 T224 4724 		125430260/0
18 Bracket
T224 2761 T224 4724 		325755049/0
19 Tie Rod
T224 2761 T224 4724 		125840005/0
20 Nut
T224 2761 T224 4724 		112293200/0
21 Screw
T224 2761 T224 4724 		112818690/0
22 Nut
T224 2761 T224 4724 		112293201/0
23 Tie Rod
T224 2761 T224 4724 		382820013/0
25 Pin
T224 2761 T224 4724 		125510063/0
26 Antifriction Washer
T224 2761 T224 4724 		325670011/0
28 Washer
T224 2761 T224 4724 		112521350/0
29 Crown Fastener
T224 2761 T224 4724 		112604899/0
30 Belt
T224 2761 T224 4724 		135062012/0
41 Pin
T224 2761 T224 4724 		125510100/0
42 Screw
T224 2761 T224 4724 		112691800/0
43 Pulley
T224 2761 T224 4724 		125601555/0
44 Washer
T224 2761 T224 4724 		112523060/0
46 Spacer
T224 2761 T224 4724 		125160014/1
47 Left Spacer
T224 2761 T224 4724 		125160018/1
48 Screw
T224 2761 T224 4724 		112691200/0
49 Screw
T224 2761 T224 4724 		112691100/0
50 Pulley
T224 2761 T224 4724 		125601588/0
51 Washer
T224 2761 T224 4724 		122671653/0
53 Rear Axle (Dana 4360-211)
Dana 4360-211 _ T224 2761 T224 4724 		118400912/0
54 Screw
T224 2761 T224 4724 		112691900/0
55 Nut
T224 2761 T224 4724 		112154210/0
56 Bracket
T224 2761 T224 4724 		325774247/0
57 Screw
T224 2761 T224 4724 		112735150/0
58 Screw
T224 2761 T224 4724 		112792611/0
60 Pulley
T224 2761 T224 4724 		182601509/0
61 Key
T224 2761 T224 4724 		112139430/0
62 Seeger
T224 2761 T224 4724 		112608950/0
63 Belt Guide
T224 2761 T224 4724 		125270321/0
64 Washer
T224 2761 T224 4724 		112523040/0
65 Nut
T224 2761 T224 4724 		112292102/0
66 Spacer
T224 2761 T224 4724 		125160034/0
67 Washer
T224 2761 T224 4724 		112521410/0
71 Rear Wheel Assy
Inkl. pos 72-74 _ T224 2761 T224 4724 		382680006/0
72 Rear Wheel Rimm
T224 2761 T224 4724 		182000592/0
73 Shoe Deli Tire 160/50-8
Deli _ T224 2761 T224 4724 		125590003/0
74 Valve
T224 2761 T224 4724 		125950000/0
75 Washer
T224 2761 T224 4724 		125670005/1
76 Benzing Ring
T224 2761 T224 4724 		112001010/0
77 Hub Cover
T224 2761 T224 4724 		122110230/0
71A Wheel 382680013/1
72A Rim 182000596/0
73A Tyre 18x8.00-8 2PR K383 KENDA 125590006/0
