Spare parts > STIGA > Lawn Tractor > ESTATE 6102 HWG ESTATE 6102 HWG (2018) > Grasscatcher
Back to

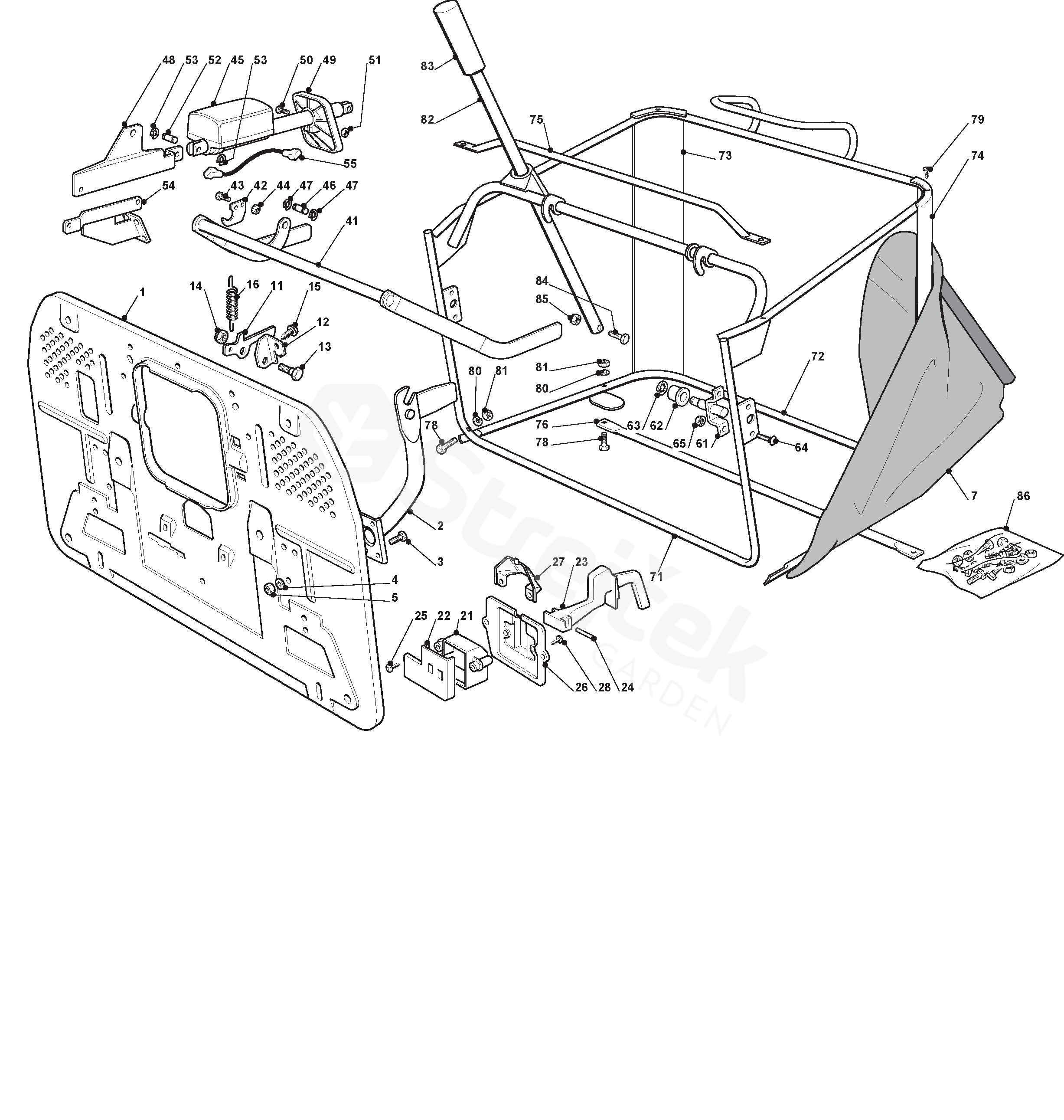

Grasscatcher
ESTATE 6102 HWG ESTATE 6102 HWG (2018)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ESTATE 6102 HWG (2018)
1 Rear Plate
From 01-September-2016 		382547053/0
2 Support 382774245/0
3 Screw 112793102/0
4 Washer 112523060/0
5 Nut 112293201/0
7 Grasscatcher
Black with STIGA Logo 		182105934/0
11 Clamp
To 31-August-2010 		325774417/0
12 Clamp
From 01-September-2015 		325755031/0
13 Pin
From 01-September-2016 		125510080/2
14 Nut 112292102/0
15 Screw
From 01-September-2016 		112735661/0
16 Brake Spring
To 31-August-2010 		125430210/1
21 Grassc.Full Micro Protection Tcj-F 125600041/0
22 Grasscatcher Micro Prot Cover 125600042/0
23 Full Grassc. Microswtich Cover 125318124/0
24 Pin 112400030/0
25 Screw 112728510/0
26 Micro Protection
From 01-September-2017 		325785272/1
27 Empty Micro Grassc.Protection Cover 125600048/0
28 Screw 112728450/0
41 Axle 382000507/0
42 Grasscatcher Lifting Axle Clam
From 01-September-2013 		325774317/0
43 Screw 112815210/0
44 Nut 112154510/0
45 Actuator 118001000/0
46 Pin
From 01-September-2013 		125510083/1
47 Benzing Ring 112000955/0
48 Actuator Support
From 01-September-2013 		325785197/1
49 Protection 325600060/0
50 Screw 112727795/0
51 Nut 112154330/0
52 Pin
From 01-September-2013 		125510083/0
53 Benzing Ring 112000955/0
54 Stiffening
From 01-September-2012 		382650209/1
55 Connecting Cable 125065030/0
61 Support 382785147/0
62 Roll
From 01-September-2013 		125690001/1
63 Benzing Ring 112000956/0
64 Screw
To 31-August-2017 		112818690/0
65 Nut 112293201/0
71 Upper Frame 382800093/0
72 Lower Grasscatcher Frame 382800002/2
73 Right Angular Support 325032001/1
74 Left Angular Support 325032002/1
75 Front Handle 382394001/2
76 Lower Stiffening
From S/N 19KA1RON000001 		382650038/0
78 Screw 112792099/0
79 Screw 112729601/1
80 Grower 112582101/0
81 Nut 112292100/0
82 Grasscatcher Lifting Tube 125869029/1
83 Knob 125394508/0
84 Screw 112792099/0
85 Nut 112154510/0
86 Outfit, Screws 382180045/0
