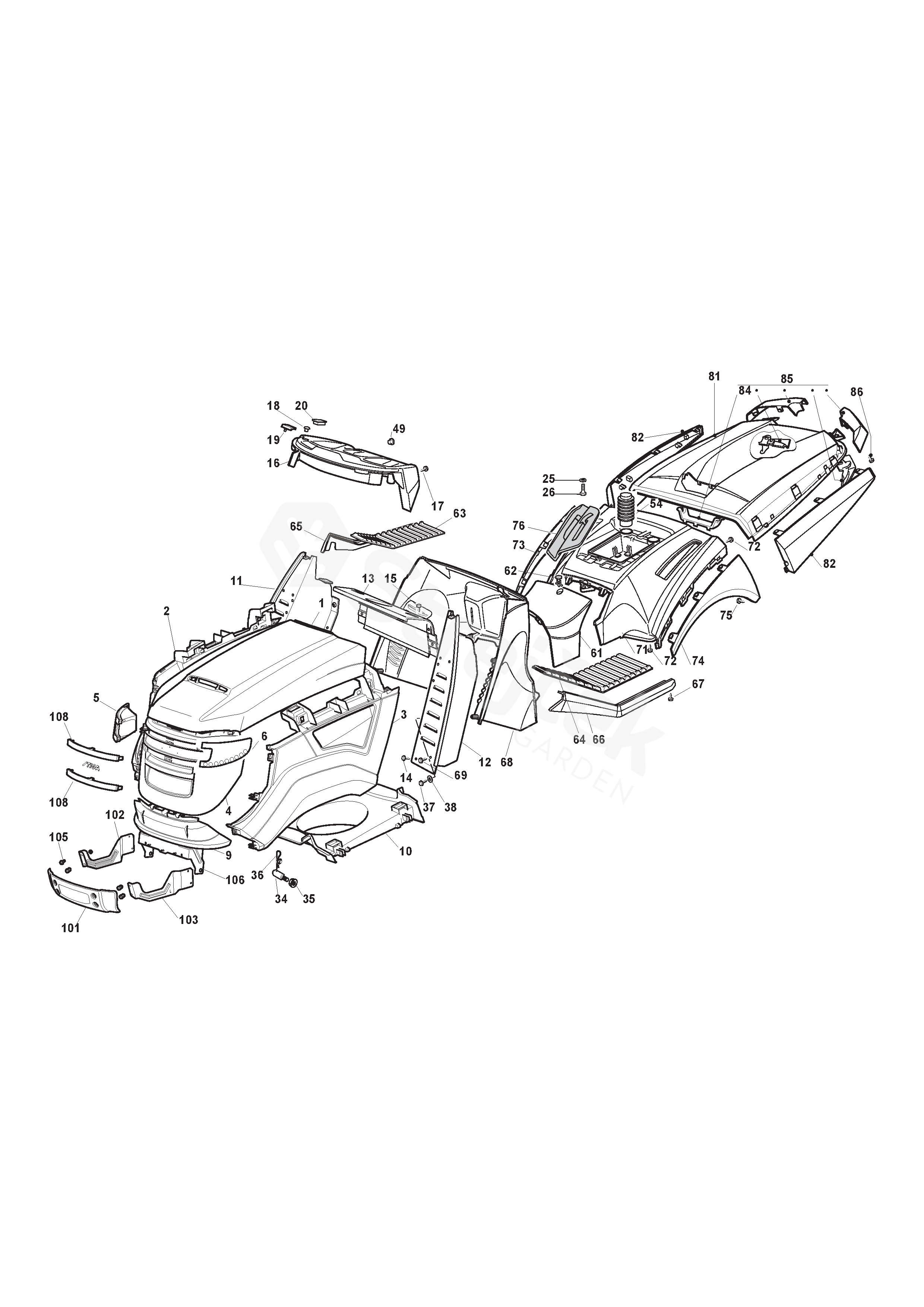

Spare parts - Partlist - ESTATE 7102 HWS ESTATE 7102 HWS (2014) - Body

Everything for your machines

ESTATE 7102 HWS ESTATE 7102 HWS (2014)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ESTATE 7102 HWS (2014)

1	Upper Engine Hood, Yellow	325076866/0
2	Side Hood, Right	382394645/0
3	Side Hood, Left	382394646/0
4	Hood Front, Grey	325076953/0
5	Right Led Light Assy	382185500/0
6	Left Led Light Assy	382185501/0
9	Lower Grey Hood, Front	325076959/0
10	Conveyor	325108031/0
11	Right Dashboard Support	382785022/9
12	Left Dashboard Support	382785021/8
13	Central Dashboard Support	382785137/1
14	Screw	112735110/0
15	Screw	112735110/0
16	Dashboard, Black (Cruise Control)	325120205/0
17	Screw	112728440/0
18	Cap	125120200/0
19	Grommet	125260000/0
20	Cap Hour Counter and Clutch Switch closing cap	325120234/1
25	Grower	112583500/0
26	Screw	112793102/0
34	Pin	125510068/0
35	Nut	112293201/0
36	Cotter Pin	124487998/0
37	Screw	112731350/0
38	Washer	112521330/0
49	Cap Starter control hole closing cap	325120233/0
54	Hood	325737002/0
61	Grey Central Cover	325110466/0
62	Stake	125580020/2
63	Right Footboard Cover	325110278/1
64	Left Footboard Cover	325110279/0
65	Right, Footboard Profile	325599017/0
66	Left, Footboard Profile	325599018/0
67	Screw	112731580/0
68	Black Dashboard Support	325785449/0
69	Screw	112735403/0
71	Yellow Wheels Cover	325109754/0
72	Screw	112735402/0
73	Right Wheel Cover	325109793/0
74	Left Wheel Cover	325109794/0
75	Screw	112728686/0
76	Cover, Can Holder	325207129/0
81	Grass-Catcher Cover	325110308/0
82	Side Profil Assy	382110299/0
84	Handle Cover	325394009/0
85	Angular Support Assy	382110300/0
86	Screw	112735403/0
101	Bumper	382263503/0
102	Right Support	382785251/0
103	Left Support	382785253/0
105	Screw	112800815/0
106	Engine Hood Support	325774301/2
108	Frontal Moulding	325076956/0
