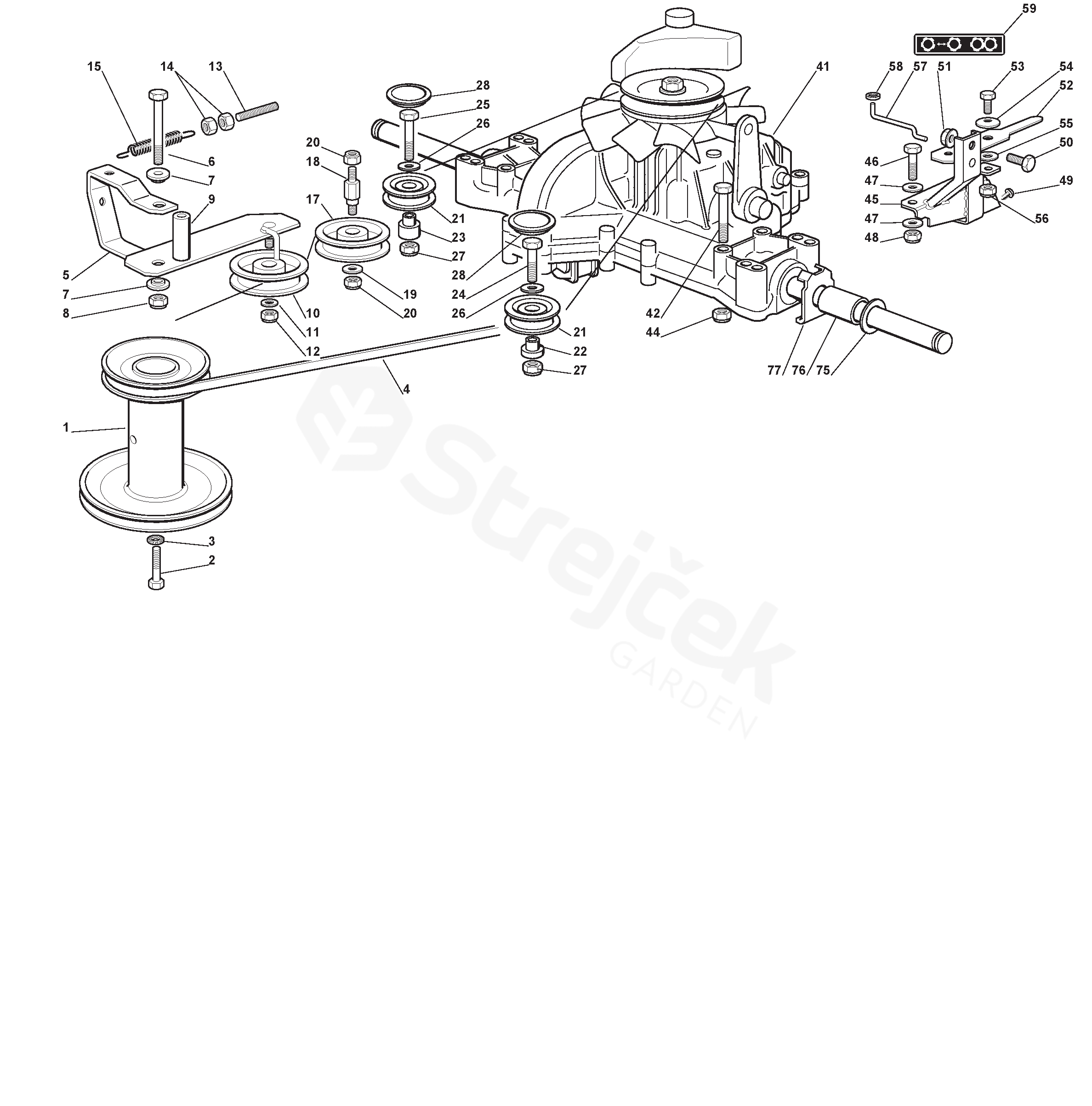

ESTATE BARON ESTATE BARON (2008) [13-2534-13]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ESTATE BARON (2008) [13-2534-13]

1	Pulley	125601568/0
2	Screw	112737310/0
3	Washer	112543000/0
4	Trapezoidal Belt	135062001/0
5	Lever	382318165/1
6	Screw	112692000/0
7	Bushing	125038002/1
8	Nut	112155000/0
9	Spacer	125160027/0
10	Pulley	125601554/0
11	Washer	112523060/0
12	Nut	112155000/0
13	Tie Rod	125840010/1
14	Nut	112293200/0
15	Spring	125430219/0
17	Pulley	125601555/0
18	Pin From 01-September-2003	125510036/0
19	Washer	112523060/0
20	Nut	112155000/0
21	Pulley From 01-September-2009	325601570/1
22	Left Spacer From 01-September-2009	125160030/1
23	Right Spacer From 01-September-2008	125160024/2
24	Screw	112691115/0
25	Screw	112691400/0
26	Washer	112523060/0
27	Nut	112155000/0
28	Cover	125109521/1
41	Rear Axle Tuff Torq K46F	118400950/1
42	Screw	112691800/0
44	Nut	112154210/0
45	Support	382785109/0
46	Screw	112691200/0
47	Washer	112521350/0
48	Nut	112155000/0
49	Screw	112735120/0
50	Screw	112792611/0
51	Nut	112293201/0
52	Lever	325318157/0
53	Screw	112793102/0
54	Elastic Washer	112369500/0
55	Antifriction Washer	325670011/0
56	Nut	112155000/0
57	Rod	125033033/0
58	Crown Fastener	112604896/0
59	Label	114357423/2
75	Washer	125670005/1
76	Spacer	125160023/0
77	Washer	325670025/0
