STIGA
>
Lawn Tractor
>
ESTATE ROYAL E ESTATE ROYAL E (2007) [13-2559-12]
>
Grass Catcher
Back to
ESTATE ROYAL E
ESTATE ROYAL E (2007) [13-2559-12]
Grass Catcher
ESTATE ROYAL E
ESTATE ROYAL E (2007) [13-2559-12]

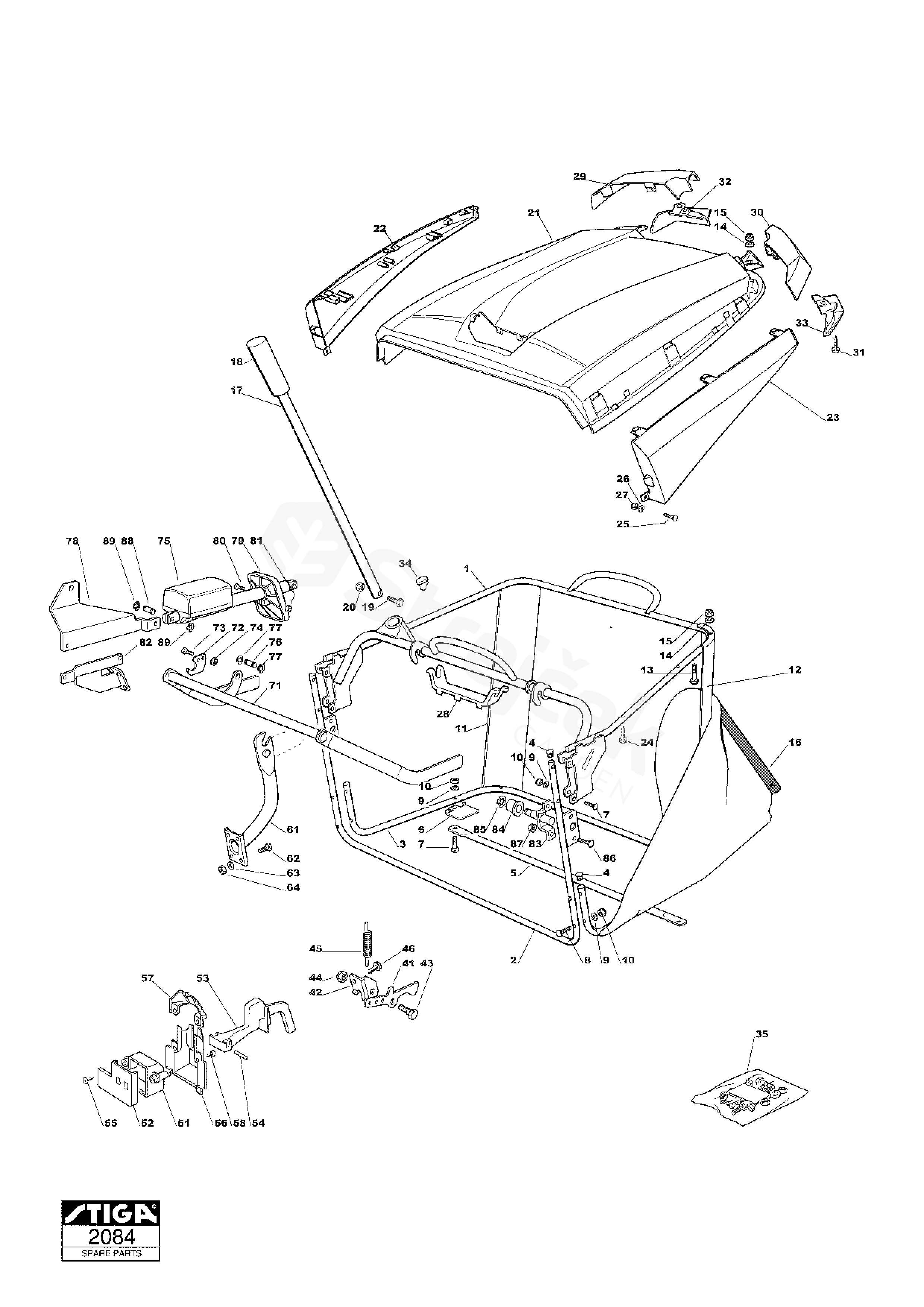

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
ESTATE ROYAL E (2007) [13-2559-12]
1
Upper Grassbox Frame
382800079/0
2
Front Grassbox Frame
382800089/0
3
Lower Grassbox Frame
325800017/0
4
Polyethylene Push Road D=20inch
118566112/0
5
Lower Stiffening
382650043/0
6
Plate
325547131/0
7
Screw
112815220/0
8
Screw
112815245/0
9
Washer
112521330/0
10
Nut
112154510/0
11
Right Angular Support
325032013/0
12
Left Angular Support
325032015/0
13
Screw
112689500/0
14
Washer
112521330/0
15
Nut
112154510/0
16
Grasscatcher
182105980/0
17
Grasscatcher Lifting Tube
125869029/1
18
Knob
125394508/0
19
Screw
112674550/0
20
Nut
112154510/0
21
Grass-Catcher Cover
325110308/0
22
Cover Rh
325109750/0
23
Side Cover Left
325109751/0
24
Screw
12735410/0
25
Screw
112815220/0
26
Washer
112521330/0
27
Nut
112154510/0
28
Handle Cover
325394009/0
29
Right Cover
325207149/0
30
Left Cover
325207150/0
31
Screw
112735403/0
32
Right Angular
325207138/0
33
Left Angular
325207139/0
34
Cap
325120232/0
35
Outfit, Screws
Innehåller S + T
382180038/1
41
Hooking Clamp
325774315/0
42
Clamp
325755031/0
43
Pin
125510080/0
44
Nut
112292102/0
45
Brake Spring
125430210/0
46
Screw
112735122/0
51
Grassc.Full Micro Protection Tcj-F
125600041/0
52
Grasscatcher Micro Prot Cover
125600042/0
53
Full Grassc. Microswtich Cover
125318124/0
54
Pin
112400030/0
55
Screw
112728510/0
56
Grassc.Full Micro Protection Tc 2000
125600047/0
57
Empty Micro Grassc.Protection Cover
125600048/0
58
Screw
112728450/0
61
Support
382774245/0
62
Screw
112793102/0
63
Washer
112523060/0
64
Nut
112293201/0
71
Axle
382000507/0
72
Grasscatcher Lifting Axle Clam
325774317/0
73
Screw
112815210/0
74
Nut
112154510/0
75
Actuator
118001000/0
76
Pin
125510083/0
77
Benzing Ring
112000955/0
78
Actuator Support
325785197/0
79
Protection
325600060/0
80
Screw
112727795/0
81
Nut
112154330/0
82
Stiffening
382650209/0
83
Support
382785147/0
84
Roll
125690001/0
85
Benzing Ring
112000956/0
86
Screw
112818690/0
87
Nut
112293201/0
88
Pin
125510083/0
89
Benzing Ring
112000955/0
