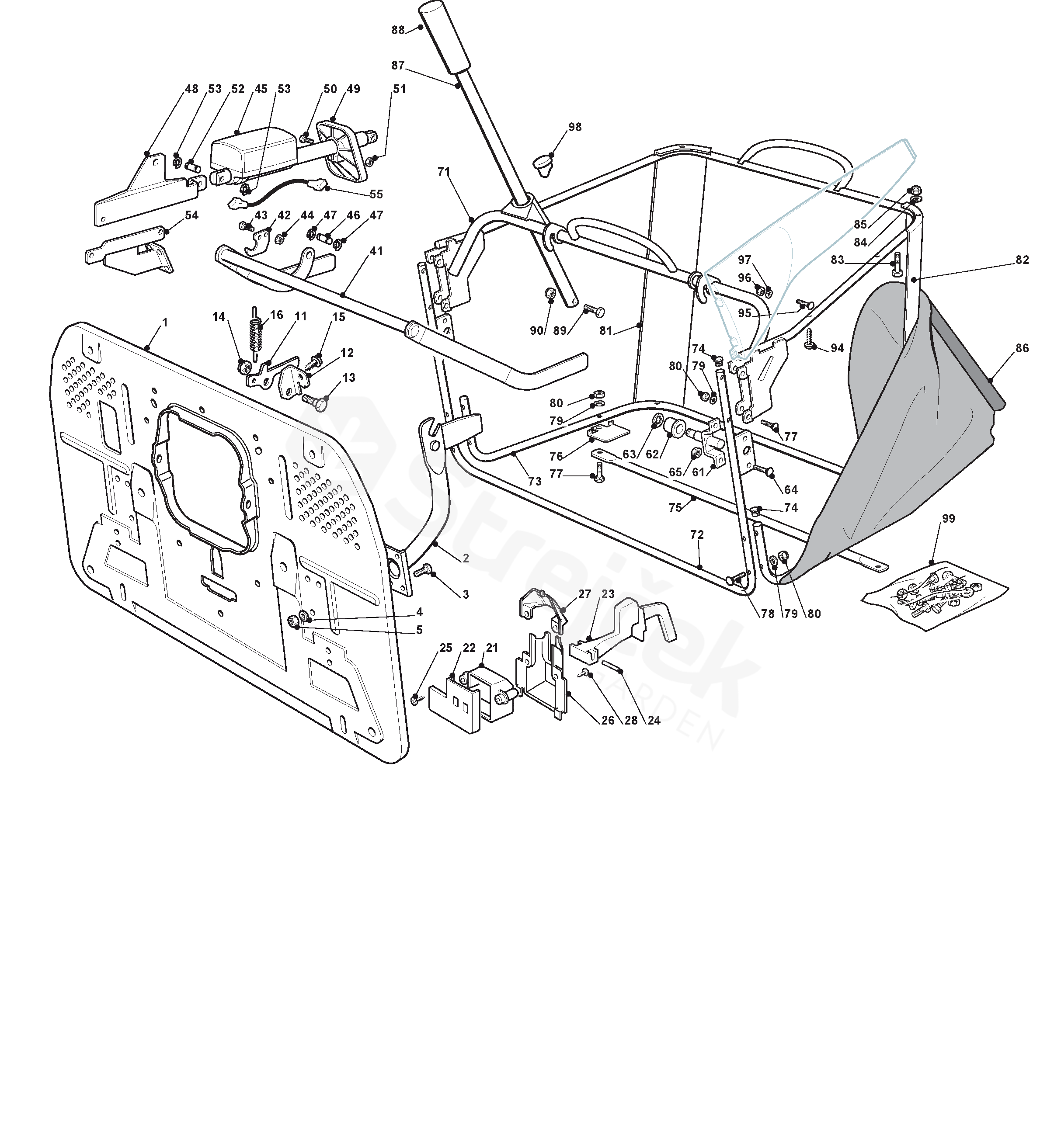

ESTATE ROYAL E ESTATE ROYAL E (2008) [13-2559-13]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ESTATE ROYAL E (2008) [13-2559-13]

1	Plate	382547039/0
2	Support	382774245/0
3	Screw	112793102/0
4	Washer	112523060/0
5	Nut	112293201/0
11	Clamp	325774417/0
12	Clamp	325755031/0
13	Pin	125510080/0
14	Nut	112292102/0
15	Screw	112735122/0
16	Clutch Spring	127430579/0
21	Grassc.Full Micro Protection Tcj-F	125600041/0
22	Grasscatcher Micro Prot Cover	125600042/0
23	Full Grassc. Microswtich Cover	125318124/0
24	Pin	112400030/0
25	Screw	112728510/0
26	Grassc.Full Micro Protection Tc 2000	125600047/0
27	Empty Micro Grassc.Protection Cover	125600048/0
28	Screw	112728450/0
41	Axle	382000507/0
42	Grasscatcher Lifting Axle Clam	325774317/0
43	Screw	112815210/0
44	Nut	112154510/0
45	Actuator	118001000/0
46	Pin	125510083/0
47	Benzing Ring	112000955/0
48	Actuator Support	325785197/0
49	Protection	325600060/0
50	Screw	112727795/0
51	Nut	112154330/0
52	Pin	125510083/0
53	Benzing Ring	112000955/0
54	Stiffening	382650209/0
55	Connecting Cable	125065030/0
61	Support	382785147/0
62	Roll	125690001/0
63	Benzing Ring	112000956/0
64	Screw	112818690/0
65	Nut	112293201/0
71	Upper Frame	382800079/1
72	Front Grassbox Frame	382800089/0
73	Lower Grassbox Frame	325800017/0
74	Polyethylene Push Road D=20inch	118566112/0
75	Lower Stiffening	382650043/0
76	Plate	325547131/0
77	Screw	112815220/0
78	Screw	112815245/0
79	Washer	112521330/0
80	Nut	112154510/0
81	Right Angular Support	325032013/0
82	Left Angular Support	325032015/0
83	Screw	112689500/0
84	Washer	112521330/0
85	Nut	112154510/0
86	Grasscatcher	182105980/0
87	Grasscatcher Lifting Tube	125869029/1
88	Knob	125394508/0
89	Screw	112674550/0
90	Nut	112154510/0
94	Screw	112735410/0
95	Screw	112815220/0
96	Washer	112521330/0
97	Nut	112154510/0
98	Cap	325120232/0
99	Screw	382180038/2
