Spare parts > STIGA > Lawn Tractor > ESTATE PRO 9102 XWS ESTATE PRO 9102 XWS (2015) > Seat & Steering Wheel
Back to

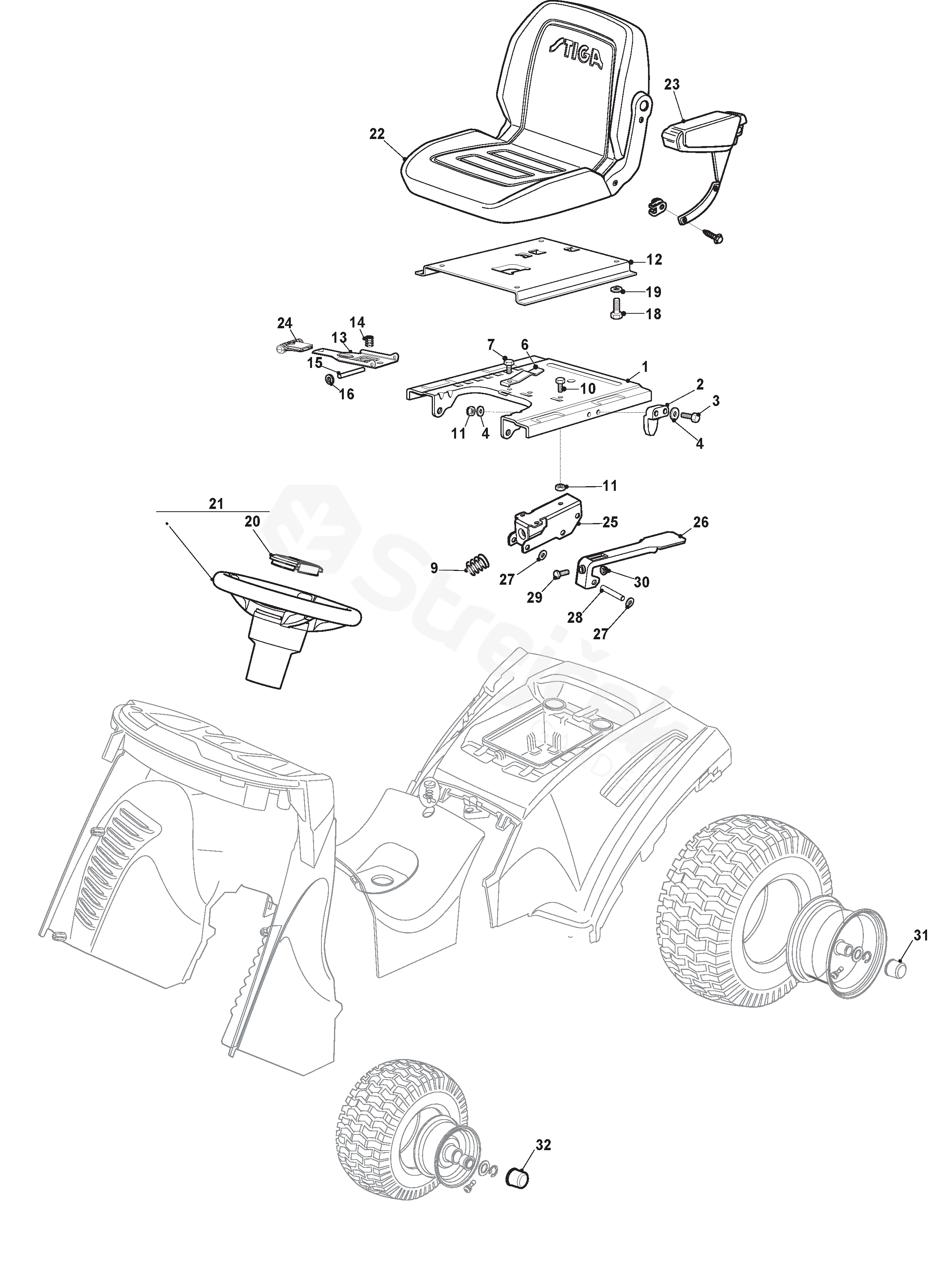

Seat & Steering Wheel
ESTATE PRO 9102 XWS ESTATE PRO 9102 XWS (2015)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ESTATE PRO 9102 XWS (2015)
1 Fixed Seat Support
From 01-September-2017 		382785301/0
2 Seat Switch Cam 325060049/0
3 Screw 112815050/0
4 Washer 112521320/0
6 Spring 125430203/1
7 Screw 112731580/0
9 Spring
From 01-September-2017 		125430291/0
10 Screw 112735661/0
11 Nut 112154330/0
12 Seat Support 325785147/2
13 Stop Lever 325318303/0
14 Spring 125430202/1
15 Pin 125510000/0
16 Elastic Washer 112604897/0
18 Screw 112793102/0
19 Grower 112583500/0
20 Steering Plate Cover 325580508/0
21 Steering wheel 325961222/1
22 Seat
From 01-September-2017 23 		125722480/0
23 Arm Rest Kit
From 01-September-2017 		387185100/0
24 Knob 322394505/0
25 Fulcrum Clamp 325774575/0
26 Lever
From 01-September-2017 		325318327/0
27 Crown Fastener 112604896/0
28 Pin 122517866/0
29 Screw 112735661/0
30 Nut 112154510/0
31 Hub Cover 322110239/0
