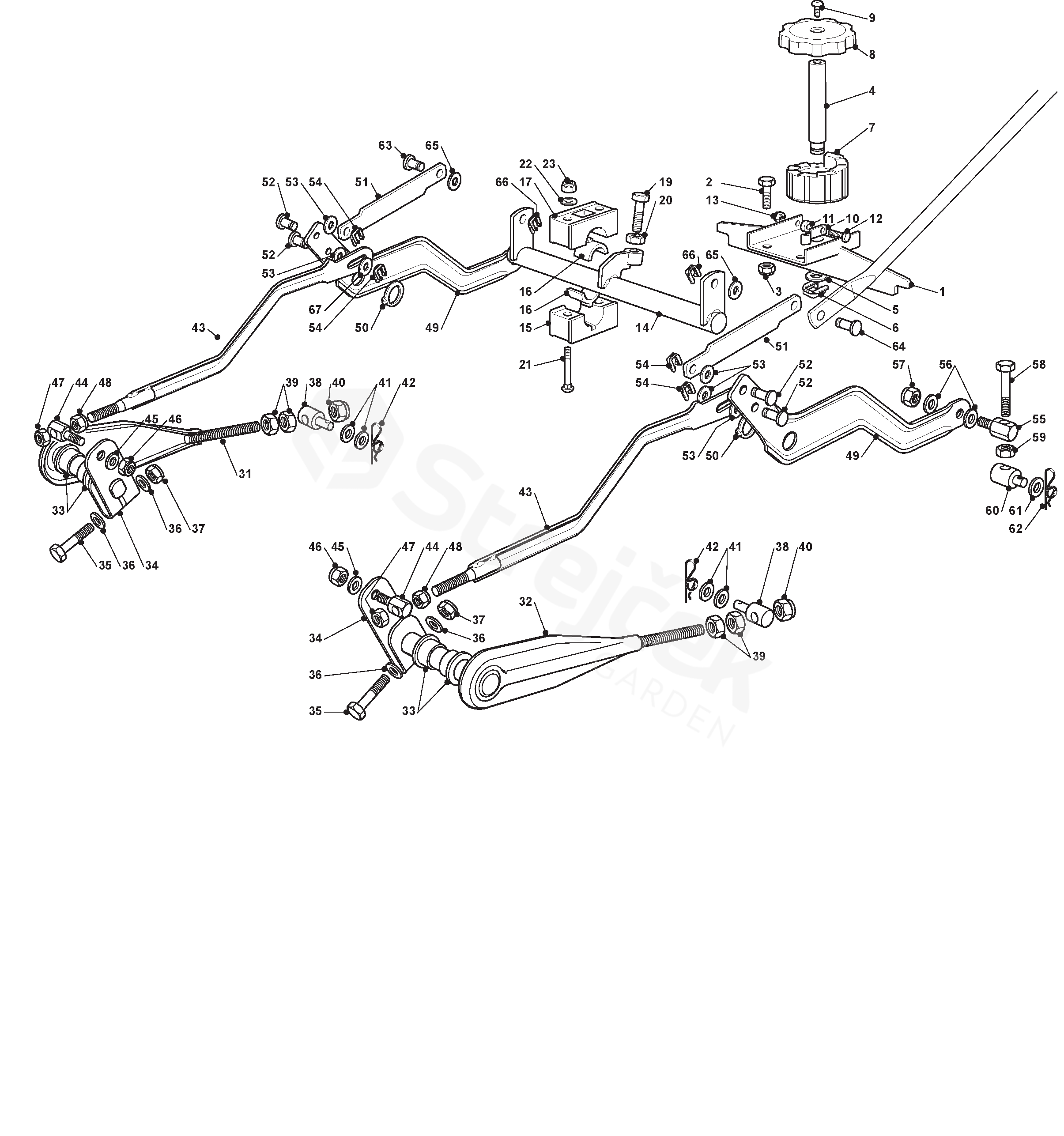

ESTATE PRO 9102 XWSY ESTATE PRO 9102 XWSY (2020) [2T1430381/ST1P]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ESTATE PRO 9102 XWSY (2020) [2T1430381/ST1P]

1	Bracket	382785181/2
2	Screw	112818690/0
3	Nut	112293201/0
4	Axle	125520009/0
5	Antifriction Washer	322672151/0
6	Plate	112436030/0
7	Cam	325060037/0
8	Knob	325394530/0
9	Screw	112760600/0
10	Spring	325430267/0
11	Spacer	122170600/0
12	Screw	112789195/0
13	Nut	112154320/0
14	Axle	382000615/0
15	Support	325785355/0
16	Brass	325034003/0
17	Support	325785354/0
19	Screw	125943005/0
20	Nut	112295200/0
21	Screw	112815271/0
22	Washer	112523040/0
23	Nut	112154510/0
31	Front Right Fulcrum Lever	382318155/0
32	Left fulcrum	382318157/0
33	Bushing	125040605/0
34	Lever	325318161/0
35	Screw	112691700/0
36	Washer	112521350/0
37	Nut	112155000/0
38	Pin	125510069/1
40	Nut	112156602/0
41	Washer	325670008/1
42	Cotter Pin	124487998/0
43	Connecting Rod Assy	382000477/2
44	Pin	125510055/1
48	Nut	112293200/0
49	Rear Lever	325318153/1
50	Seeger	112609255/0
51	Gearshift	325318223/0
52	Pin	125510117/0
53	Antifriction Washer	325670011/0
54	Plate	112436050/0
55	Pin	125510056/0
58	Screw	112794985/0
60	Pin	125510070/0
61	Washer	112523090/0
64	Pin	125510048/1
