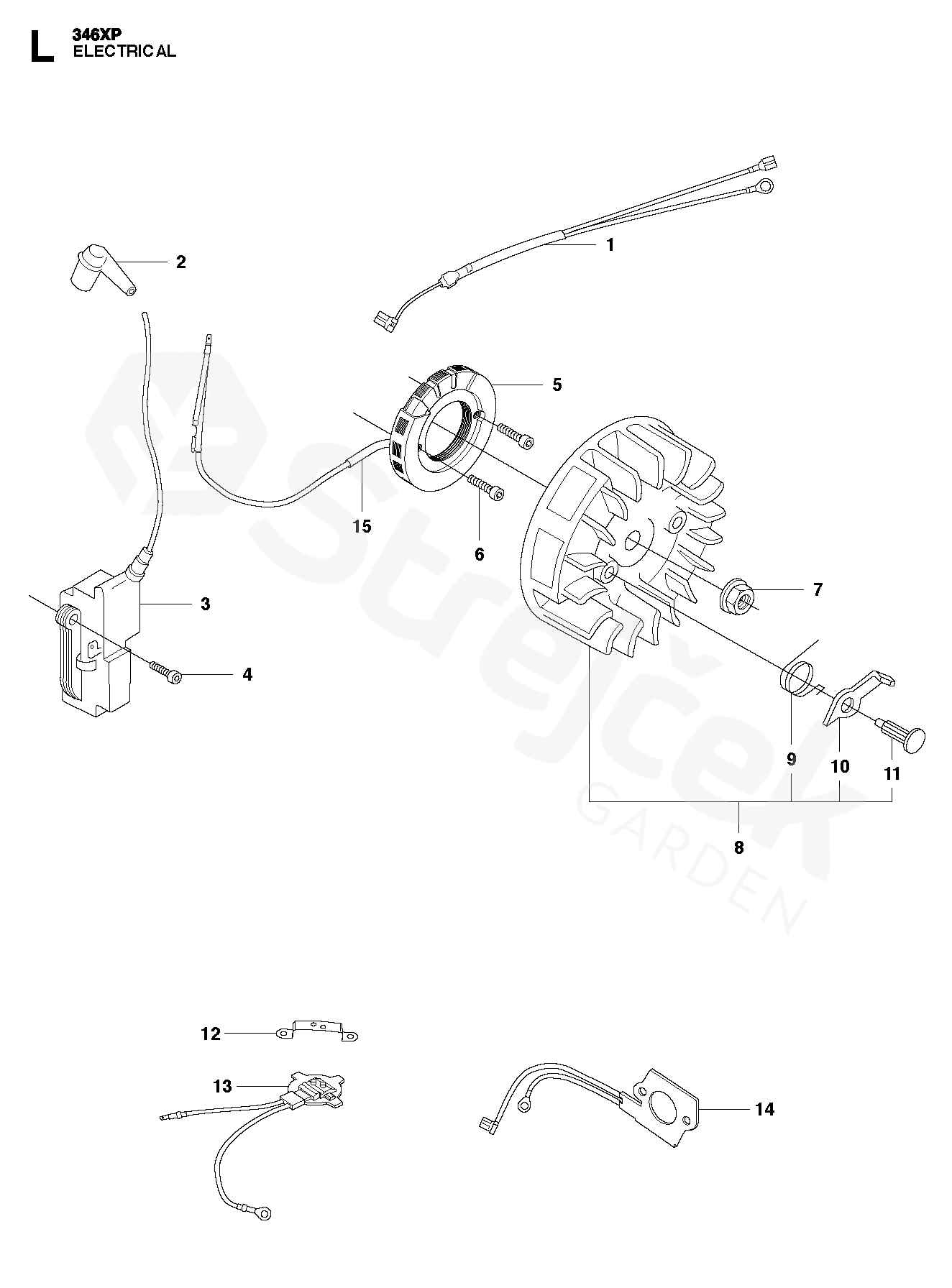

Spare parts > Husqvarna > CHAIN SAWS > 346 XP 346 XP, from 2015-07 - > ELECTRICAL
Back to
ELECTRICAL
346 XP 346 XP, from 2015-07 -
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 346 XP, from 2015-07 -
1 WIRING ASSY
XPG/G 		503898704
2 BOTKA ZAPALOVACÍ SVÍČKY
compl 		501485402
3 IGNITION MODULE 346XP New Edition
346XP New Edition 		510115501
4 SCREW IHSCT 503215525
5 GENERATOR STATOR
XPG/G, Heated carb 		502609601
6 SCREW IHSCM 503202516
7 MATICE 503220401
8 FLYWHEEL XPG/G, Heated carb
XPG/G, Heated carb 		503824305
9 SPRING
XPG/G, Heated carb 		503783201
10 STARTER PAWL
XPG/G, Heated carb 		503895001
11 RIVET
XPG/G, Heated carb 		503790502
12 RETAINER
XPG/G, Heated carb 		537060402
13 THERMOSTAT ASSY
XPG/G, Heated carb 		501986301
14 HEATING PLATE
XPG/G, Heated carb 		504043201
15 CABLE COVER
XPG/G, Heated carb 		504043501
