Spare parts > STIGA > Lawn Tractor > TRACTOR 10/30 TRACTOR 10/30 (1993) > Electrical System
Back to

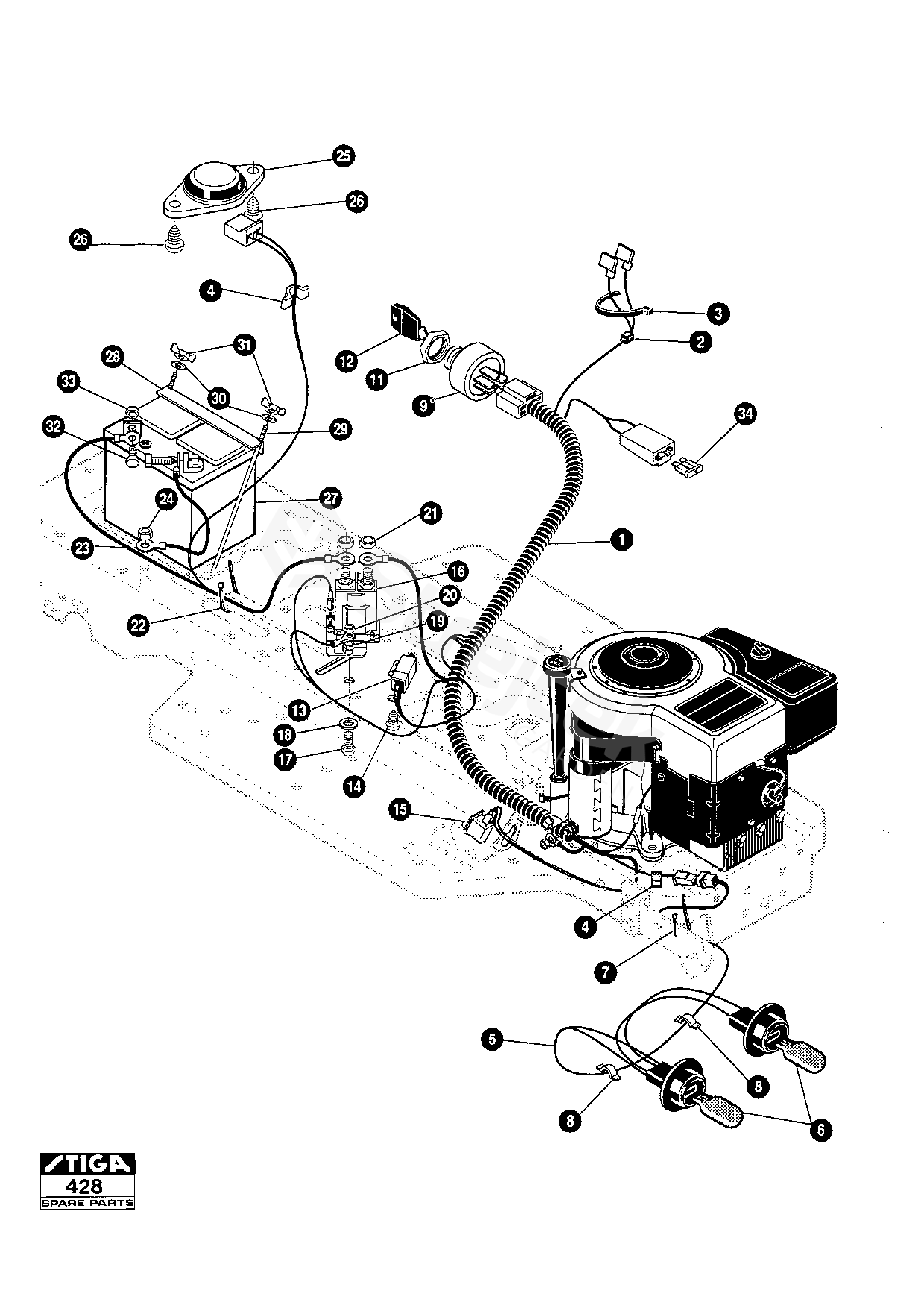

Electrical System
TRACTOR 10/30 TRACTOR 10/30 (1993)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TRACTOR 10/30 (1993)
1 Harness 1133-0624-01
2 Splicer 1133-0627-01
3 Wire Tie 1133-0220-01
4 Press clip 1133-0074-01
5 Lead Wire,Headlight 1133-0339-01
6 Bulb,Headlight 1133-0131-01
7 Wire Tie 1133-0220-01
8 Press clip 1133-0074-01
9 Switch Ignition & Light 1133-0755-01
11 Nut 1133-0812-01
12 Ignition Key 1133-0811-01
13 Switch 1133-0221-01
14 Screw 1133-0207-01
15 Switch 1133-0752-01
16 Solenoid 1133-0136-01
17 Screw 9988-3519-16
18 Washer 9693-0026-02
19 Nut 9743-3521-32
20 Nut 9795-3531-02
21 Nut 9794-5131-02
22 Wire Tie 1133-0220-01
23 Ground wire 1133-0152-01
24 Nut 9795-3631-02
25 Seat switch 1133-0603-01
26 Screw 1133-0273-01
27 Battery 1134-3205-01
28 Battery Bracket 1133-0718-01
29 Battery Rod 1133-0067-01
30 Washer 9699-0026-02
31 Wing Nut 1133-0729-01
32 Screw 9988-3516-16
33 Nut 9795-3531-02
34 Fuse 1133-0418-01
