Spare parts > STIGA > Lawn Tractor > TRACTOR 12/39 4WS TRACTOR 12/39 4WS (1993) > Front Wheel Steering
Back to

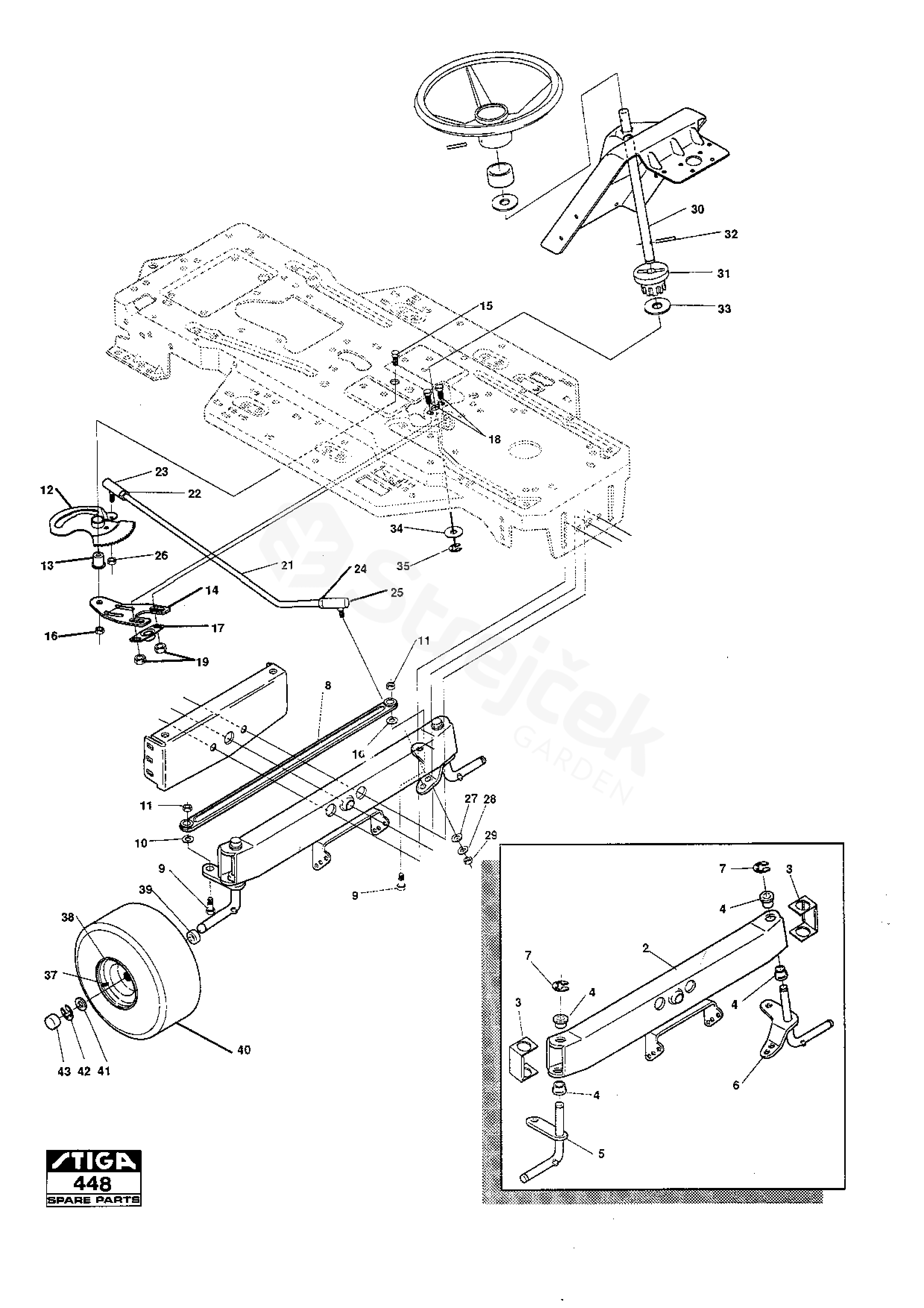

Front Wheel Steering
TRACTOR 12/39 4WS TRACTOR 12/39 4WS (1993)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TRACTOR 12/39 4WS (1993)
2 Front Axle 1133-0284-01
3 Axle cover 1133-0478-01
4 Bearing,Front Spindle 1133-0130-01
5 Front Spindle R.H. 1133-0333-01
6 Spindle L.H. 1133-0577-01
7 Retaining ring 1132-0021-01
8 Tie Rod 1133-0350-01
9 Screw 9988-3745-12
10 Washer 9683-0035-02
11 Nut 9795-3731-02
12 Sector gear 1133-0547-01
13 Bushing 1133-0546-01
14 Sector gear support 1133-0550-01
15 Screw 1133-0565-01
16 Nut 9743-5421-32
17 Flange Bearing 1133-0483-01
18 Screw 1133-0714-01
19 Nut 9743-5121-02
21 Drag link 1133-0620-01
22 Nut 9743-3721-32
23 Ball Joint 1133-0195-01
24 Nut 9743-5321-32
25 Ball Joint 1133-0490-01
26 Nut 9743-5221-32
27 Washer 9699-0038-02
28 Washer 9683-0045-02
29 Nut 9743-5321-32
30 Steering Shaft 1133-0551-01
31 Pinion Steering 1133-0482-01
32 Dowel pin 1133-0484-01
33 Flat washer 1133-0564-01
34 Flat washer 1133-0010-01
35 Retaining ring 1132-0022-01
37 Valve Assy. 9545-0500-00
38 Wheel Hub Assy 1133-0064-01
39 Bearing 1133-0066-01
40 Tire
15 x 6.00-6 		1133-0416-01
41 Flat washer 1133-0599-01
42 Retaining ring 1132-0021-01
43 Hub Cap 1133-0069-01
