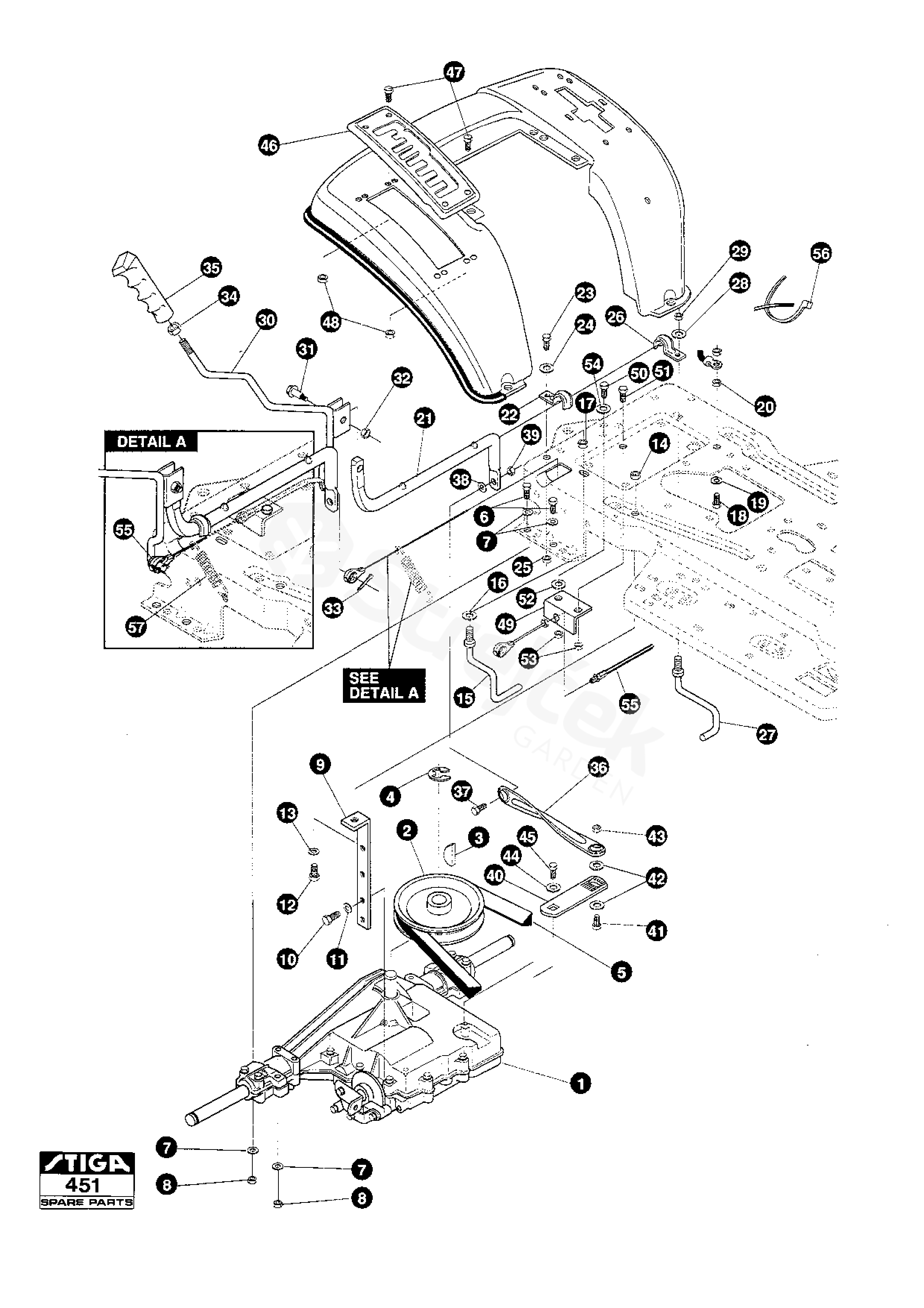

TRACTOR 12/39 4WS TRACTOR 12/39 4WS (1993)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For TRACTOR 12/39 4WS (1993)

1	Transaxle Foote 4360-29	1133-0556-01
2	Belt Pulley	1133-0491-01
3	Key	9600-0050-00
4	Circlip	9650-0016-04
5	V-Belt L = 87.25"	1133-0554-01
6	Screw	9988-3664-12
7	Washer	9699-0028-02
8	Nut	9743-3621-32
9	Stabilizer bracket	1133-0628-01
10	Screw	1133-0057-01
11	Washer	9683-0030-02
12	Screw	9988-3625-16
13	Washer	9699-0028-02
14	Nut	9743-3621-32
15	Belt Guide	1133-0558-01
16	Washer	9683-0030-02
17	Nut	9743-3621-32
18	Screw	9988-3619-16
19	Washer	9683-0030-02
20	Nut	9743-3621-32
21	Shift lever	1133-0679-01
22	Clip	1133-0516-01
23	Screw	9988-3619-16
24	Washer	9699-0030-02
25	Nut	9743-3621-32
26	Clip	1133-0516-01
27	Belt Guide	1133-0208-01
28	Washer	9699-0030-02
29	Nut	9743-3621-32
30	Shift lever	1133-0683-01
31	Bolt	1133-0686-01
32	Nut	9743-3521-32
33	Split pin	9599-0070-02
34	Nut	9795-3731-02
35	Handle	1133-0650-01
36	Shifter Rod	1133-0677-01
37	Screw	9988-3732-12
38	Washer	9683-0035-02
39	Nut	9743-3721-32
40	Shift Bracket	1133-0509-01
41	Screw	9988-3732-12
42	Washer	9699-0035-02
43	Nut	9743-3721-32
44	Washer	9699-0060-02
45	Screw	9987-5016-16
46	Shift quadrant	1133-0681-01
47	Screw	1133-0649-01
48	Nut	9743-3521-32
49	Frame bracket	1133-0698-01
50	Screw	9988-3525-16
51	Screw	9899-3516-16
52	Spacer	1133-0676-01
53	Nut	9743-3521-32
54	Washer	9699-0026-02
55	Cable	1133-0680-01
56	Wire Tie	1133-0220-01
57	Memory spring	1133-0673-01
