STIGA
>
Lawn Tractor
>
ESTATE BASIC ESTATE BASIC (2008) [13-2570-13]
>
Cutting Plate
Back to
ESTATE BASIC
ESTATE BASIC (2008) [13-2570-13]

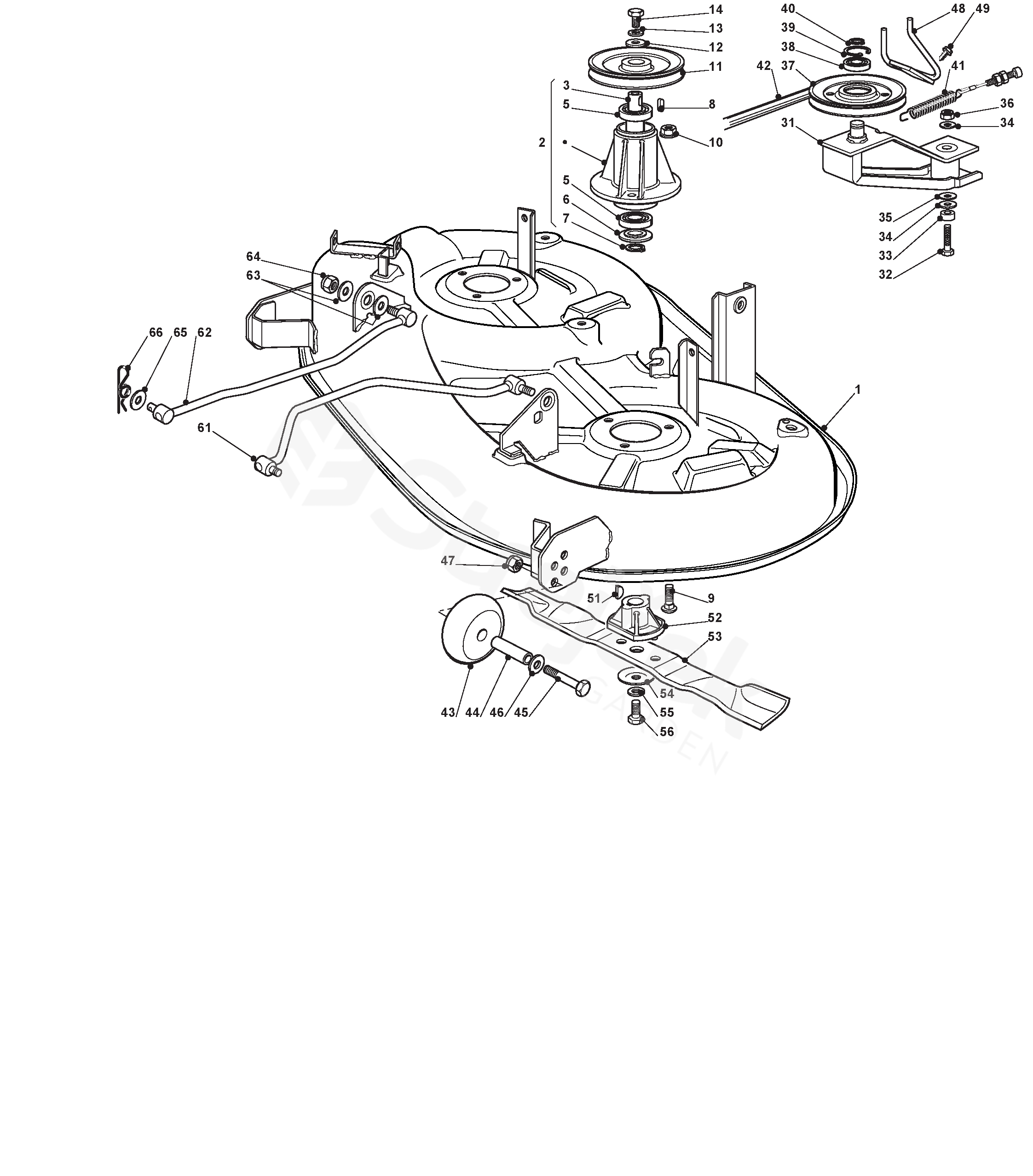

Cutting Plate
ESTATE BASIC
ESTATE BASIC (2008) [13-2570-13]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
ESTATE BASIC (2008) [13-2570-13]
1
Cutting Plate Black
382564083/0
2
Left Flange Ass.Y
382207202/0
3
Shaft
125020802/0
5
Bearing
119216032/0
6
Dust Cover Disc
325160501/0
7
Seeger
112609260/0
8
Feather
112139480/0
9
Screw
112818700/0
10
Nut
112154210/0
11
Pulley
125601571/0
12
Washer
125670007/0
13
Grower
112583500/0
14
Screw
112793102/0
31
Lever
382318141/2
32
Screw
112691900/0
33
Washer
125160041/0
34
Washer
112523070/0
35
Antifriction Washer
322672152/0
36
Nut
112155000/0
37
Pulley
125601587/0
38
Bearing
119216033/1
39
Seeger
112610800/0
40
Seeger
112609200/0
41
Wire
382004619/0
42
Trapezoidal Belt
135061503/0
43
Anti Scalp Wheel Ø 80
182700002/0
44
Pin
125510072/0
45
Screw
112692050/0
46
Washer
112523060/0
47
Nut
112293201/0
48
Belt Guide
125270311/1
49
Screw
From 01-September-2003
112729601/1
51
Key
112139100/0
52
Blade Holder
125463200/0
53
Left Blade, Mulching
182004346/0
54
Elastic Disc
122160400/0
55
Washer
112523080/0
56
Screw
112735694/0
61
Equalizer Rod
382000535/0
62
Equalizer Rod
382000533/0
63
Washer
325670008/1
64
Nut
112156602/0
65
Washer
325670008/1
66
Cotter Pin
124487998/0
