Spare parts > Husqvarna > CHAIN SAWS > 346 XP TRIOBRAKE 346 XP TRIOBRAKE, 2008-09 > CHAIN BRAKE & CLUTCH COVER
Back to

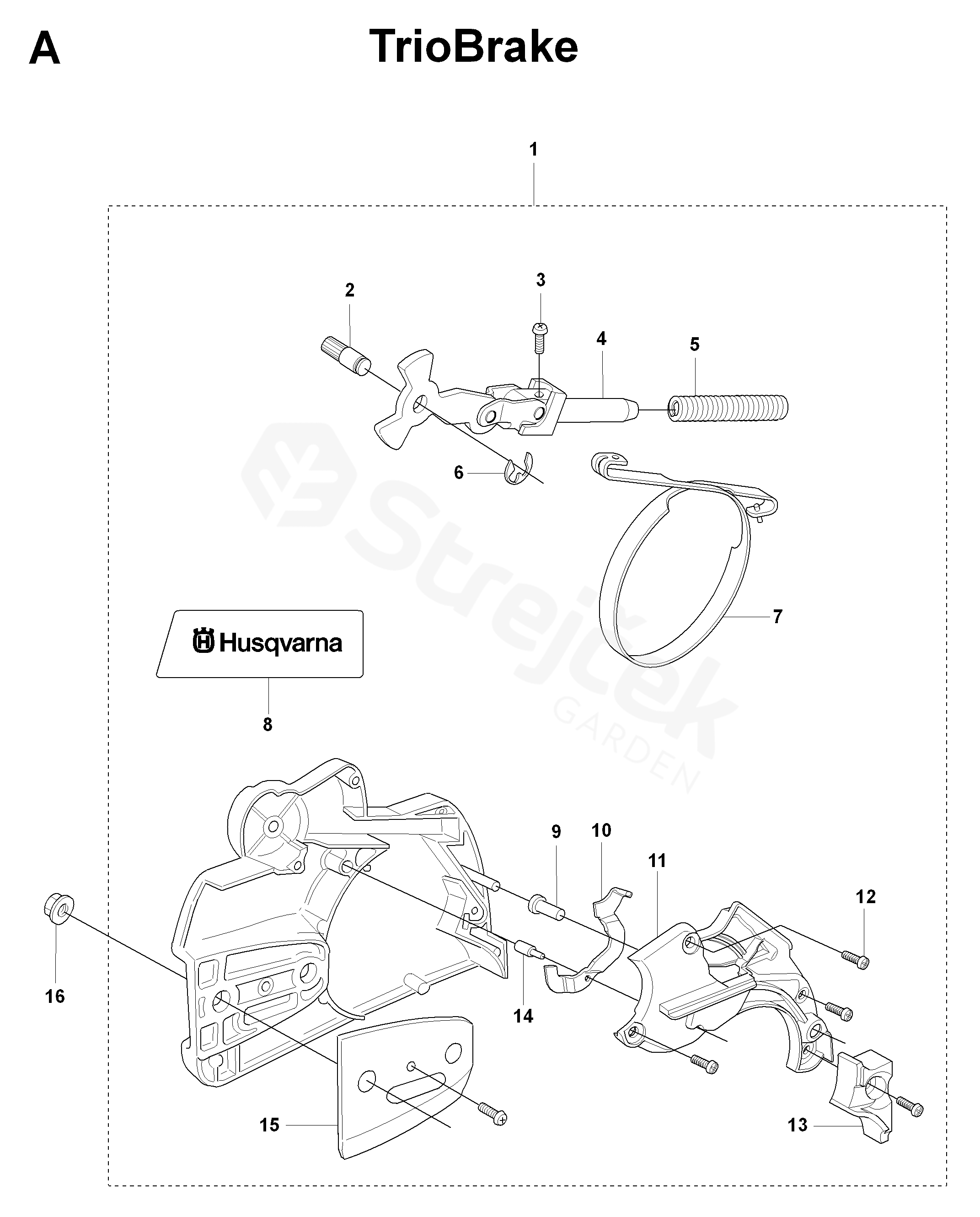

CHAIN BRAKE & CLUTCH COVER
346 XP TRIOBRAKE 346 XP TRIOBRAKE, 2008-09
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 346 XP TRIOBRAKE, 2008-09
1 CHAIN BRAKE 537107805
2 PIN KNEE-JOINT 503892901
3 SCREW CCRPANT 503217010
4 KLOUBOVÝ SPOJ KOMPL. 503890802
5 BRAKE SPRING 503465901
6 E-CLIP 735310820
7 BRAKE BAND ASSY 537043002
8 LABEL 537370401
9 GUIDE BUSHING 503855201
10 LEVER 537057901
11 HUB CAP 537058001
12 SCREW CCRPANT 503217010
13 OCHRANA PROTI OPOTŘEBENÍ 537089001
14 PIN KNEE-JOINT 503751802
15 COVER PLATE 503856601
16 HEXAGON NUT 503220001
