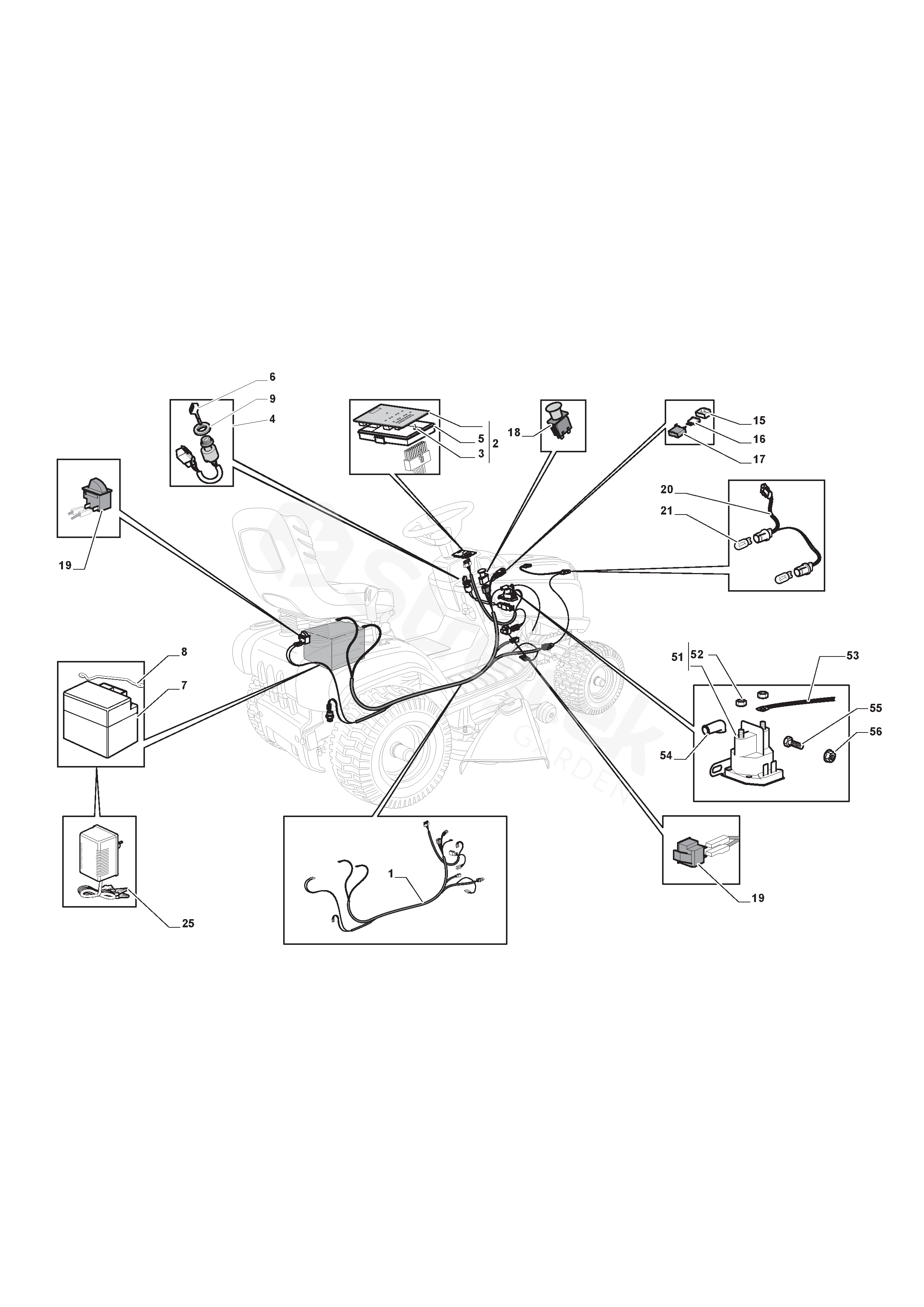

Spare parts > STIGA > Lawn Tractor > SD 9813 SD 9813 (2009) > Electrical Parts
Back to
Electrical Parts
SD 9813 SD 9813 (2009)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SD 9813 (2009)
1 Cables Ass.Y
From 01-September-2014;(for Mechanical Models) 		182040195/0
2 Electronic Card
From 01-September-2015 		382722443/1
3 Screw 112735101/0
4 Starting Switch
From 01-September-2014 		118450075/1
5 Card Protection
From 01-September-2015 		325600080/1
6 Starting Key 118210023/0
7 Battery 118120002/1
8 Spring 125430265/1
9 Screwed Ring 118400863/0
15 Cover 133215000/0
16 Fuse 10 A 133340040/0
17 Fuse carrier 133500007/0
18 Clutch Switch 118450074/0
19 Microswitch 119410613/0
21 Lamp For Lights 118459100/0
25 Battery Charger 12V 1A - CE Plugg
CE plugg 		182180090/0
51 Solenoid 118736112/0
52 Nut 112361005/0
53 Cable 125065002/0
54 Protection 118564864/1
55 Screw 112790781/0
56 Nut 112154510/0
