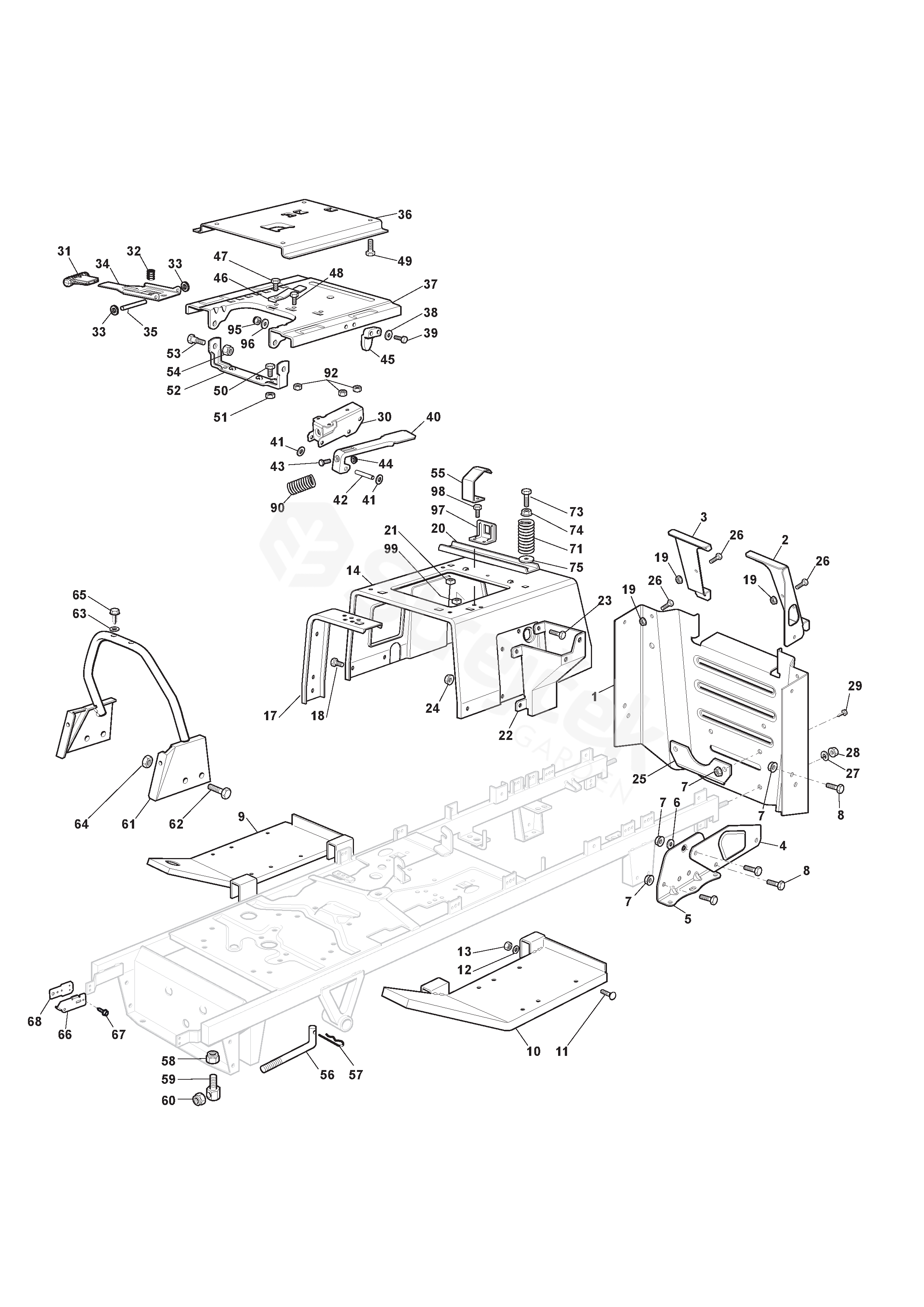

Spare parts - Partlist - TORNADO 7118 HWS TORNADO 7118 HWS (2017) - Chassis

Everything for your machines

TORNADO 7118 HWS TORNADO 7118 HWS (2017)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For TORNADO 7118 HWS (2017)

1	Rear Plate	382547103/0
2	Left Bracket	325774683/0
3	Right Bracket	325774681/0
4	Bracket	382774299/0
5	Transmission Bracket	325774675/0
6	Washer	112523060/0
7	Nut	112154210/0
8	Screw	112793102/0
9	Right Footboard Support	382510041/2
10	Left Footboard Support	382510043/2
11	Screw	112815245/0
12	Washer	112523040/0
13	Nut	112154510/0
14	Seat Support	325785133/5
17	Pulley Stiffening	325650065/1
18	Screw	112791200/1
19	Nut	112292102/0
20	Pulley Stiffening	325650067/1
21	Nut	112360420/0
22	Support	325785137/1
25	Towing Plate	1134-5512-01
26	Screw	112791213/1
27	Washer	112585100/0
28	Nut	112295200/0
29	Screw	9959-0820-16
30	Fulcrum Clamp	325774575/0
31	Knob	322394505/0
32	Spring	125430202/1
33	Elastic Washer	112604897/0
34	Stop Lever	325318303/0
35	Pin	125510000/0
36	Seat Support	325785147/2
37	Fixed Seat Support	382785301/0
38	Washer	112521320/0
39	Screw	112815050/0
40	Lever	382318315/0
41	Crown Fastener	112604896/0
42	Pin	122517866/0
43	Screw	112735661/0
45	Seat Switch Cam	325060049/0
46	Spring	125430203/1
47	Screw	112731580/0
48	Screw	112789000/0
50	Screw	112792611/0
51	Nut	112293201/0
52	Seat Clamp Support	382774305/0
53	Pin	122524970/3
54	Nut	112155010/0
55	Spring	325430255/0
56	Tie Rod	125510119/0
57	Cotter Pin	124487997/0
58	Nut	112155000/0
59	Pin	125510040/2
61	Chassis	382650045/0
63	Washer	112521330/0
65	Screw	112731350/0
66	Bracket Only for TNS Bonnet	325774689/0
67	Screw	112815200/0
68	Fixed Bonnet Fulcrum Bracket Only for TNS Bonnet	325774691/2
71	Spring	125430205/1
72	Hood	325737002/0
73	Screw	125943001/1
74	Nut	112154220/0
75	Washer	112523070/0
90	Spring	125430291/0
92	Nut	112154330/0
97	Bracket	325755025/3
99	Nut	9739-0531-22
