Spare parts > STIGA > Lawn Tractor > TORNADO 7121 HWSY TORNADO 7121 HWSY (2020) > Frame
Back to

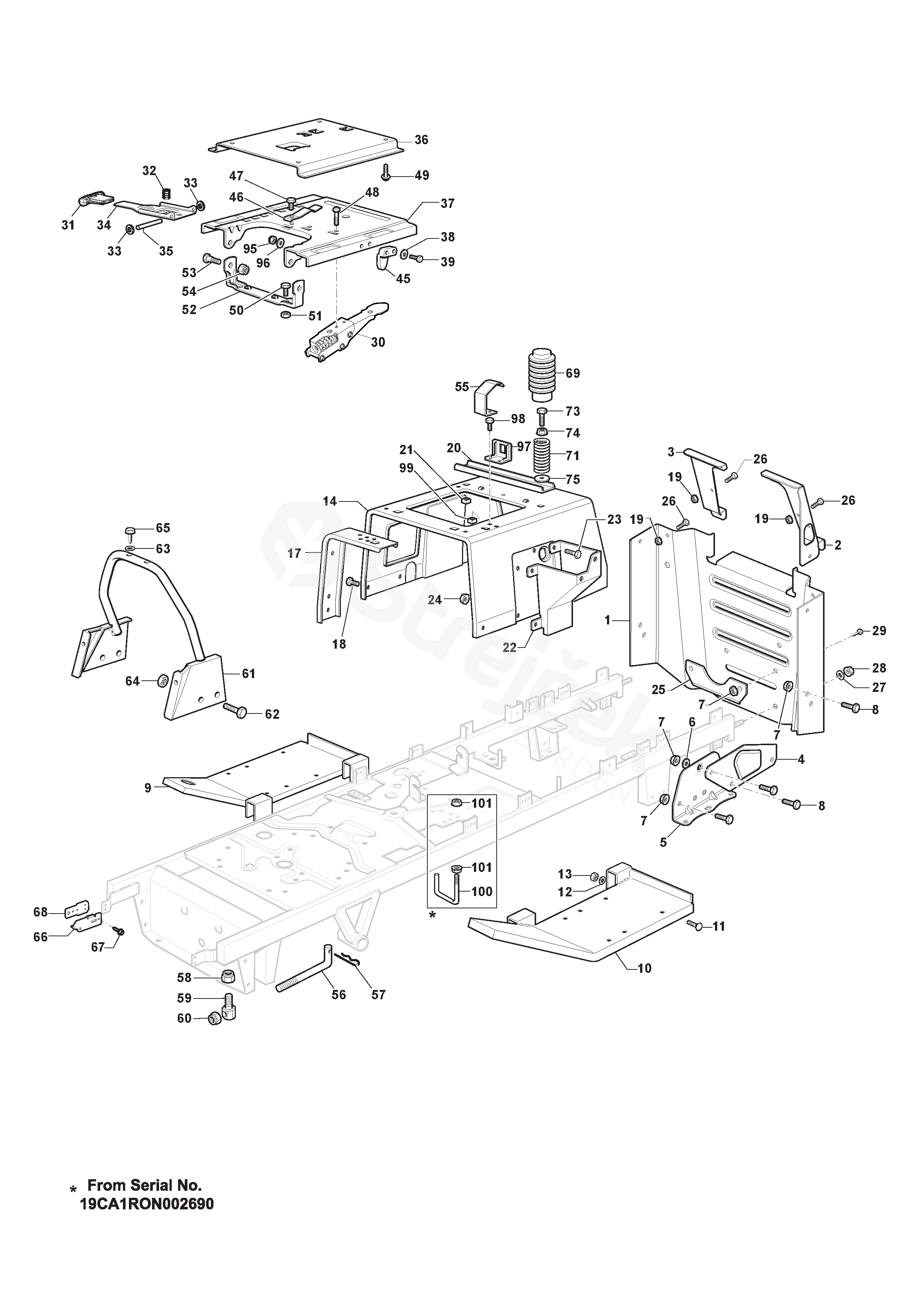

Frame
TORNADO 7121 HWSY TORNADO 7121 HWSY (2020)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TORNADO 7121 HWSY (2020)
1 Rear Plate 382547103/0
2 Left Bracket 325774683/0
3 Right Bracket 325774681/0
4 Bracket 382774299/0
5 Transmission Bracket 325774675/0
6 Washer 112523060/0
7 Nut 112154210/0
8 Screw 112793102/0
9 Right Footboard Support 382510041/2
10 Left Footboard  Support 382510043/2
11 Screw 112815245/0
12 Washer 112523040/0
13 Nut 112154510/0
14 Seat Support 325785133/5
17 Pulley Stiffening 325650065/1
18 Screw 112791200/1
20 Pulley Stiffening 325650067/1
21 Nut 112360420/0
22 Support 325785137/1
25 Towing Plate 1134-5512-01
26 Screw 112791213/1
27 Washer 112585100/0
28 Nut 112295200/0
29 Screw 9959-0820-16
30 OPC Spring and Lever Assy 382318316/1
31 Knob 322394505/0
32 Spring 125430202/1
33 Elastic Washer 112604897/0
34 Stop Lever 325318303/0
35 Pin 125510000/0
36 Seat Support 325785147/2
37 Fixed Seat Support 382785301/0
38 Washer 112521320/0
39 Screw 112815050/0
45 Seat Switch Cam 325060049/0
46 Spring 125430203/1
47 Screw 112731580/0
48 Screw 112735661/0
50 Screw 112792611/0
51 Nut 112293201/0
52 Seat Clamp Support 382774305/0
53 Pin 122524970/3
54 Nut 112155010/0
55 Spring 325430255/0
56 Tie Rod
From 01/06/2020 only on steel forecarriage equalizer assy 		125510119/0
57 Cotter Pin
From 01/06/2020 only on steel forecarriage equalizer assy 		124487997/0
58 Nut
From 01/06/2020 only on steel forecarriage equalizer assy 		112155000/0
59 Pin
From 01/06/2020 only on steel forecarriage equalizer assy 		125510168/0
61 Chassis 382650045/0
63 Washer 112521330/0
65 Screw 112731350/0
66 Mobile Bonnet Fulcrum Bracket 325774689/1
67 Screw 112815200/0
68 Fixed Bonnet Fulcrum Bracket 325774691/2
69 Hood 325737002/0
71 Spring 125430205/1
73 Screw 125943001/1
74 Nut 112154220/0
75 Washer 112523070/0
95 Nut 112154330/0
97 Bracket 325755025/3
98 Screw 112789000/0
99 Nut 9739-0531-22
100 Belt Guide (Hydro) 125580019/1
101 Nut 112292102/0
